Sheet metal folder

RAS FLEXIbend 73.30

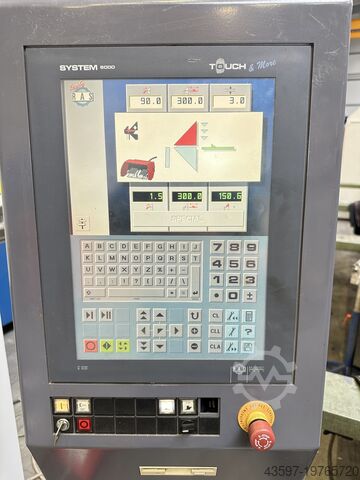

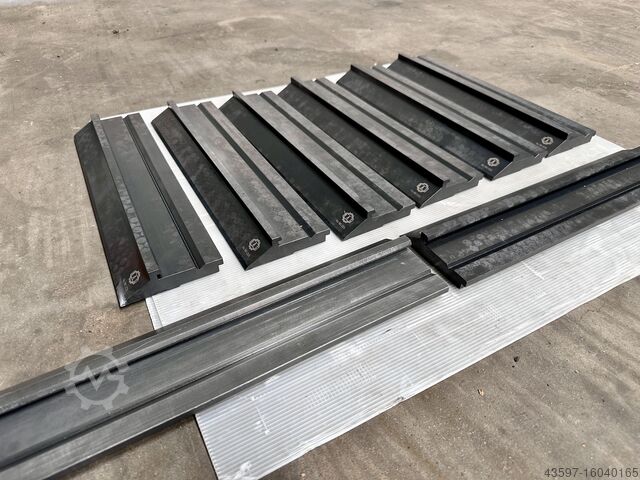

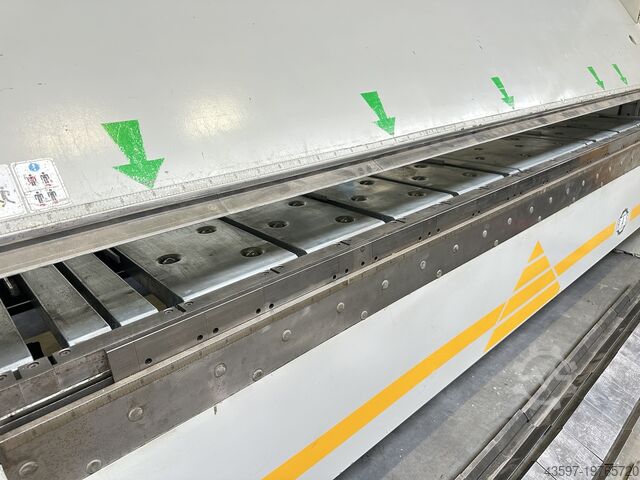

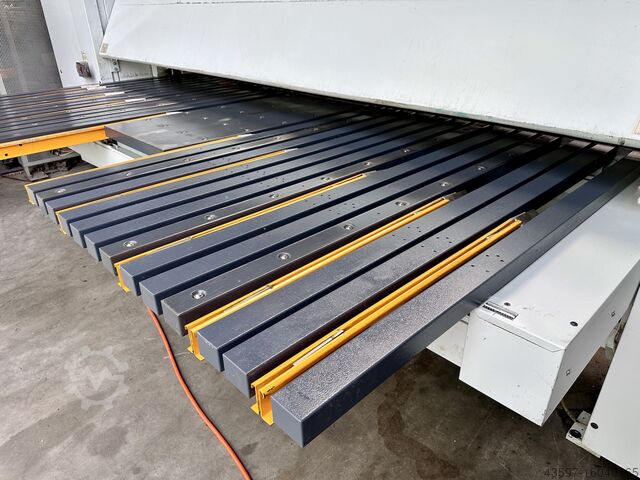

Condition: used, functionality: fully functional, Year of construction: 2003, FLEXIbend RAS 73.30 - General technical data in mm: Ibsdex Hx Slopfx Ac Hof Bending length: 3200 mm Maximum sheet thickness (400 N/mm²): 3.0 mm Maximum upper beam stroke: 300 mm Backgauge system (U gauge): 10-1550 mm Optional extension: (-3050) Machine dimensions (largest possible option): 4360 x 5220 mm Basic machine weight: 4400 kg - Machine-specific data: Motorized operation; 400V, 50/60 Hz, 3-phase Year of manufacture: 2003 Condition: Refurbished – very good used condition Complete tool set, with specific max. sheet thickness 2-person operation from the front Second foot switch for operation from the rear (incl. light barrier for working from behind) 15" CNC color graphic touchscreen control panel Touch&More CNC rear gauge and support system (10-1550) Backgauge system (standard): 10-1550 mm - Sample images -

Condition: good (used), Year of construction: 1991, Sheet width 2500 mm Sheet thickness 4 mm Cutting angle 1.49 ° Strokes per minute 40-80 Stand projection 200 mm Iedpfotq S T Njx Ac Hsbf Number of hold-down devices 13 pieces Backgauge - adjustable 5-1000 mm Table height 750 mm Oil capacity 85 l Air pressure - required 5 bar Machine weight approx. 3600 kg

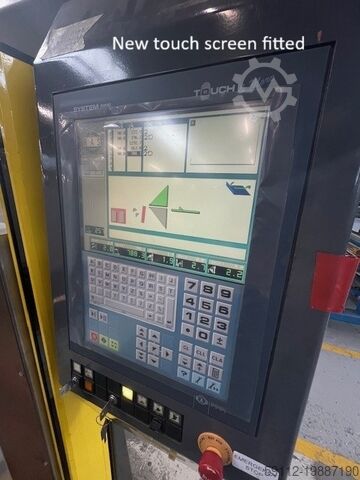

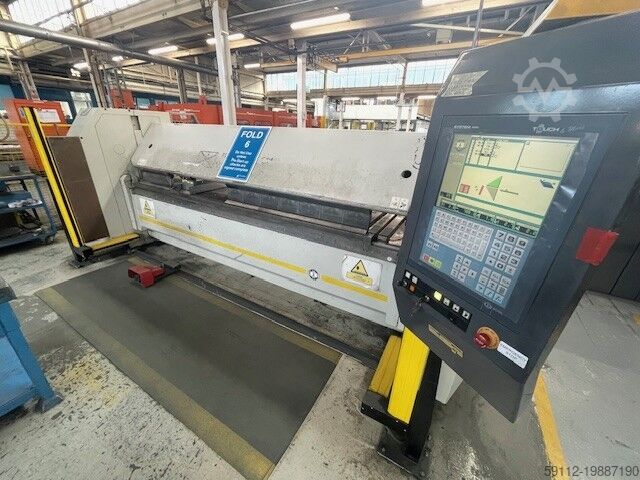

Condition: excellent (used), functionality: fully functional, Year of construction: 2003, control type: CNC control, actuation type: electric, controller model: System 6000, working width: 3,200 mm, type of crowning: CNC-controlled, sheet thickness (max.): 3 mm, sheet thickness steel (max.): 3 mm, back gauge: 3,000 mm, Equipment: CE marking, emergency stop, Used Ras Flexibend 73.30 Cnc Folding Machine For Sale with 3metre back gauge Motorized Swivel Bending Machine Make: RAS Model: Flexibend 73.30 Ibjdpjw T Sc Ajfx Ac Hef Year of Manufacture: 2003 Technical Specifications Manufacturer: RAS Model: 73.30 Year: 2003 Useful bending length: 3200 mm Sheet thickness: 3.0 mm Upper beam opening width: 300 mm CNC adjustable bending beam travel, max.: 80 mm CNC adjustable lower beam travel, max.: 80 mm Speeds: Bending beam, max.: 90 degrees/sec Upper beam, max.: 40 mm/sec Back gauge 10–1550 mm: 2 sec Equipment • Control: Touch & More System 6000 - NEW TOUCH SCREEN FITTED • CNC-controlled back gauge, 3metre J version / J shape back gauge • Motorized lower beam adjustment and bending beam adjustment • Support table A good selection of tooling, segmented and full length

Condition: new, Year of construction: 2025, For customers from the Baltic States only: Lithuania, Latvia, Estonia. Available models: Cidan F26 (2600 mm x 1.75 mm) F32 (3200 x 1.5 mm ) F41 (4100 x 1.2 mm) The CIDAN F metal bending machine is characterized by a strong stable frame, is fast and convenient to perform operations. Reinforced side frames ensure stable movement of the clamping and bending beams. The clamping beam operates with the help of an eccentric, which reduces wear of parts during movement to a minimum. This also ensures the best possible opening and closing speed. The eccentric drive eliminates the need for adjustment and parameter adjustment over a long period of time, which ensures a long service life of the clamping motor. During clamping, the eccentrics create a very high clamping force, which is a great advantage when performing double bending (stiffening edges). Software NULINK The control program is designed specifically for CIDAN bending machines, it is user-friendly, so even an inexperienced operator will find it convenient to navigate, program, check and easily design parts. Instructions, notes and tips for the user are presented with the help of interactive graphics. A large number of programs can be stored in the control memory. NULINK calculates the product layout and automatically creates the program. The prepared part is displayed with the actual folding sequence. As an option, you can also choose the OFFLINE add-on, thanks to which you can prepare drawings from a computer in the office. Iodjwd Emkspfx Ac Hobf Backrest EGS EGS is a 1020 mm long automatically adjustable backrest for bending machines. It is equipped with one servo motor and belt drives on both sides. It takes less than 2 seconds to obtain an exact position between 2 and 1020 mm. The support plates in the first row are made of spring steel as standard. With one press of the pedal, all supports can be lowered automatically, thus avoiding possible impact of the material when turning it on the worktable. As an option, you can choose another end support FLEXIBLE with a depth of 1550 mm - 4200 mm (more in the options section). Tools: upper clamping, lower and bending beams The bending machine has 3 types of beams: upper clamping, lower and bending. Each of them is equipped with a different type of tools. The upper beam tool consists of 3-4 segments, so only specific damaged segments can be replaced, avoiding greater time and financial costs. Upper beam tool parameters: 30° R1. The bending beam tools are available in three sizes: 7mm, 10mm and 15mm wide. The lower beam tools are sturdy and prevent any sensitive material from being scratched or deformed during clamping. Other tool sizes and types are also available (more in the options section). If you have any further questions, we are always happy to advise you by phone or invite you to see the machine in person.

Condition: used, sheet width 4080 mm plate thickness 2.0 mm ST thickness at "Niro-steel" 0.8 mm Sheet thickness for ALU 2.5 mm cutting angle 1.3 Grad no. of strokes 34 Hub/min distance between columns 4310 mm back stop - adjustable 15.0 - 750 mm table height 820 mm Control ELGO engine output 9.0 kW weight of the machine ca. 3600 kg. range L-W-H 5250 x 2200 x 1400 mm Good condition (!!) Current new price approx. €70,000 Special price upon request The MHSU motor-driven guillotine shear is based on a torsion-free, rigid welded construction and a dynamic, quiet, and powerful gear motor. High static and dynamic rigidity is ensured by robustly dimensioned main components such as the cutter bar, support table, side supports,and the main drive unit. The motor- driven guillotine shear was developed forsheet metal and plastics processing. With these shears, you can effortlessly produce clean cuts in series. Features: - NC robust, motorized swing cut guillotine shears - with ELGO NC control unit * Digital position display of the backgauge * Adjustable from the front right * With target/actual value input * Continuous adjustment across the entire travel range * Limit switch protection Iodexabc Ropfx Ac Hebf - NC motorized material/backgauge - Shatter-proof, torsion-free welded steel construction - Compact and clearly arranged machine design - Support table with recessed grips - 1x hold-down bar - 1x side stop with T-slot and scale - 3x front support arms - 1x freely movable foot switch - Operating instructions Optional accessories included: - Pneumatic sheet metal holding device for thin sheet metal blanks

Condition: used, Max. cutting length: 2540 mm Max. sheet thickness: 3 mm steel Manually adjustable rear stop up to 550 mm Isdpot T Hgbofx Ac Hobf Side stops and table extensions Sheet metal holding knife sharpened Weight: approx. 2500 kg

Condition: used, sheet width 2540 mm plate thickness 2.00 mm thickness at "Niro-steel" 1.25 mm no. of strokes max. 63 Hub/min cutting angle 1.13 Grad Ijdjxacftspfx Ac Hsbf table height 750 mm table width 320 mm distance between columns 2620 mm back stop - adjustable 5.0 - 550 mm Control konv. engine output 3.0 kW weight of the machine ca. 1600 kg range L-W-H 3100 x 1980 x 1400 mm Equipment: - robust / motorized swing cut guillotine shears - break-proof, torsion-free steel welded construction - compact and clear machine design - manual back stop, with analogue display * adjustable from the front * stepless adjustment over the entire travel range - recessed grips in the support table - 1x hold-down bar - 1x side stop - 3x support arms - 1x freely movable foot switch - operating instructions (PDF) Special accessories included: - sheet metal holding device for thin sheet metal cuts
