RAS POWERcut 86.43 / 2018 / +equipment
RAS POWERcut 86.43

EXW Fixed price plus VAT

€67,500

Year of construction

2018

Condition

Used (fully functional)

Location

Bünde

RAS POWERcut 86.43 / 2018 / +equipment RAS POWERcut 86.43

Machine data

Machine type:: RAS POWERcut 86.43 / 2018 / +equipment

Manufacturer:: RAS

Model:: POWERcut 86.43

Machine number:: 10345

Year of construction:: 2018

Condition:: used

Functionality:: fully functional

Price & Location

EXW Fixed price plus VAT

€67,500

Location:: Bünde, Germany

Call

Technical details

Control type:: CNC control

Actuation type:: hydraulic

Controller manufacturer:: RAS

Controller model:: System 2005

Working width:: 4,040 mm

Cutting angle (min.):: 1 °

Cutting angle (max.):: 1 °

Stroke rate (min.):: 28 1/min

Stroke rate (max.):: 46 1/min

Sheet thickness (max.):: 5 mm

Back gauge adjustment:: CNC-controlled

Back gauge:: 1,250 mm

Power:: 18.5 kW (25.15 HP)

Input voltage:: 400 V

Input current:: 40 A

Input frequency:: 50 Hz

Type of input current:: three-phase

Overall weight:: 9,500 kg

Number of support arms:: 6

Equipment:: CE marking, angle stop, documentation/manual, emergency stop, finger protection, foot remote control, safety light barrier, type plate available

Details about the offer

Listing ID:: A222-28667

Update:: 01.07.2026

Description

RAS POWERcut 86.43 CNC Hydraulic Plate Shear
Manufacturer: RAS
Model: POWERcut 86.43
Year of manufacture: 2018

For sale is our RAS POWERcut 86.43 CNC hydraulic plate shear. The machine is currently still in our production facility and will be used sporadically until the sale. Therefore, it can be inspected and demonstrated at any time while powered on.

The shear has been used exclusively in our facility and impresses with its high cutting quality and the extensive original equipment from RAS. Of particular note is the cutting angle of only 1.0°, which enables very low-distortion and clean cuts, even with thin sheets and stainless steel.

Another advantage is the complete original RAS material handling system with automatic cut piece return, small parts sorting, and scrap separation. As a result, the finished cut pieces are automatically returned, and the workflow is significantly simplified.

Technical data
• Year of manufacture: 2018
• Cutting length: 4,040 mm
• Max. sheet thickness steel: 5 mm

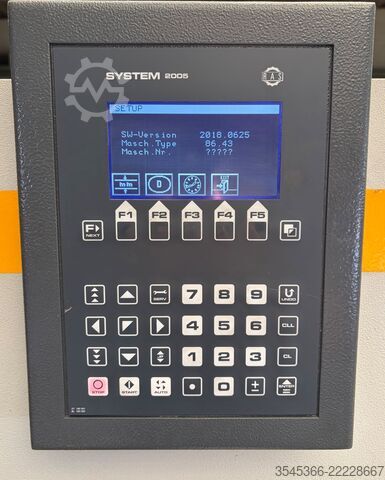

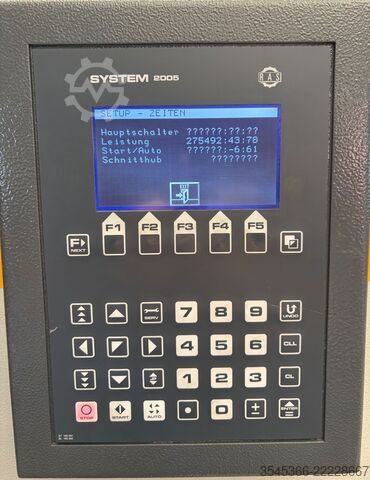

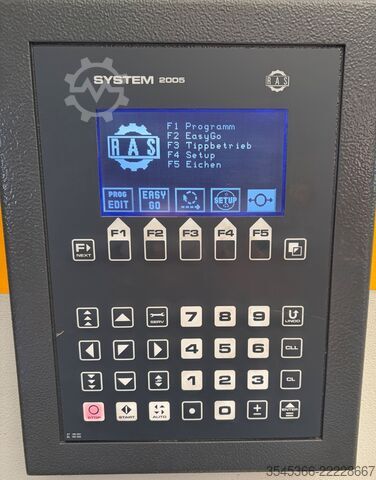

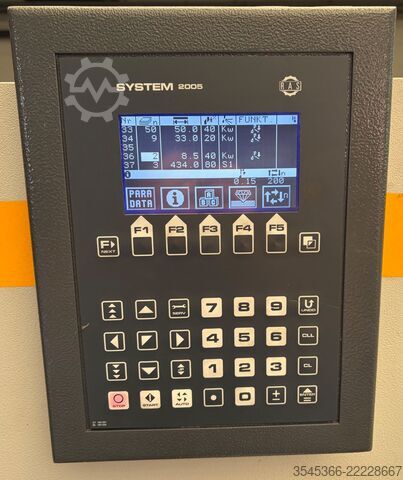

• CNC control system 2005 with LCD graphic display, softkey and window technology
• CNC back gauge 5–1,250 mm
Rodpfx Anozhnz Nepew
• Stroke rate: 28–46 strokes/min
• Cutting angle: 1.0°
• Transport weight: approx. 9,500 kg
Equipment
• CNC control system 2005
• CNC back gauge up to 1,250 mm
• Cutting line illumination
• Foot switch with multiple functions
• 20 hydraulic individual hold-downs
• Finger guard with deep grip pockets
• Built-in knives for chrome steel (stainless steel)
• Base machine raised by 100 mm
• 2 table extensions of 1,500 mm each
• 4 additional short table plates
• 33 steel ball rollers
• Tilting back gauge with precision scale
• Powder-coated table plates
• Oil filling
Material handling
• Original RAS cut piece return
• Small parts sorting
• Scrap separation
• Large parts feed-through
• Movable scrap cart (side or rear)

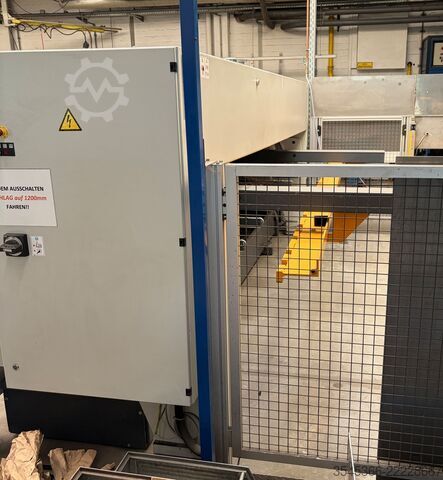

Safety
• Light curtain
• Protective fence on the right and left
• Safety device to protect the rear of the shear
The machine is well-maintained, used sporadically, and fully functional.
An inspection while powered on is possible at any time by appointment.
If you have any questions or are interested, please do not hesitate to contact us.

The listing was translated automatically. Translation errors are possible.
