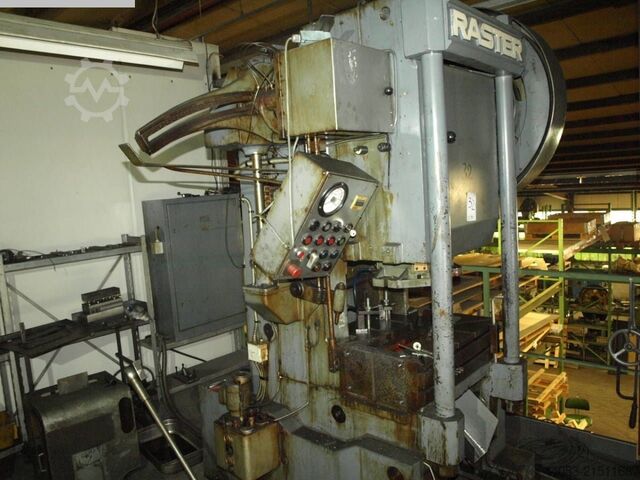

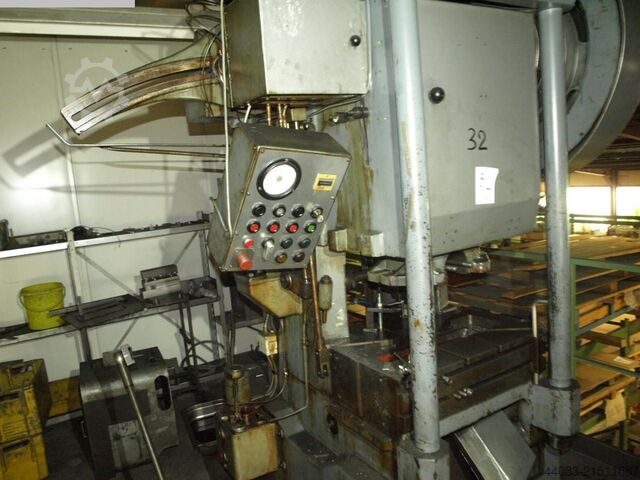

Automatic punching press

RASTER

Condition: used, Year of construction: 1971, pressure 40 t stroke . mm Hnedpfxeyutuie Agdsi no. of strokes . Hub/min The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 1997, Press capacity: 315 ton Ram stroke adjustable: 30 - 100 mm Slide adjustment: 100 mm Shut height (stroke down, adjustment up): 370 mm Table surface area : 1600 x 1100 mm Slide area: 1600 x 1100 mm Hole in table: 600 x 180 mm Number of strokes: 15 - 180 s.p.m. Table height over floor: 1200 mm Required power: 170 kW Height over floor approx.: 4900 mm Dimensions L x W x H: 4900 x 1900 x 4900 mm Weight of machine approx.: 55 ton Hnodpfsuqd Tmjx Agdji Standard configuration The press was converted to CE standard in press was 2021 converted to a SIEMENS S7 control conveyor system still has a SIEMENS S5 control system. Extended machine accessories Die lifters in the table Automation Feeding unit KEMMERICH consisting ofDecoiler levelling machine roll feeder Coil loading car

Condition: ready for operation (used), A complete punching system with a grid punch is available. 1) Reel Gebrüder Kemmerich 7VID, year of manufacture: 1981, max. load: 1000kg. 2) Straightening machine, max. material width: 300mm, max. material thickness: 2mm. 3) Feed unit Alba UVHY 300/0.1, feed speed: 6.5m/min, max. material width: 300mm, max. material thickness: 4mm, transport rollers: 2. 4) Punching grid HR 50/600 NL, stroke rate: 300/min, stroke: 30mm-80mm. On-site inspection is possible. Hedpfow Az R Asx Agdjni

Year of construction: 1992, condition: ready for operation (used), A complete punching system with a grid punch is available. 1) Double reversible decoiler, load capacity: 1000kg. 2) Alba GGVHY 200 straightening machine, year of manufacture: 1992, feed rate: 6.5m/min, max. material width: 200mm, max. material thickness: 4mm, transport rollers: 2. 3) Alba MA RIA 7 feed, year of manufacture: 1978, max. material width: 300mm, max. material thickness: 3mm, feed rate: 40m/min, control: Siemens S7. Material thickness: 3mm, feed speed: 40m/min, control: Siemens S7 with OP7. 4) Punching machine Raster HR 80/700 NL, year of manufacture: 1992, pressing force: 80t, stroke rate: 250/min, table dimensions X/Y: 730mm/750mm, ram dimensions X/Y: 730mm/630mm, ram stroke: 40mm, ram adjustment: 80mm. 5) Profiling machine CIS. Documentation available. On-site inspection is possible. Hnodpfx Aew Az Rvogdji

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, ram adjustment: 150 mm, table length: 2,000 mm, table width: 1,200 mm, pressing force: 250 t, stroke adjustment: 40,200 mm, overall weight: 55,000 kg, DGUV certified until: 09/2026, Raster punching and forming line RSU 2500 - 2000 P Hnodpsxcbbrjfx Agdei Desch compact drive unit Electronic press force measuring system Hydraulic overload protection system 3-piece tie rod cast construction Tool holder Table and slide clamping devices Raster VWA hydraulic roll feed, band width 500 mm, with Topochrom roll coating Slide area 1000 x 2000 mm Stroke rate: 20 - 150 spm Stroke adjustment: 40 - 200 mm Optionally with Kohler coil line 20030.400/9-2000 .2H

Condition: good (used), Year of construction: 1972, functionality: fully functional, pressing force: 25 t, space requirement height: 2,800 mm, space requirement length: 1,600 mm, space requirement width: 2,200 mm, Four-column punching press Manufacturer: Hermann Raster KG Type: HR SL4S Working area Distance from ram center or distance between the columns under the guide: 160 mm Smallest / largest distance from clamping table to ram at maximum stroke: 260 / 300 mm Smallest / largest distance from clamping table to ram guide: 110 / 150 mm Clamping table Clamping area: 600 x 320 mm Clamping ram Smallest / largest stroke: 0 / 40 mm Ejector stroke (max. 20 mm) Stroke rate: 200-1000 per minute Straightening range: 70 mm Clamping area: 400 x 250 mm Clamping pin: Hole diameter: 40 mm; Depth 70 mm Safety device Electro-pneumatic clutch and spring-loaded brake Power Normal pressure 25,000 kp Cutting capacity 625 mm², K=40 kg/mm² Floor area required without soundproofing 1 m x 1 m x 2.45 m Weight without soundproofing 3,600 kg Floor area required with soundproofing 1.60 m x 2.20 m x 2.80 m Drive type Voltage 380-660 V Current type: Three-phase current Total power requirement 6 kW Hnedpfx Agswcxccodji Drive: AEG, AM 132 MX4, power 7.5 kW, 2860 rpm Gearbox: PIV, FK NA HB 22 Control cabinet: AEG, 190300 Central lubrication: Woerner, PA 15.M1 Flat/V-belt 3, 17 x 2220, rubber material Drive: Variable speed drive Pull width: 65 mm Pull diameter: 224 mm Special features Gripper feed Z2 Useful width: 180 mm Soundproof cabinet sta Schalltechnische Anlagen GmbH The machine is connected to the power supply and can be tested.

Condition: good (used), Year of construction: 2012, Condition: 2012 overhauled to the latest UVV Installation height: 800 mm Ram stroke: 500 mm Projection: 360 mm Nominal force: 400 kN Hnedjydlx Sjpfx Agdei Hydraulic pressure: 160 bar Operating hours: 1356 Other: new control from Pilz, electrical circuit diagrams available Video about functionality available

Condition: used, Year of construction: 1978, pressure 150 t stroke fix 80 mm no. of strokes 30 - 150 /min distance between columns 930 mm dayligth (stroke and adjustment up) 400 mm column travel -side 650 mm table surface area 880x1300 / 1500x600 mm hole in the table 760 x 180 mm Hnjdpjvut Ursfx Agdji table height over floor 1270 mm ram surface 920x1000 / 1300x600 mm Weight 27,5 t dimensions of the machine ca. 3,1 x 1,8 x 4,3 mxmxm permitted for automatic mode according to the German Safety Regulations (UVV) with infinitely variable drive, pneumatic clutch/brake combination, fix stroke, motoric ram adjustment, pneumatic counterbalance in ram, centralized lubrication, WITHOUT feeder as is where is, WITHOUT putting into operation Price for commissioning (with new electric control) on request

Condition: used, Single-Column Eccentric Press RASTER ZEULENRODA Type PDA 100 Year of manufacture: 1995 Pressing force: 100 tons Throat depth: approx. 360 mm Table size: 1200 x 710 mm Ram area: 900 x 500 mm Table opening: 400 x 120 mm Stroke adjustment: 6 to 82 mm Ram adjustment: 100 mm Installation height, max. stroke, ram Top Dead Center (TDC): max. 469 mm Installation height, max. stroke, ram Bottom Dead Center (BDC): max. 387 mm Strokes per minute: 50-200 s.p.m. Main drive motor power: 18.5 kW Power supply: 400 Volt, 50 Hz - Hydraulically actuated multiple-disc wet clutch and spring-loaded safety brake - Infinitely variable drive via PIV gearbox with inching mode for automatic stroke adjustment and setup operations - Hydraulic overload protection in the ram - Press force and process monitoring via UNIDOR APS - Pneumatic, steplessly adjustable ram weight compensation - Roller feeder MABU WE16, 160 x 3 mm, programmable feed length - Central grease lubrication - Operating manual and documentation for the press Included: Roller feed unit MABU Type WE16 Strip width: 160 mm Strip thickness: max. 3 mm Hodpfx Agsx U Eiaedoni Strip cross-section: max. 300 mm² Roller diameter: 63 mm Strip speed: 40 m/min - Adjacent feeder control MABU Space requirements for eccentric press L x W x H: 270 x 240 x 350 cm Weight of the press: 13.5 tons

Condition: used, Year of construction: 1992, pressure 80 t Hnodpfxowz Rv Ee Agdoi stroke 40 mm no. of strokes 60-300 Hub/min table surface area 730x750 mm weight of the machine ca. 14 t
