Broaching machine

Rausch / Wiemers SR 30

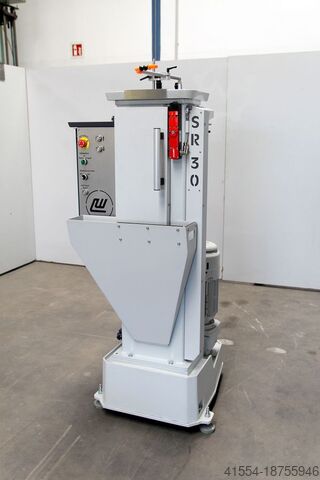

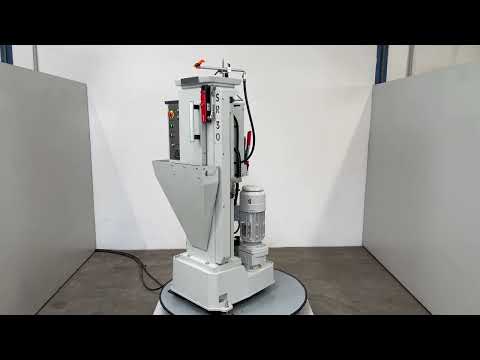

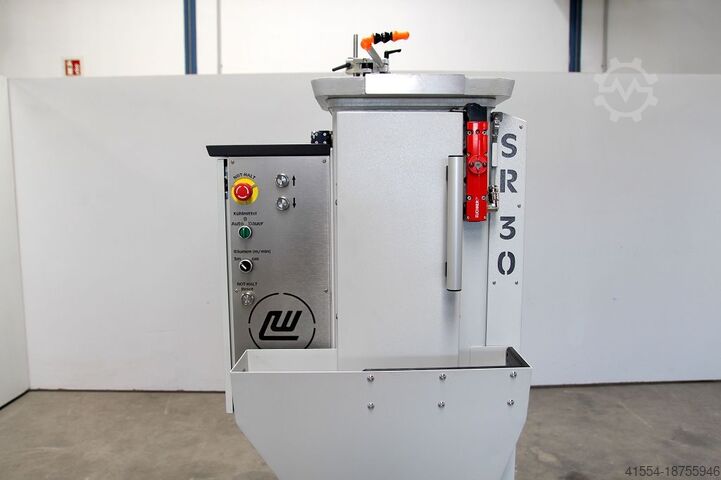

Rausch/Wiemers SR 30 (WAG 3102) Vertical Internal Broaching Machine

Manufacturer: Rausch/Wiemers
Model: RS 3/1000 Machine No.: WAG 3102
Year of manufacture: 2024 Weight: 480 kg
Revision: 11/2024 by Wiemers AG

General / Technical Specifications:
Completely overhauled, mechanical vertical broaching machine
Rausch SR 30, unused with "CE" marking
Tensile force: 30 kN (3,000 kg)
Broaching speeds: 3 m/min & 6 m/min
Return speed: 6 m/min
Maximum stroke: 1,000 mm
Maximum tool length: 1,200 mm
Table dimensions / work surface: 430 mm x 320 mm / 340 mm x 220 mm
Table opening: Ø 90mm for standard broaching mandrels "Rausch System"
Workpiece diameter: any (removable coolant swivel system)
Broaching capacity / groove width: up to 20mm in steel (from 16mm broaching tool width only with offset tool shank)
Dimensions (h x w x d): 1370mm x 680mm x 750mm (h = table height to floor without attachments)
Motor: 2.5kW/3.0kW 2-stage for 2 working speeds
Power supply: 400V / 50Hz

Equipment:
- Gear motor drive with 2 working speeds
- Modified Wiemers "SR" drive system
- Reinforced drawbridge made of tool steel for greater pulling forces

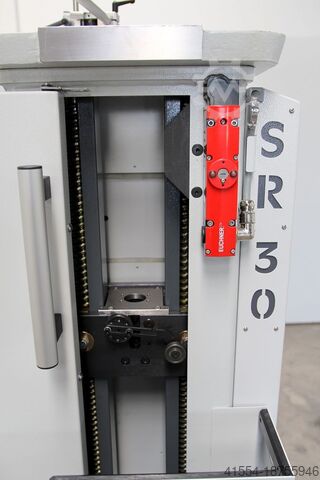

- Safety door with door lock, safety query, and safety monitoring
- Easily removable chip chute with tool storage option
- Externally adjustable tool length adjustment system (across all machines) reproducible)
- Protective cover for the stroke adjustment and electrical switching units
- Oil-tight storage on the control cabinet
- Electrical scanning of the clamping jaws
(Tool removal control prevents accidental retraction of the drawbridge, providing additional safety for the operator and tool)
- Integrated coolant system with electrically switched solenoid valve and drain cock
- Coolant swivel system, with automatic coolant switching via the swivel system
- Extra-reinforced chip basket and chip sieve with magnetic insert

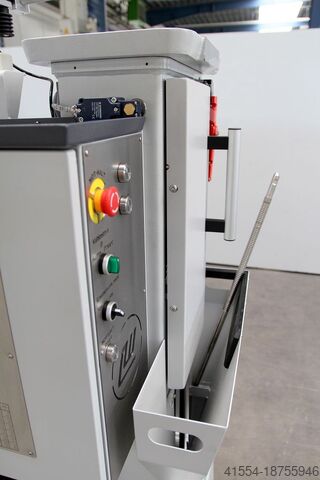

- Stainless steel control panel with durable markings
- 4 central lubrication points for the trapezoidal spindle drive with manual grease gun
- Electrical preparation for an external control element (16-pin connector)
- Preparation for automatic clamping jaw opening during profile broaching via roller lever
- Machine documentation with "CE" confirmation declaration
Chodjv Rpnmjpfx Abwsc

Optional additional options:
- Automatic clamping jaw opener for easier tool removal during profile broaching
- Open 3-sided splash guard cabin (w x d x h) 700 x 350 x 600 mm
- External electrical control unit for broaching and return stroke, as well as emergency stop operation

Note:
The machine has been completely overhauled. During the overhaul, the machine base, machine body, and machine table were completely refurbished. All other components have been replaced. The drive system has been modified. The machine has been updated to the state of the art and complies with current CE regulations (as of 2024).

General
The dual-spindle drive ensures a smooth and central pull point and a constant broaching speed. The machine is primarily designed for the production of keyways up to 20 mm. (From 16 mm keyways, only with stepped tool shanks).
Due to its design, the machine is quick and easy to set up for broaching with flat broaching tools for keyways.
