Surface Grinding Machine - Vertical

REFORM AR42 Typ 19 CNC

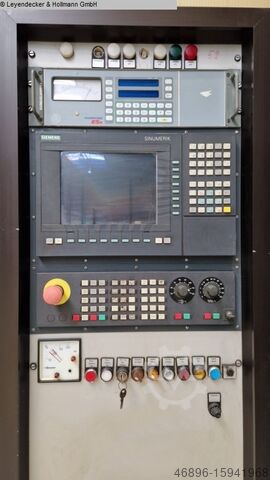

Condition: good (used), Year of construction: 2007, Machine-Details : Stock-No. 1022-2276 Type of machine Surface Grinding Machine - Vertical Make REFORM Type AR 42 Typ 19 CNC Year of manufacture 2001 Type of control CNC Storage location Monheim (Germany) Country of origin Germany Delivery time Immediately Freight basis Ex warehouse, loaded on truck Technical details : grinding length 4200 mm grinding width 1300 mm workpiece height 550 mm Control SIEMENS 840 D magnetic clamping plate 4200 x 1300 mm segment head diameter 1400 mm grinding motor turning speeds up to 320 U/min. grinding motor 306 kW weight of the machine ca. 50,0 t Additional information : Segment dimensions: 120/106 x 41 x 250 mm Number of segments: 1 set = 26 pieces Grinding motor feed: 0.5 - 35 m/min, infinitely variable Grinding motor feed: Pedpox Ng Eljfx Ac Horf - in steps: 0.002 - 1 mm continuous: up to 5 mm/min. infinitely variable Equipment: * CNC-control SIEMENS Sinumerik 840 D * Automatic hydr. swivelling of the grinding motor from hollow to cross grinding * NC-controlled adjustment of the Marposs measuring head by means of precision support. - new grinding dimensions can be entered into the control, whereby the the grinding head automatically adjusts to the corresponding height. * Dresser with adjustment axis in the machine bed * Coolant system * Electro-magnetic table * Switch cabinet * Oil mist extraction * Documentation Dimensions (length x width x height) Bed: 11800x2200x1400 mm, weight 27500 kg Grinding head: 3000 x 2500 x 3100 mm, estimated weight 14 t 2 x Oil mist extraction: 1200 x 800 x 2000 mm each Control panel: 1200 x 800 x 400 mm Small control cabinet: 1400 x 1400 x 800 mm 2 x gears each 1200 x 800 x 500 mm Control cabinet: 1600 x 800 x 2000 mm Control cabinet: 3400 x 600 x 2400 mm

Year of construction: 2014, condition: ready for operation (used), A defective CNC precision surface and profile grinding machine ABA is available. Grinding length: 2500mm, grinding width: 1020mm, cross travel: 920mm, cross feed intermittent: 750mm/pulse, cross feed continuous: 5000mm/min, table spindle center distance: 1100mm, magnetic plate dimensions X/Y: 2500mm/1000mm, max. table load: 5000kg, table speed: 60m/min, spindle power: 26kW, grinding wheel dimensions X/Y/Z: 500mm/100mm/203mm, grinding wheel rotation speed: 35m/s. Machine dimensions X/Y/Z: approx. 8000mm/4000mm/3150mm, weight: approx. 20000kg, control: Siemens Sinumerik 840 D-Solutionline, operating hours: approx. 1000h, cycle time: approx. 400h. Including cooling unit Hyfra sigma 13-S, year of manufacture: 2014. The linear drive of the X-axis is defective and has been dismantled. Documentation available. On-site inspection is possible. Pedpswi Tpkefx Ac Horf

Condition: used, Year of construction: 1990, functionality: fully functional, machine/vehicle number: C4652, grinding length: 5,100 mm, grinding width: 250 mm, overall weight: 9,100 kg, space requirement height: 2,300 mm, space requirement length: 9,000 mm, space requirement width: 4,000 mm, Reform AR 51 Type 7 Surface grinding machine Year of manufacture: 1990 Grinding length: 5100mm Grinding width: 250mm Workpiece height: 220mm Prjdstqtk Aepfx Ac Hsf Total power requirement: 36kW Used water system Lifting station, magnetic roller, pump

Year of construction: 2008, condition: ready for operation (used), Sanding range: 2000x900mm, transverse movement: 875mm, longitudinal movement: 2450mm, distance table to spindle center: 845mm, magnetic clamping plate dimensions: 2000x800mm, max. table load: 2.3t, feed rate longitudinal axis: 1000-30. 000mm/min, feed transverse axis: 0,01-2000mm/min, feed vertical axis: 0,001-1500mm/min, grinding wheel dimensions: 500x100x203,2mm, power grinding spindle motor: 22kW, length: 6800mm, width: 3450mm, weight: 13t. On-site inspection is possible. Predpfx Aeuyk N Isc Hjf

Condition: used, Year of construction: 1991, functionality: fully functional, machine/vehicle number: C4656, grinding length: 4,100 mm, grinding width: 200 mm, Reform AR41 Type 7 C4656/91 Year of manufacture: 1991 Grinding length: 4100mm Grinding width: 200mm Workpiece height: 190mm Table clamping area: 4169x202mm Segment head diameter: 250mm Spindle diameter in the front. Bearing: 45mm Swivelling: 2° Max. torque: 2x45.8Nm 2x grinding motor 7.5kW Feed: 2000-35000 mm/min Max. speed: 1460 min/-1 Total power requirement: 30 kW Heidenhain digital display Additional grinding device ZS 7.5kW Swivelling clamping table via swivel gear Prodpfxetqtppj Ac Hof Paper belt filter cleaning including pumps Central lubrication system Machine weight approx. 8.2t Space requirement approx. 9.5x2.6x2m

Condition: used, Year of construction: 1986, functionality: fully functional, machine/vehicle number: C3300, grinding length: 4,500 mm, grinding width: 300 mm, table length: 4,500 mm, table width: 300 mm, space requirement height: 2,500 mm, space requirement length: 13,700 mm, space requirement width: 2,500 mm, Reform AR45 T9 ZU C3300/86 Year of manufacture: 1986 Sanding length: 4500mm Sanding width: 300mm Workpiece height: 250mm Swivel range table or sanding arm: +-90 degrees Segment head diameter: 560mm Spindle diameter in front bearing: 120mm Swivel range: 2° Max. Torque: 719,5Nm Motor: B280, 55kW Prjdpfx Aetqtn Dsc Hof Grinding spindle speed range: 0-730 rpm Control system: BBC Baumüller drives Marposs measuring system Hydraul. Clamping Sanding mist extraction system: Hydrocyclone cleaning system Additional sanding unit ZU Feed rate: 2000-35000mm/min Space requirement approx. 13.7x2.5x2.5m

Condition: used, Year of construction: 2007, Technical details: grinding length: 3150 mm grinding width: 800 mm workpiece height: 650 mm table surface area: 3.150 x 600 mm magnetic clamping plate: 3.000 x 600 mm table load: max. 6 t Psdpfx Ajuh H Iyoc Herf dimensions of grinding wheel: 450 x 100 x 127 mm : 22 kW total power requirement: 70,6 kW weight of the machine ca.: 15 t dimensions of the machine ca.: 11 x 3 x 2,4 m surface grinding machine, CNC Flachschleifmaschine, coolant device 2.500l, magnetical adhesive force control, semi automatic balancing system, *

Condition: used, Year of construction: 1991, functionality: fully functional, machine/vehicle number: 4653, grinding length: 4,500 mm, grinding width: 400 mm, total height: 2,700 mm, total length: 10,000 mm, total width: 1,800 mm, grinding height: 255 mm, grinding spindle motor power: 55,000 W, input voltage: 380 V, fabrication no.: 4653/91 - operating voltage: 380 V - frequency: 50 Hz - nominal current: 165 A - Max. grinding length: 4500 mm - Max. grinding width: 400 mm - Max. working height: 255 mm - with fixed magnets - clamping surface length: 4500 mm - clamping width: 400 mm - height over floor: min./max. 787 mm - grinding spindle segments: 90 x 35 x 200 mm - segment head: 560 mm diameter - spindle diameter at front bearing: 170 mm - feed rate of grinding spindle: 30000 mm/min - the machine consists of 3 clamping magnets - magnet dimensions: 1500 x 400 mm Prodpfx Acjr Izqcj Hof Technical attributes dimensions (l x w x h) approx. 10000 x 1800 x 2700 mm weight approx. 17500 kg year of construction 1991
