Edge sanding machine

Rehnen KBA

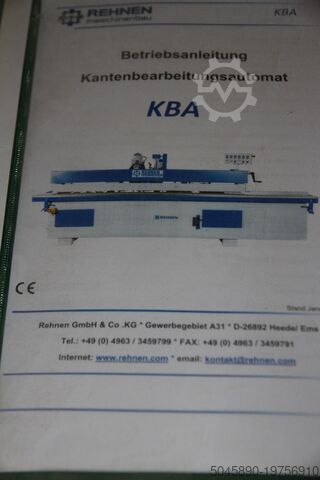

Condition: used, Year of construction: 2002, total length: 2,600 mm, total width: 1,000 mm, total height: 1,600 mm, overall weight: 700 kg, space requirement width: 1,000 mm, space requirement height: 1,600 mm, space requirement length: 2,600 mm, power: 6.5 kW (8.84 HP), No. 04503 Edge processing machine Rehnen KBA Used, year of construction 2002 The machine has been designed for sanding edges, milling profiles and sanding profiles in a throughfeed process. The materials to be processed are solid wood, chipboard and MDF. Material thickness 10 - 65 mm Material length min. 50 mm Material width min. 60 mm Feed speed 8 m/min Total power 6.5 kW Equipment: - Oscillating edge sanding unit Sanding belt dimensions 150 x 1500 mm Oscillation path 30 mm Contact roller and sanding pad - Milling unit top - Milling unit bottom - Profile sanding unit top Nljdoxzu Iijpfx Afwei Incl. technical documentation Transport dimensions approx. 2600 x 1000 x 1600 mm LWH Weight approx. 700 kg To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical specifications, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “sold as seen” Terms of payment: Prices plus VAT, payment before collection or dispatch Terms of delivery: ex warehouse

Condition: good (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: A050694, total length: 4,500 mm, total width: 1,000 mm, type of input current: three-phase, overall weight: 850 kg, height adjustment type: mechanical, input voltage: 400 V, extraction connection diameter: 160 mm, input frequency: 50 Hz, grinding width: 140 mm, Grinder for narrow surfaces with the possibility of milling edges and grinding them. At the beginning there are two sanding units with oscillation and 160 mm wide belts, i.e. pre-sanding followed by smoothing, then two units milling the edges from above and below, equipped with cutters for rounding edges r-6 mm and further two units sanding with narrow belts after milling at the end, also with oscillation, and the last seventh unit with a brush wheel for smoothing. The machine is suitable for sanding wooden parts of solid wood and MDF boards, such as countertops of various types, shelves , elements of stairs, doors, windows and other various types of furniture and wooden construction elements. Ready to work possibility to check and start on site. Equipped with several sanding tapes and some parts. Nodpfx Afjuynnusweli

Condition: used, Year of construction: 1999, Number of sanding units 5 st. Feed speed 6 m/min. Nedpfevwfctsx Afwjli Overall size 2600x1000x1600 mm machine weight ab. 600 kg
