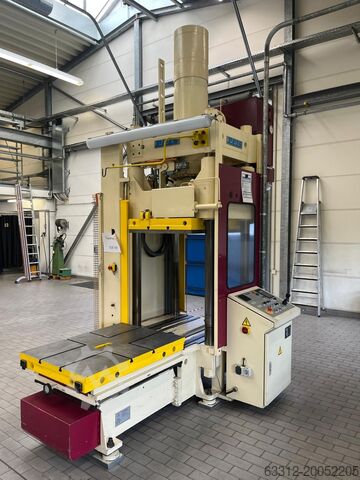

Spotting press

Reis TUS 80-100 Tuschierpresse

PERFORMANCE AND DESIGN:
Press Capacity: 26-100 t (adjustable)
Return Force max: 45 t

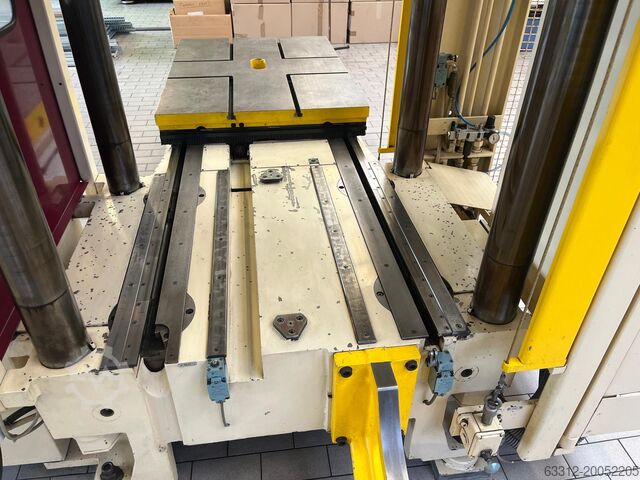

Table: 1100 x 800 mm
Maximum Table Load: 5,000 kg
Distance - Ram to Lower Table (max): 950 mm
Frame Type: 4-column
Overall Dimensions (WxDxH): 2,100 x 3,395 x 3,670 mm
Approx. Total Weight: 8,500 kg
T-slots and bores to DIN-650-22 mm

HYDRAULIC UNIT:
Hydraulic Pump (Brand: REXROTH): SYDFE11x71RN0030CAM
Motor Power: 7.5 kW
Max. Working Pressure: 200 bar
Pressure Accuracy During Ram Stroke: +/- 5 bar
Oil Tank Volume: 200 L
Hydraulic Oil Specification: HLP 36

ELECTRICAL EQUIPMENT
ELECTRICAL CONNECTION:
 Main Supply: 400V AC
 Control Voltage: 24V DC
 Frequency: 50 Hz
 Hydraulic Main Motor Connection: 7.5 kW
 Total Connected Load: 10 kW

FEATURES
• 180° tiltable ram plate up to 3 tons (tilted)
• Ejector in ram: 3.5 tons and 130 mm, adjustable
• Oil connection sockets for core pull
• Digital measuring device
• Material feed (injection molding) via the ram plate possible
• Increased speed
• Table plate tiltable to both sides

DOCUMENTATION
• Hydraulic schematic
• Electrical schematic
• Technical drawing
• Datasheet

FUNCTIONS AND DESCRIPTIONS
PRESS CONTROL:
The press is operated via the operator console.
• Raising/lowering the ram plate
• Tilting the ram plate
• Extending the table
• Operating the ejector
• Setting the pressing force
• Operating oil connection/core pull
The control system is by Siemens Pilz.
All essential functions and data are entered and displayed there.
