Spotting press

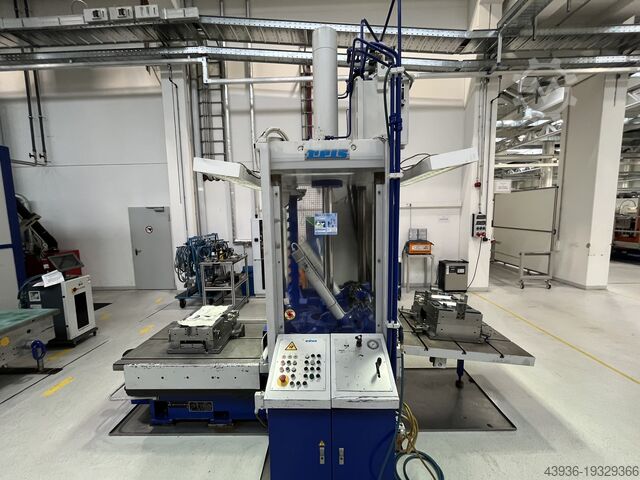

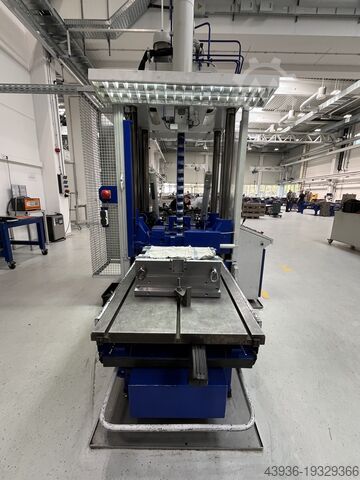

Reis TUS 90 OK-40

Condition: used, Year of construction: 1991, pressure 40 t distance between columns 930 mm Fpedpfxevuul Ss Aa Nsp stroke 1100 mm distance table/ram, max. stroke up, adjustment up 1035 mm table surface area 900 x 1280 mm table height over floor 665 mm ram surface 900 x 1200 mm side window 700 mm max. tool weight 7,0 t max. capacity of swivelling ram plate 3,5 t Speed down 0 - 50 mm/s Speed up 0 - 34 mm/s Working speed 0 - 10 mm/s oil volume 140 l power requirement 9,5 kW weight 7,0 t dimensions (WxDxH) 2,1 x 3,6 x 3,6 m with swivelling ram, movable table can be offered without or with putting into operation in given condition - video at seller'S site before dismantling available

Condition: good (used), Year of construction: 1989, Work load 7000 Kg Rotation table load 3500 Kg Table height over floor 665 mm Upper mould half can be freely swiveled out up to 180 Gr. Lower mold half can be swiveled hydraulic using push button Fpedpfswq Rm Aox Aa Njp Lower mould tiltable 2 sides Optimum handling, free working positions All movements are hydraulic controlled Distance between column:930mm Hight under roof: 1035mm Table Length: 1280mm Ram stroke: 1100mm Approche speed: 50mm/min. Working speed: 10mm/min. Return speed: 34mm/min. Table rotation: 270U/mm Length: 2100mm Width: 3600mm Height: 3600mm Weight: 8000kg

Condition: good (used), Year of construction: 1986, Power: 400kN Size of bolster: 900 x 1.280 mm Size of ram: 900 x 1.2200 mm Weight of mold: max. 7.000kg Power main motor: 7,5 kW Stroke: 1.000 mm - With movable bolster - Bolster can be swiveled Weight: app. 7.000kg Fjdpjthdbnefx Aa Njpp
