224 Ton Hydraulic 4 Post Spotting PressReis
TUS-180 OK-200

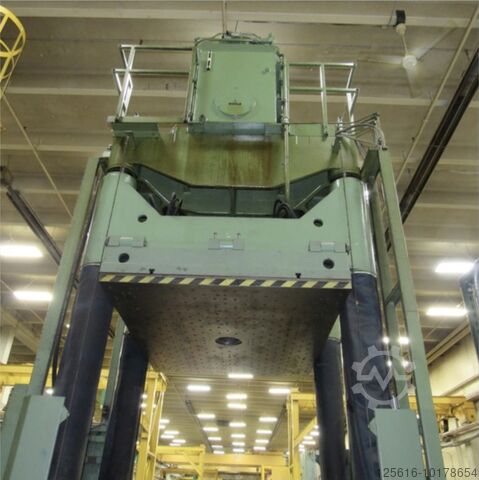

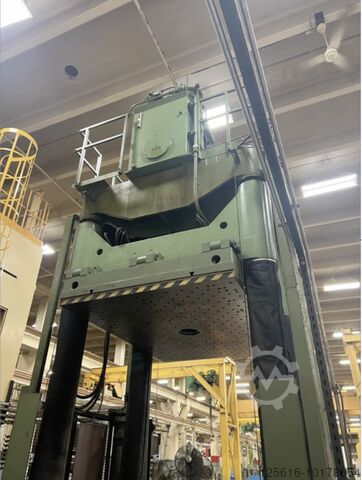

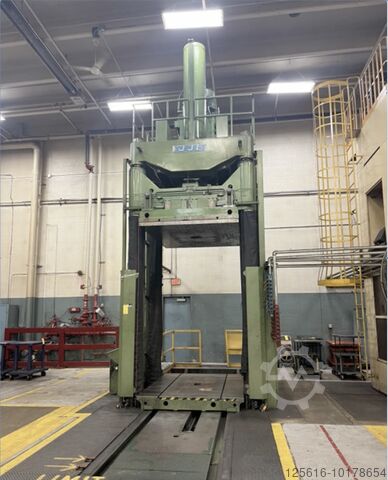

224 Ton Hydraulic 4 Post Spotting Press
Reis
TUS-180 OK-200
Year of construction
1994
Condition
Used
Location
Warren

Show images
Show map
Machine data
- Machine type:
- 224 Ton Hydraulic 4 Post Spotting Press
- Manufacturer:
- Reis
- Model:
- TUS-180 OK-200
- Machine number:
- GCHREIS
- Year of construction:
- 1994
- Condition:
- good (used)
Price & Location
- Location:
- 13301 E 8 Mile Rd, 48089 Warren, United States

Call
Details about the offer
- Listing ID:
- A101-78654
- Update:
- 23.06.2024
Description
SPECIFICATIONS:
Capacity: 224 Ton
Table Size: 71" lr x 98" fb
Swivel Platen Size: 71’ lr x 98” fb
Stroke: 71”
Daylight Opening: 98”
Distance Between Columns: 74” lr
Table Capacity: 67,442 pound force
Swivel Platen Capacity; 26,977 pound force
Oil Reservoir Capacity: 153 Gallons
Isdpfxsl Ayc To Ac Hjbf
Motor: 25.3 Kw (approx 33 HP) 41 amps / 1755 rpm Power: 480 v/3ph/60cy
Approx Floor Space required: 322.83” lr x 133.85” fb
Approx Overall Height: 261.5”
Above Floor: 233.8"
Approx Overall Weight: 103,617#
EQUIPPED WITH:

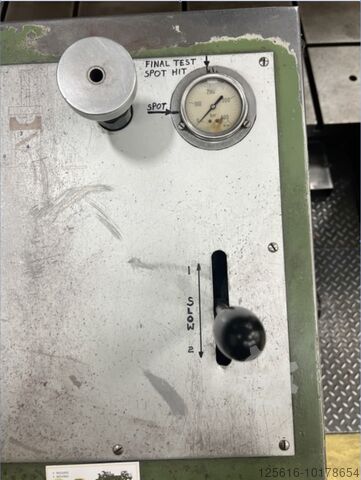

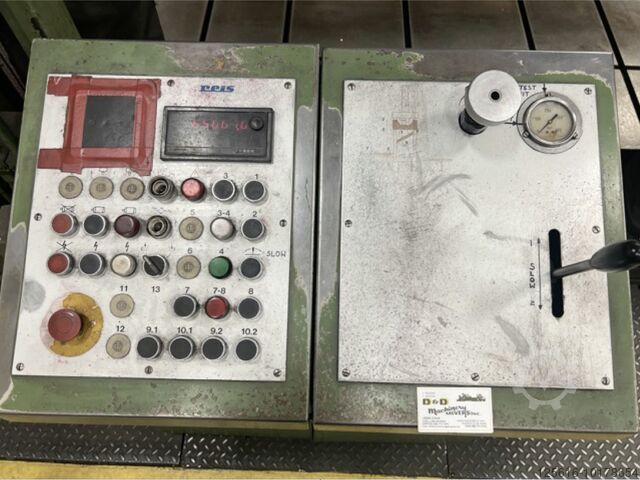

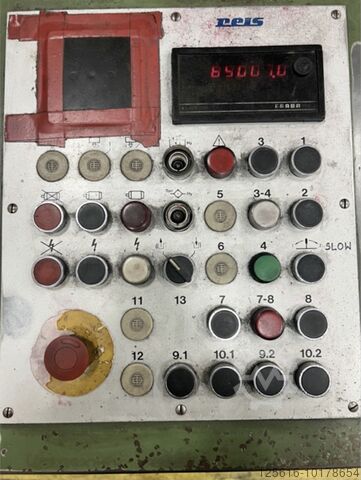

Press Controls Console
Top Mounted Hydraulics

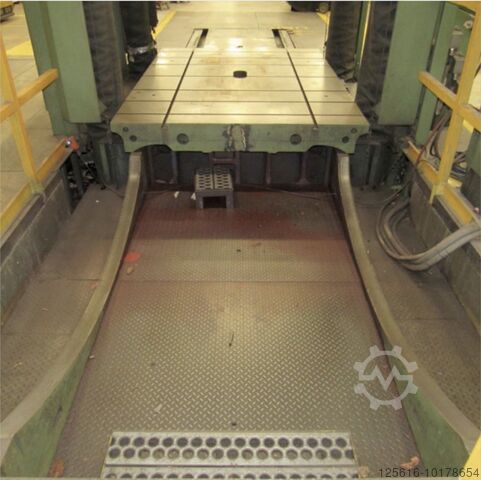

Roll Out Bolster (Table)
Tilt Down Ram (180º)
SPECIFICATIONS SUBJECT TO VERIFICATION
Capacity: 224 Ton
Table Size: 71" lr x 98" fb
Swivel Platen Size: 71’ lr x 98” fb
Stroke: 71”
Daylight Opening: 98”
Distance Between Columns: 74” lr
Table Capacity: 67,442 pound force
Swivel Platen Capacity; 26,977 pound force
Oil Reservoir Capacity: 153 Gallons
Isdpfxsl Ayc To Ac Hjbf
Motor: 25.3 Kw (approx 33 HP) 41 amps / 1755 rpm Power: 480 v/3ph/60cy
Approx Floor Space required: 322.83” lr x 133.85” fb
Approx Overall Height: 261.5”
Above Floor: 233.8"
Approx Overall Weight: 103,617#
EQUIPPED WITH:
Press Controls Console
Top Mounted Hydraulics
Roll Out Bolster (Table)
Tilt Down Ram (180º)
SPECIFICATIONS SUBJECT TO VERIFICATION
