Stainless Steel Tanks

Rieger

Condition: used, tank capacity: 36,000 l, GENERAL INFORMATION Design: horizontal Remarks: 1 manhole approx. 320 x 420 mm located on the front end; total length and total height according to drawing; tanks were professionally cleaned and overhauled by the manufacturer in 2024; brand-new drain valves, sampling valves, and manhole gaskets have been installed. Internal diameter: 3,080 mm Total height: 3,600 mm Total length: 5,500 mm Support type: height-adjustable feet Location: outdoor storage Technical documentation: drawing Volume: 36,000 liters Cylinder wall thickness: 3 mm Product-contact material: V2A 1.4301 (AISI304) Condition: used Cylindrical length: 4,200 mm Previous application: wine storage Itodpfx Ahjxqb A Sjusb TANK Number of feet: 6 pcs EQUIPMENT Outlet: 100 mm MATERIAL SPECIFICATION External surface: marbled Feet material: stainless steel TECHNICAL DATA / DIMENSIONS Head wall thickness: 5 mm

Condition: used, tank capacity: 24,000 l, GENERAL Design: upright Notes: 1 manway approx. 320 x 420 mm in the cylinder; total height as per drawing; tanks professionally cleaned and overhauled by the manufacturer in 2024; brand-new outlet valves, sampling valves, and manway gaskets have been installed. Internal diameter: 3,450 mm Total height: 3,650 mm Base design: feet adjustable in height Location: Outdoor storage 89340 Leipheim Technical documents: drawing Volume: 24,000 liters Cylinder wall thickness: 2.5 mm Product-contact material: V2A 1.4301 (AISI304) Condition: used Itsdpjxqb A Eofx Ahuob Cylindrical height: 1,650 mm Previous use: wine storage TANK Number of feet: 6 pcs EQUIPMENT Manway / Dome: in cylinder Outlet: 100 mm MATERIAL QUALITY External surface: marbled Feet material: stainless steel TECHNICAL DATA / DIMENSIONS Bottom plate thickness: 4 mm Top plate thickness: 3.5 mm

Condition: used, tank capacity: 34,500 l, GENERAL Itsdpjxqdhkefx Ahujb Equipment: Drain valve, spray head, crane lugs Design: upright Remarks: Minor dents or scratches possible Internal diameter: 2,900 mm Total height: 6,533 mm Top end: conical bottom Support type: height-adjustable feet Location: Outdoor storage, Southern Germany Technical documents: Drawing Nameplate: Volume: 34,500 liters Product-contacting material: V2A 1.4301 (AISI304) Condition: used Cylindrical height: 4,950 mm Last application: Winery TANK Bottom: conical bottom Number of feet: 4 pcs. EQUIPMENT Manway / dome: in cylinder, in top (DN 400) Outlet: DN65 DIN 11851 TECHNICAL DATA / DIMENSIONS Wall thickness, bottom: 4 mm Wall thickness, top: 3 mm

Condition: excellent (used), Equipment: type plate available, 18 x sparkling wine pressure tank/storage tank made of V2A, 8 bar, with lateral agitator mixer - second-hand - used Manufacturer: Rieger Volume approx. 52,100 liters Diameter approx. 3,250 mm cyl. height approx. 5,500 mm Total height approx. 8,000 mm Cylinder wall thickness: 11 mm Operating pressure: 8 bar Working temperature: 20 C° Internal surface: 2B=IIIC ground Surface outside: marbled Top shelf: dished bottom 3 crane eyes CIP line DN 50 drawn downwards with flange connection with pressure line DN 25 5 saddle feet Tank cylinder: Manhole oval 350 x 450 mm 1/2" sample tap with flange connection Clear drain DN 65 with angle seat valve Lateral agitator mixer, type: propeller at 315° from the manhole Complete champagne pressure fitting with safety valve, pressure gauge, vacuum valve and DN 25 angle seat valve Underbody: dished bottom Itjdpfxjtvg Uys Ahueb Residual drain pipe pulled forward in the middle, flush with the tank DN 65 with angle seat valve 6 sturdy with height-adjustable spherical feet and sturdy washers 9 basic tanks and 9 saddle tanks are available otherwise as per photos

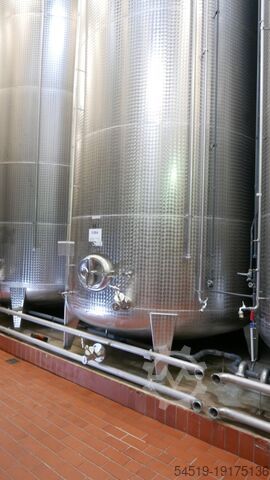

Condition: used, water tank capacity: 40,000 l, V2A stainless steel tank, upright, wine tank/fruit juice tank, Rieger - used - Volume approx. 40,000 liters Diameter approx. 2,800 mm cyl. Height approx. 5,800 mm Total height approx. 7,400 mm Weight approx. 1,000 kg Outer surface: marbled Inner surface: 2B=IIIC ground Top end: Torispherical head 2 crane eyes Central threaded weld-on connection DN 100 to DN 40 with threaded connection DN 50 with vent valve DN 50 and check valve DN 50 Sprinkling ring Tank cylinder: Level indicator with bar, scale, and standpipe valve DN 15 Manhole 420x320 mm Test tap DN 15 1 ladder hook at the top Immersion stem sleeve for temperature display Downwardly extending CIP line with vent line DN 40 with connecting thread DN 50 Clear drain with angled seat valve DN 50 Cooling line CIP ball Itodpfx Aswlg Dajhusb Underbody: Torispherical bottom Floor-mounted bottom bead with DN 50 angled-seat valve, flush with tank wall Floor-mounted outlet with butterfly valve/ball valve/angled-seat valve, DN 50 outlet pipe with flange Five spherical feet, height-adjustable, with washers Otherwise, as per photos

Condition: used, water tank capacity: 20,350 l, Rieger V2A stainless steel vertical wine/fruit juice tank - used - Volume approx. 20,350 liters Diameter approx. 2,000 mm cyl. Height approx. 6,000 mm Total height approx. 7,400 mm Outer surface: marbled Inner surface: 2B=IIIC ground Top end: Torispherical head 2 crane eyes Central threaded weld-on socket DN 100 to DN 40 with threaded socket DN 50 with fermentation lock valve DN 50 and check valve DN 50 Sprinkling ring Tank cylinder: Level indicator with bar, scale, and standpipe valve DN 15 Manhole 420x320 mm Test tap DN 15 1 ladder hook at the top Immersion stem sleeve for temperature display Downwardly extending CIP line with vent line DN 40 with connecting thread DN 50 Clear drain with angled seat valve DN 50 Cooling line CIP ball Bottom end: Torispherical head to Front-drawn bottom rim with DN 50 angle seat valve, flush with the tank wall Isdswlg Hnepfx Ahujtb Front-drawn outlet with butterfly valve/ball valve/angle seat valve, DN 50 outlet pipe with flange 4 height-adjustable spherical feet with washers Otherwise, as per photos

Condition: used, water tank capacity: 30,250 l, Upright stainless steel container made of V2A, wine/fruit juice tank with 3 cooling plates, partly with digital temperature measurement - used - Volume approx. 30,250 liters Diameter approx. 2,500 mm Cylindrical Height approx. 5,600 mm Total height approx. 7,200 mm Outer surface: marbled Inner surface: 2B=IIIC ground Top end: Torispherical head 2 crane eyes Threaded weld-on socket DN 100 centrally connected to DN 40 with threaded socket DN 50 with fermentation lock valve DN 50 with check valve DN 50 Sprinkling ring Tank cylinder: Level indicator with bar and scale and standpipe valve DN 15 Manhole 420x320 mm Test tap DN 15 Ladder hook at top Immersion stem sleeve for temperature display Downwardly drawn CIP line with vent line DN 40 with connecting thread DN 50 Clear drain with angled seat valve DN 50 Cooling line CIP ball Bottom end: Torispherical head to Front-drawn floor sill with DN 50 angled seat valve and DN 50 outlet pipe with flange 4 spherical feet, height-adjustable, with washers Available quantity: 24 Otherwise, see photos Itedpfx Ahswlg E Reuob
