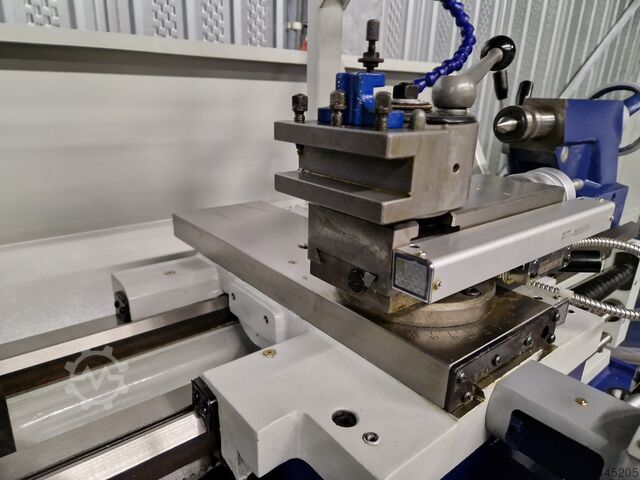

Metal lathe

Rogi WM360x1000

Condition: new, TC 165 x 750V Illustration shows MIOTAL® TC 180 x 1000 Center distance: 750 mm Center height: 165 mm Swing diameter over bed: Ø 330 mm Bed width: 190 mm Cross slide travel: 160 mm Top slide travel: 90 mm Spindle connection: DIN 55029 (Camlock) D 1 - 4 Spindle bore: Ø 40 mm Max. Chuck diameter: Ø 200 mm Spindle speed, infinitely variable: 30 - 2000 1/min Mechanical feed stages: 3 Motor power: 2.2 kW Longitudinal feeds Z: (40) 0.044 - 1.96 mm/rev Face feeds X: (40) 0.022 - 0.98 mm/rev Lsdpfxjir Igwj Aaqehc Metric thread: (32) 0.4 - 7.0 mm Thread inch: (32) 4 - 56 Gg/inch Thread module: (32) 0.4 - 7.0 Diametral thread: (32) 7.5 - 112 Quill diameter tailstock: Ø 40 mm Inner taper of quill tailstock: MK 3 Quill stroke: 100 mm Lateral adjustment: ± 10 mm Weight, approx.: 650 kg Features: - Acceptance protocol according to DIN - Precise, hardened and ground guides - Robust headstock with recirculating oil lubrication, precision bearing-mounted spindle, hardened and ground gears for long-lasting quality - Electromagnetic spindle brake (TC), frequency converter with electric braking device (V models) - Torsion-resistant machine beds made of MEEHANITE quality casting, stress-free annealed and multi-ribbed for extremely smooth running - Electrical equipment from SIEMENS/SCHNEIDER - Overload protection for feed gearbox - Pulse button for main spindle - CE / IEC as well as German documentation and German service Basic equipment (standard accessories): - Machine stand with splash guard rear panel - 3-jaw lathe chuck - 4-fold steel holder - Foot pedal with mech. brake device - Coolant device - Chuck guard and spindle cover in accordance with European safety standards CE - 1 Fixed center point for main spindle - 1 Fixed center point MK3 - 1 Test report - Safety devices and electrical equipment according to CE - Reducing sleeve for main spindle Operating tool Available options for this lathe: - 3-axis digital readout - Quick-change holder system Multifix also available as a gearbox version

Condition: like new (used), MACHINE DATA TORNI TACCHI FTC model 51 OVERALL DIMENSIONS Center distance 4000 m/m Height 1550 m/m Width 1400 m/m Length 6200 m/m Weight 10.000 Kg Swing over bed 1120 m/m Swing over carriage 810 m/m Swing over gap 1350 m/m Hole through spindle 123 m/m Number of speeds 18 Range of speeds 7-550 / 1’ Horsepower of motor 25HP Lhsdped Tm D Ejfx Aaqoc Morse taper № 6 Metric threads – inch – module – pitch 3 jaw chuck 450 m/m Face plate 850 m/m Extra face plate 1420 m/m Good condition

Condition: ready for operation (used), turning length 500 mm turning diameter over bed 297 mm turning diameter over slide rest 160 mm spindle bore 36.0 mm tool adaptor DIN 55022 Gr. 5 quill: 3 MK quill travel 90.0 mm turning speeds 30 - 3550 U/min motor speeds: 1410 / 2830 U/min total power requirement 3.3 kW voltage 380 V weight of the machine ca. 620 kg. range L-W-H 1420 x 700 x 1200 mm from a vocational school - in very good condition (!!) particularly suitable for medium-precision turned parts Features: - Robust lead/feed screw lathe - HEIDENHAIN 3-axis digital display “VRZ 773” - RÖHM three-jaw chuck Ø 160 mm - Foldable lathe chuck guard - Chuck key - MULTIFIX steel holder A, with 3x new inserts - Movable tailstock - Swiveling machine light - Control panel, front left Lhsdpfx Asxndbfoaqsc - Automatic feeds for face and upper support - Machine base, with cabinet door (storage space) - Chip splash guard rear panel - 1x empty tool cabinet - Emergency stop button - Operating instructions

Condition: new, Parallel lathe with clutch and display Fervi T085F10 with mechanical clutch, 3-axis display and semi-norton gear box. Available in stock subject to prior sale. WITH MECHANICAL CLUTCH, 3-AXIS DISPLAY AND SEMI-NORTON GEAR BOX. EQUIPPED WITH JOYSTICK FOR ENTERING RAPID FEEDS. WITH SINGLE-BLOCK CAST IRON BASE. Technical data: Center height 385 mm Max. diameter over bed 770 mm Max. diameter over carriage 575 mm Max. diameter over pocket 1050 mm Tool height 32 mm Lhsdpfx Aovbqlheaqoc Distance between centers 1000 mm Bar passage 105 mm Spindle attachment Camlock D1-8 Spindle speed (12) 36 - 1600 rpm Longitudinal feeds 0.063 - 2.52 mm/rev Cross feeds 0.027 - 1.07 mm/rev Metric threads (22) 1 - 14 mm Inch threads (26) 2 - 28 TPI Tailstock taper CM 5 Motor 400V 50/60 Hz 7.5 kW Coolant pump 400V 50/60 Hz 90 W Dimensions 2500 x 1550 x 1700 mm Net weight 3250 Kg Gross weight 3250.00 kg Accessories included: Self-centering chuck with 3 reversible jaws Ø 320 mm Platform with 4 independent jaws Ø 400 mm Flange Ø 600 mm Mobile steady rest Fixed steady rest Rotating tailstock CM 5 Thread comparator Lead screw protection Turret protection Spindle protection Rear splash guard Quick change turret type C LED lamp Cooling system Electro-mechanical foot brake Quick locking tailstock carriage Oil bath gears Adjustable leveling feet

Condition: good (used), functionality: fully functional, MACHINE IS IN GOOD WORKING CONDITION Machine need NEW TAILSTOCK Lsdpfx Aaovkycnoqohc Machine Has ben used in Switzerland, Specifications Manufacturer CAZENEUVE Model HB575
