FGT Graphic Machinery - Converting

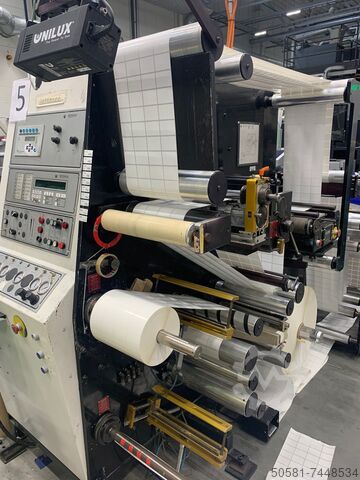

ROTOFLEX VLI 330

Year of construction: 2004, condition: ready for operation (used), Max. web width: 330 mm Hnodpoy Shz Hefx Aamjr Min. / max. paper weight: 90 – 160 g/m² Max. unwind roll diameter: 700 mm Max. rewind roll diameter: 400 mm Core diameter: Unwind: 76 mm / Rewind: 76 mm Max. speed: 230 m/min Description: Unwind unit, splicing table with clamping device, web guiding and web tension control (including automatic web fixing during stop operation), single punching station (no tools included) with rewind for the punching grid, up to 12 slitting knives in a cutting unit with separators for slitting and/or longitudinal cutting of the rolls, extended operator panel for settings, counter (labels or meters) as well as inspection control (missing label detection) with visual check, 2 driven rewind shafts for fast and efficient production. All safety devices are installed on the machine.

Condition: used, Year of construction: 2013, Year: 2013 Condition: very good Counter status: about 5.6 million Technical specification: - Laminating speed: 25 m/min - Minimum sheet size: 200 × 200 mm - Maximum sheet size: 560 × 800 mm - Paper weight range: 115–600 g/m² - Max. feeder pile height: 520 mm - Film thickness: 24–50 μm - Film types: OPP, PET, Nylon - Heating time (laminating roller): approx. 4 min - Sheet overlap accuracy: ±1 mm - Machine dimensions (incl. table): 263 × 100 × 147 cm - Air supply: min. 6 bar - Max. air consumption: 95 l/min - Max. pressing force: 15 kN - Power consumption: 7 kW - Machine weight: 650 k Hnodsy Iwiropfx Aamsr Configuration: - Suction feeder head - Vacuum pump - Automatic sheet overlap control - Double sheet / misfeed detection - Automatic sheet separation via built-in perforator - Anti-curl device (roller + bar) - Sheet separation detector - Separation roller with adjustable speed - Electronically controlled tearing section - Fixed delivery table

Year of construction: 2012, condition: excellent (used), functionality: fully functional, For sale: SMAG E-CUT S 330, a robust, versatile, and high-productivity roll-to-roll label finishing system. Designed for digital and conventional printing lines seeking flexibility, precision, and premium value-added finishes. This equipment is ideal as a complement to digital presses, enabling lamination, die-cutting, slitting, and rewinding in a single workflow. -> General data: - Model: E-CUT S 330 - Year of manufacture: August 2012 - First installation: February 2013 - Maximum web width: 330 mm - Maximum unwind roll diameter: 700 mm - Maximum speed: up to 35 m/min -> Configuration and Units: - Unwinder with ultrasonic web guide - Fully rotating flexo station - Lamination unit - Semi-rotary die-cutting with Z 160 magnetic cylinder Hnsdeyapy Ejpfx Aamer - K&B GapMaster for precise adjustments - Corona treatment for improved adhesion - Longitudinal slitting unit with up to 10 knives - 2 rewinders - Matrix rewinder -> UV System: In 2017, an air-cooled Phoseon UV-LED lamp was installed, improving energy efficiency and reducing maintenance. -> Key strengths: - High industrial productivity and reliability - Great versatility for both digital and flexo jobs - Precise and stable die-cutting - Ready for a wide range of materials - Ideal for short to medium runs with quick job changeovers -> Equipment condition: - Machine in good working order, well-maintained and operational. - Available for inspection and testing without obligation. Reason for sale: Restructuring / change in production strategy.
