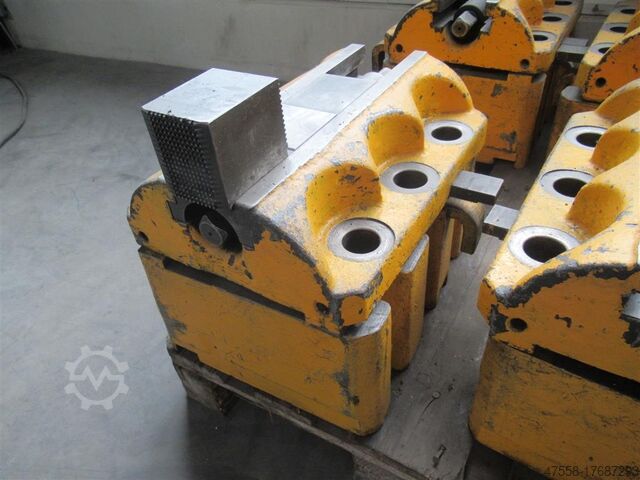

Clamping Units

Rottler

Condition: used, Technical details: vertical rapid adjustment: z-Achse: 1125 mm horizontal adjustment: x-Achse: 600 (+1000 elektrisch-manuell) mm cross adjustment: Frässupport y-Achse: 325 (340) mm control: Siemens 840D diameter of clamping surface: 3500/5800 mm turning diameter: max.6000 mm range of revolution per miute: Planscheibe: 1 - 12 U/min revolution per minute: Frässpindel: 1000-6000 U/min max. workpiece diameter on pallets: 6000 mm workpiece weight: 10 - 2000 kN tool taper: HSK-A-100 total power requirement: 120 kVA weight of the machine ca.: 35,0 t Annular Ring and Cylinder Machining Center Vertical special CNC machining center application: for turning-drilling and milling, grinding of annular parts (large gears, roller slewing rings, gear rims, special flanges, etc.) machine consists of two separate main groups: column unit and face plate/table unit - Feed drives via AC servomotors - cross adjustment milling support z-axis 325 (max.340) mm - Drive power of the faceplate drive 76 kW - Positioning of the table = 0,02mm What was renewed: - Axle motors were renewed (Siemens) - Central lubrication for large-diameter antifriction bearings of the turntable/spindle has been extended - partly the machine cabling Dsdpsu Idlfsfx Aktjkn - bladder accumulator and the safety valve i.D. *

Condition: ready for operation (used), Drilling capacity (steel): 100mm, max. pitch circle diameter: 7000mm, spindles: 2, spindle speed: 3000rpm, spindle mount: ISO 50, drill carriage stroke: 900mm, feed: 6m/min, power: 125kW. Machine dimensions X/Y/Z: approx. 13000mm/11000mm/5100mm, weight: approx. 18000kg. On-site inspection is possible. Dedpfx Aksvriq Rotskn

Condition: used, Year of construction: 2008, Technical details: bore capacity in steel (diameter): 100 mm max. pitch circle: 7000 mm number of spindles: 2 bore spindle turning speed range: 1 - 3000 U/min high speed spindle taper ISO: 50 bore slide stroke: 900 mm feed speeds: 1 - 6000 mm/min max. workpiece weight: 18000 kg total power requirement: 125 kW dimensions of the machine ca.: 13 x 11 x 5,1 m with CNC SIEMENS 840 D Workpiece clamping up to dia. 7000 mm The machine is equipped with 2 drilling spindle supports and through spindle coolant (50 bar)both supports can drill simultaneously. Spindle taper SK 50, 2 stages 1 -600 rpm 1650 Nm and 1 - 3000 rpm. 300 Nm Dkjdovb Drhopfx Aktsn Chip conveyor and coolant device *
