T-type column milling machine
Sachman T314HS

Name: Sachman T314HS
Brand: Sachman
Availability: InStock

Year of construction

2003

Condition

Used

Location

Torino TO, Italia Italy

T-type column milling machine Sachman T314HS

Show map

Machine data

Machine type:: T-type column milling machine

Manufacturer:: Sachman

Model:: T314HS

Year of construction:: 2003

Condition:: excellent (used)

Functionality:: fully functional

Price & Location

Location:: Torino TO, Italia

Call

Technical details

Travel distance X-axis:: 3,000 mm

Travel distance Y-axis:: 1,400 mm

Travel distance Z-axis:: 1,500 mm

Spindle speed (max.):: 14,000 rpm

Table width:: 1,400 mm

Table load:: 10,000 kg

Table length:: 3,200 mm

Overall weight:: 22,900 kg

Power:: 48 kW (65.26 HP)

Details about the offer

Listing ID:: A202-23585

Update:: 06.10.2025

Description

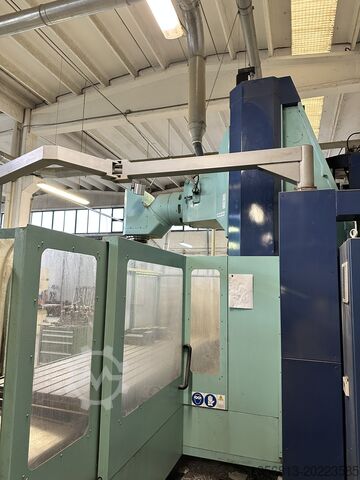

SACHMAN T314 HS – Moving Column – SELCA S4045PD
Travelling column milling machine along Y with a table traversing on X (table always supported by the bed)
Travels: X 3000 • Y 1400 • Z 1500 mm
Chodpfx Aoxlgxbebwoc
Table: 3200 × 1100 mm, capacity 10 t, T-slots 22 H7 (8 pcs)
Head: ELKOS bi-rotary indexed head, 1' increments, spindle up to 14,000 rpm, HSK-A80
CNC: SELCA S4045PD
Rapid feeds: 18–20 m/min
Condition: available for inspection under power; test runs on request.

The listing was translated automatically. Translation errors are possible.
