Press brakeSafanDarley
E-BRAKE Premium 35-1250 ES
Machine data
- Machine type:
- Press brake
- Manufacturer:
- SafanDarley
- Year of construction:
- 2020
- Condition:
- excellent (used)
- Functionality:
- fully functional
Price & Location
- Location:
- Świerszcza 78, 02-401 Warszawa, Polska
Technical details
- Pressing force:
- 35 t
- Operating speed:
- 10 mm/s
- Table width:
- 60 mm
- Total height:
- 2,510 mm
- Overall weight:
- 3,250 kg
- Travel distance Y-axis:
- 590 mm
- Working width:
- 1,250 mm
- Back gauge speed R-axis:
- 150 mm/s
- Back gauge travel distance R-axis:
- 100 mm
- Back gauge travel distance Z-axis:
- 1,000 mm
- Height adjustment type:
- electric
- Rapid traverse Y-axis:
- 110 m/min
- Working length:
- 1,250 mm
Details about the offer
- Listing ID:
- A186-12571
- Reference number:
- M7775
- Update:
- 23.09.2025
Description
Manufacturer Netherlands - Lochem
We are the official representative of SafanDarley in Poland.
- Servo-electric drive
- stroke 300 mm
- CNC control in Y1 / Y2 / X / R axes

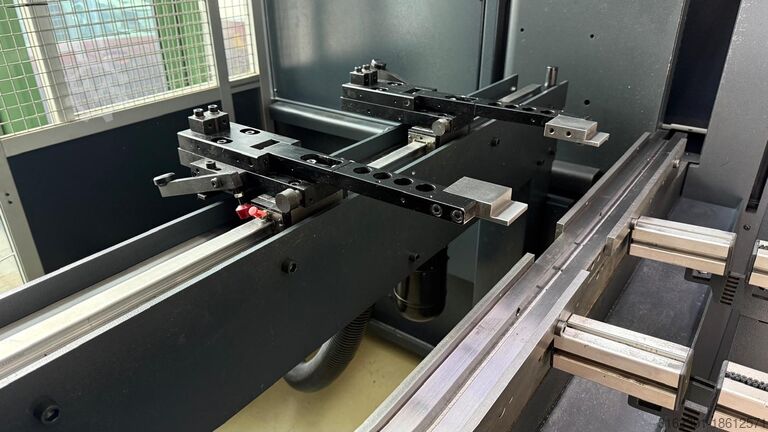

- rear bumper in 2 CNC axes - X and R
- 2D graphic control - model EC20

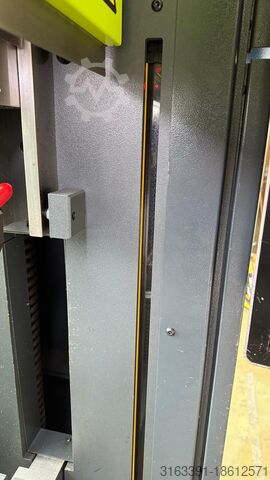

- light curtain - programmable

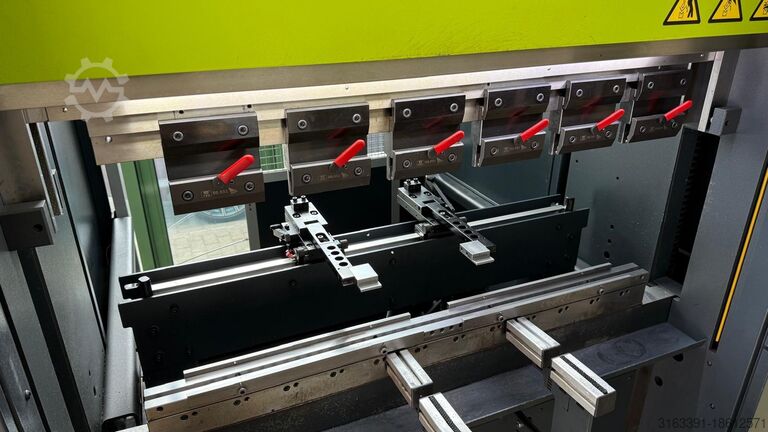

- WILA tool system - upper clamp
- WILA tool system - lower clamp possible dies 4V / 2V / 1V / type T with a base of 60 mm
Machine in very good condition after technical inspection by the manufacturer.
Max. pressure kN 350
Max. bending length mm 1,250
Max. construction height Q, standard (without tool adapter and table) mm 650
Max. press stroke mm 300
Upper beam positioning accuracy mm +/- 0.01
Max. correction for Y1 - Y2 programmable mm +/- 2.50
Max. Y-axis approach speed* mm/sec 180
Max. bending speed* mm/sec 10
Max. return speed mm/sec 180
X-axis positioning speed mm/sec 350
Max. range of stop movement - X axis mm 550
Max. range of stop movement (second stop point) - X axis mm 575
Max. range of stop movement (third stop point) - X axis mm 1,000
Repeatability of back stop positioning mm +/- 0.02
Max. range of movement of the stop - R axis mm 150
Repeatability of positioning R axis mm +/- 0.10
Speed of positioning R axis mm/sec 100
Weight kg 3,250
Connected power kW 11
Machine length mm 2,230
Machine width mm 1,775
Machine height - transport dimension mm 2,510
Mains voltage 3/N/PE 50Hz – 400/230V
Lsdpjv Eam Nsfx Akujrl
Machine connected - ready for presentation at the headquarters in Warsaw.
Immediate availability
The listing was translated automatically. Translation errors are possible.
