3D scanner

Scantech Digital GmbH Trackscan Sharp49

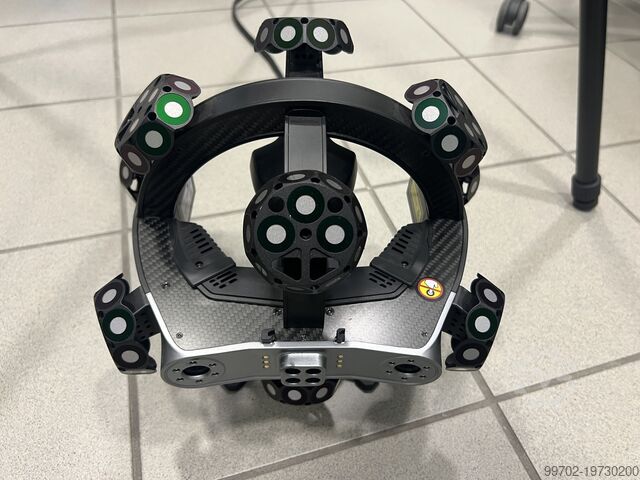

The 3D laser scanner Trackscan Sharp49 offered here is a mobile, tracker-based 3D scanner, manufactured in 2023, with an original price of €100,000.00. Its special feature is that it allows you to digitize components without having to attach targets to the component. This is possible because targets are already located on the housing of the laser scanner and are registered by the tracker unit. This measuring device is very suitable for the rapid digitization of large components of several meters in size, while maintaining a relatively good level of accuracy.
The device was calibrated in an ISO 17025 accredited laboratory upon delivery. We recommend having the manufacturer perform a calibration upon taking possession of the device.
The scan software is included in the offer.
Optionally available is a touch probe for tactile point measurement on objects and a laptop.

An excerpt of possible application areas:
- Digitization of manufactured components for subsequent metrological evaluation, e.g. as part of initial sample tests
- Digitization of objects/spare parts for subsequent reverse engineering, e.g. for the production of a spare part or design changes
- Digitization of larger machine systems and room areas for planning and simulation purposes
- Digitization of vehicles in the tuning sector

Technical specifications:
3 laser modes
Scan rate: Up to 2,600,000 measurements/s
Volume accuracy:
at 10.4 cubic meters: up to 0.049 mm
at 28.6 cubic meters: up to 0.067 mm
at 49.0 cubic meters: up to 0.089 mm

Recommended component size: 0.1m - 12m
Weight, tracker case fully loaded: 37 kg
Nlsdpfow Id E Eex Akusb
Weight, scanner case fully loaded: 21 kg
Weight, tracker unit: 6.8 kg
Weight, scanner unit: 1.75 kg

The device can be inspected while powered on.
