Center lathe

Schaerer UD632

Lathe Schaerer, model UD632

Specifications:
- Working height above floor: 1120 mm
- Centre height above flat bed: 320 mm
- Swing over bed: 660 mm
- Swing over cross slide (short): 450 mm
- Swing over cross slide (long): 420 mm
- Swing in gap: 710 mm
- Drive power: 15 / 22 kW
- Spindle torque: 3000 Nm
- Max. workpiece weight between centres without steadies: 1500 kg
- Max. workpiece weight between centres with one steady rest: 2200 kg
- Bed width: 460 mm

Main spindle:
- Spindle head with centring cone: 55022, size 8
- Front spindle bearing diameter: 120 mm
- Through spindle bore: 72 mm
- In front, taper 1:20: 80 mm
- Internal taper: Morse 5

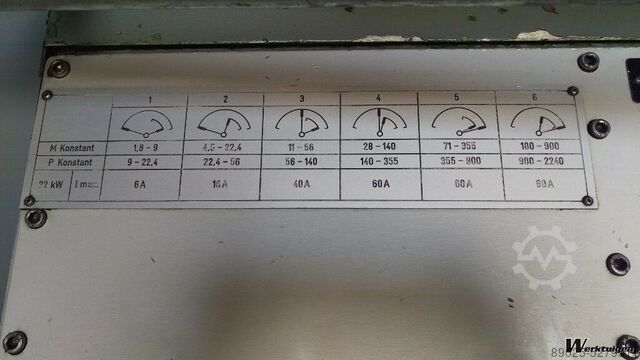

- Speeds: 1.8 – 2240 rpm

Carriage feeds (number): 3x32
- Longitudinal feed A, 1:1: 0.07 – 1.12 mm/rev
- Longitudinal feed B, 4:1: 0.31 – 4.5 mm/rev
- Longitudinal feed C, 24:1: 1.8 – 28 mm/rev
- Cross feed A, 1:1: 0.035 – 0.56 mm/rev
- Cross feed B, 4:1: 0.16 – 2.24 mm/rev
- Cross feed C, 24:1: 0.9 – 14 mm/rev
- Rapid traverse longitudinal: 5000 mm/min
- Rapid traverse cross: 2500 mm/min

Leadscrew:
- Pitch: 12 mm
- Diameter: 50 mm

Thread cutting:
- Metric threads (number): 3x32
- Metric thread range A: 1 – 12 mm
- Range B: 3.25 – 48 mm
- Range C: 21 – 288 mm
- Inch threads range A: 24 – 15/8 TPI
- Range B: 6 – TPI
- Range C: 1 – 1/12 TPI
- Module threads A: 0.5 – 6 Mod
- B: 2 – 24 Mod
- C: 10.5 – 144 Mod
- DP threads A: 48 – 3 DP
- B: 12 – 1 DP
- C: 1 – DP

Cross slide:
- Width: 310 mm
- Cross slide short: 465 mm
- Cross slide long: 1000 mm

Gsdpfx Aajgbd E Defsip
Top slide travel (manual): 150 mm
Top slide travel (automatic): 180 mm

Tailstock:
- Quill diameter: 90 mm
- Quill travel: 200 mm

Weight (standard version): 3460 kg
Year of manufacture: 1982

Special features:
- Machine is in very clean condition
- Double prism under-bed for high precision
- Digital read-out HEIDENHAIN, model ND 780
- Infinitely variable spindle speed!

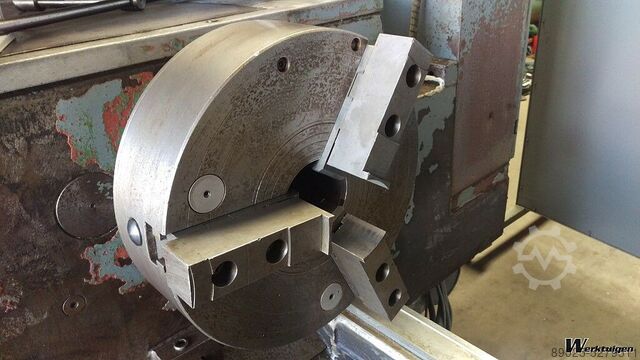

- 3-jaw chuck FORKARDT
- Automatic lubrication system
- Automatic tool post
- Rapid traverse on all three axes
- Chip guard
- Machine lighting

Delivery conditions:
- Delivery time: ex-stock, subject to prior sale
- Delivery: ex Baarle-Nassau
- Payment: prior to collection
- Prices: net, excl. VAT

Disclaimer: Machinehandel De Leeuw BV cannot be held liable for any discrepancies in the technical data in this offer and the actual machine.
