Precision lathe

SCHAUBLIN 102 N

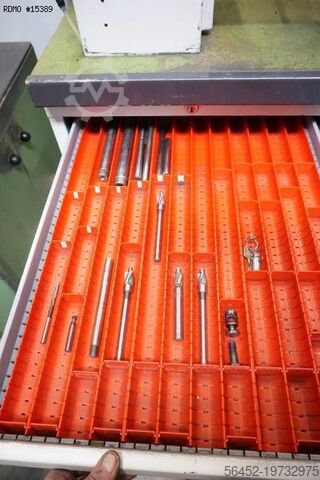

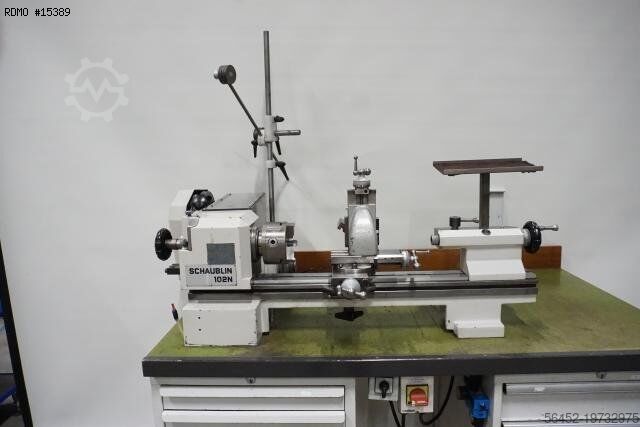

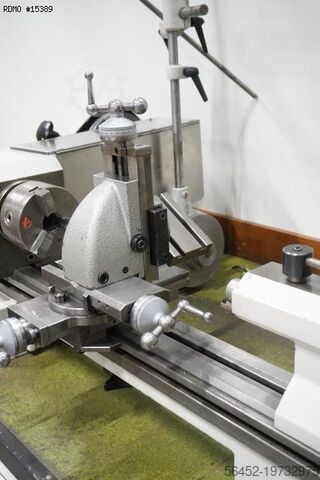

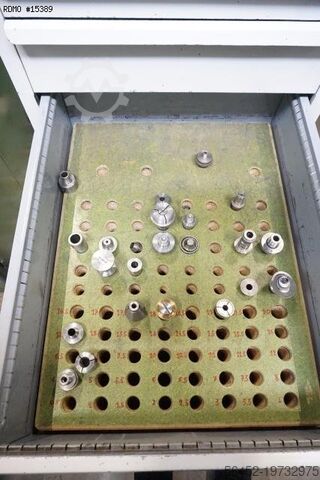

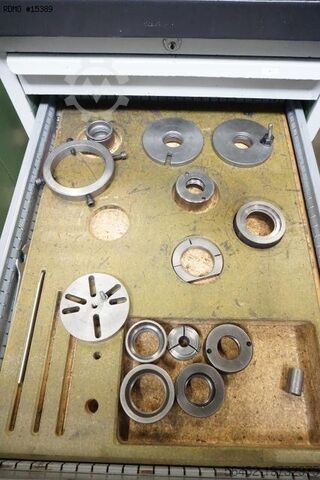

Condition: excellent (used), The used SCHAUBLIN 102N bench lathe is a small-sized Swiss precision manual lathe, 102mm center height, 400mm center distance, 20mm spindle hole. Ndodjwqxcxepfx Afxsc 2 similar machines available (one with short bed and quick tooling and the other with long bed and gear head); already complete with electrical panel and safety devices; equipment and conditions as per photo.

Condition: used, TECHNICAL DETAILS - center height : 102 [mm] - Max. diameter on bench : 200 [mm] - Distance between centers : 470 [mm] - Type of spindle clamp : W20 - Boring : 20 [mm] - Passage of bar in clamp : 14.5 [mm] WEIGHT & DIMENSIONS - Machine floor space : 1500 x 800 [mm] Ndedpsw Ihttjfx Afxec - Machine height : 1300 [mm] - Machine weight : 500 [kg]

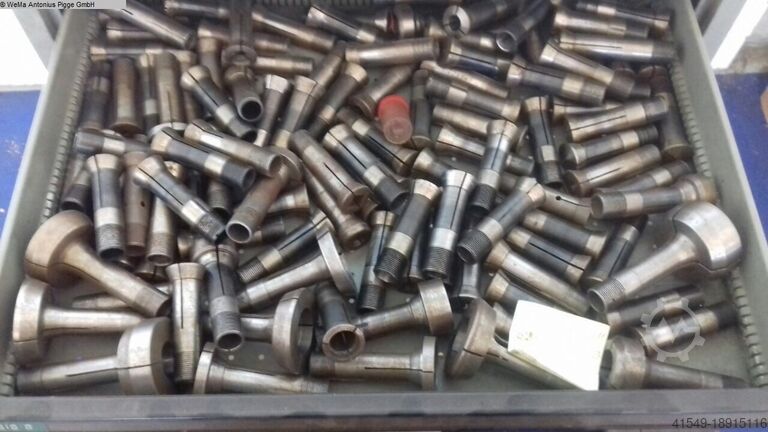

Condition: excellent (used), functionality: fully functional, High-Precision Leadscrew Lathe Schaublin 102N-VM Technical Data: >> Machine No. 283152 >> Centre height: 102 mm >> Centre distance: 450 mm >> Spindle bore: 25 mm >> Longitudinal feeds: 8 steps from 0.02 to 0.3 mm/rev >> Metric threads: 20 pitches from 0.25 to 4 mm >> Imperial threads: 25 pitches from 80 to 6 TPI >> Tailstock: Morse taper 2 >> Infinitely variable speeds from 270–3000 rpm >> Weight: approx. 700 kg Accessories: >> 3-jaw chuck, 2 sets of jaws >> Tool post with 6 tool holders >> Quick-clamping device, draw tube and 34 collets >> Coolant system Ndodjwvq Tmepfx Afxsc >> Cutting tools, drill chuck (see images) >> Operating manual with spare parts list About the machine: For sale is a Schaublin 102VM leadscrew lathe in very good condition. The machine is, of course, fully functional. All slides operate smoothly and evenly. The 102VM runs quietly even at high speeds. The gear set for thread cutting is present, but is probably not complete. Take the opportunity to view and test the machine under power on site and see its good condition for yourself.

Condition: used, centre height 102 mm centre distance 450 mm spindle bore 25 mm spindle speed: 220 - 2600 Accessories were not checked for completeness Nedpfx Afowbi Hpsxsdc Cabinets are not included in the scope of delivery

Condition: good (used), Center height: 102mm Distance between centers: 450 mm Spindle bore: 32mm reduction gear left.- Right running 2-stage drive Vario Speed: 270-3000 U / min knee circuit Turning diameter over bed: 200 mm Spindle nose: W 20 Tailstock: MK 2 Dimension (LxWxH): approx 140x56x123 cm Weight: approx 550 kg Accessories available Guide available Different "Schaublin 102" models in stock! Ndjdscpznhjpfx Afxsc

Condition: used, Workspace Tip height 102 mm Centre width - with normal headstock 450 mm - with reduction gear headstock 375 mm - over the cheek 200 mm - over the slide 120 mm Headstocks spindle nose for collets type Schaublin W25 spindle bore 25 mm Collet bore 20 mm Reduction ratio of the gearbox 1:5 Cheek Height x width x length 168 x 130 x 1000 mm cast iron cheek, trapezoidal profile like lathe 102 N and dovetail guide hardened and ground. Slide Largest travel on the cheek 400 mm Tool slide width - length 80 - 194 mm Path manual adjustment 90 mm Center height above tool slide 20 mm Nedpfobxkl Tox Afxsdc Shaft of the lathe tools 12 x 12 mm cross slide width - length 94 - 300 mm Path manual adjustment 100 mm Bed slide length of the guide on the cheek 250 mm Lead screw Guiding spindle for longitudinal turning and threading, Ø 40 mm Lead screw hardened, thread ground, pitch 4 mm Speed range Speed 270 - 3000 rpm Longitudinal turning 0.02 - 0.3 mm/rev. Thread cutting Largest pitch with standard change gear set 4 mm Machine plate for 20 metric pitches 0.25 - 4 mm Machine plate for 25 english pitches 80 - 6 G/" Tailstock Diameter of the quill 30 mm Inner taper of the quill 2 MORSE Distance of the quill 80 mm Cooling device Coolant tank - capacity 23 litres Net weights Lathe on workbench, approx. 225 kg Lathe on box base, approx. 550 kg

Condition: good (used), Center height: 130 mm Distance between centers: 450 mm Speed: about 55-3000 U / min Pneumatic clamping system Spindle nose: W 25 Div. W25 collets available Div. holder available BERGER LAHR axis motors Combitec EIP E-500 Control Manual control available Coolant system available Machine lamp available Machine feet Available Dimension (LxWxH): approx 1400x560x1230 mm Weight: approx 550 kg Njdpfx Ascuhvusfxedc Different "Schaublin 102" models in stock!

Condition: excellent (used), Year of construction: 2005, Schaublin 102N-VM-CF high precision Swiss lathe Year: 2005 max. admitted diameter over the bed 200 mm max. admitted diameter over the slides 120 mm Height of centers 102 mm Distance between centers 450 mm Bed length 1000 mm Bed height 168 mm Power 4.2 KW Spindle speed 100 - 3000 RPM Spindle W25 Transverse stroke, X axis 100 mm Resolution, X axis (radius) 0,01 mm Longitudinal stroke, Z axis 90 mm Resolution, X axis (radius) 0,01 mm Lead screw - 8 longitudinal feeds - Larger feeds possible when using the thread control for turning Max. cross section of tool shank (Multifix system) 10x10 mm Bar holder (MULTIFIX system) diameter 20 mm Height and side-adjustable tailstock: Internal taper of the sleeve Mk2 Spindle OD 30 mm Spindle stroke 80 mm Coolant tank capacity 23 L Electrical power supply voltage 400 V Overall dimensions: length x depth x height: 1500 x 510 x 1550 mm Accessories / options: - ACU-RITE digital readout unit, 3 axis X-Z-Z1 X resolution 0.001[mm] Z resolution 0.005[mm] Z1 resolution 0.005[mm] - Coolant system - Rear sheetmetal guard Nodpfxsw N Rh As Afxedc - Double Start/Stop pedal and spindle rotation direction inversion - Schaublin W25 collet set - Cast iron chuck W25 Ø110[mm] with jaws - Quick-change toolholder turret MULTIFIX-A with holders - Driving system for auxiliary equipment with BELT adjustable and swivelling belt-tensioning attachment drive device complete with motor belt Ø6x2’500[mm] - Tailstock - etc... Under power in our warehouse.
