Cylindrical grinding machine

Schaudt

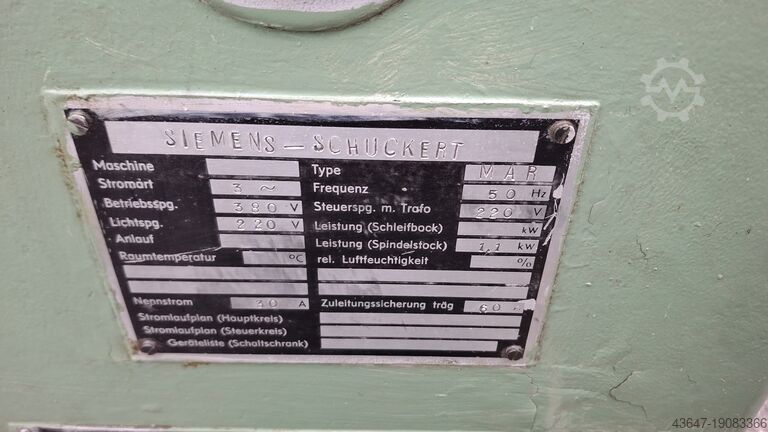

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 113981, center height: 180 mm, grinding wheel diameter: 400 mm, grinding wheel width: 100 mm, overall weight: 5,000 kg, No minimum price – guaranteed sale to the highest bidder! Placing a bid obliges timely collection between 08/04/2026 and 16/04/2026! TECHNICAL DETAILS Centre height: approx. 180 mm Centre distance: approx. 2,000 mm Grinding wheel diameter: approx. 400 mm Grinding wheel width: 100 mm Dodpfxsyladfe Ah Iecd MACHINE DETAILS Operating voltage: 380 V Frequency: 50 Hz Control voltage: 220 V Rated current: 30 A Connected load: 7.5 kW Dimensions & Weight Dimensions (L x W x H): 7,000 x 2,000 x 1,800 mm Weight: 5,000 kg

Condition: used, Year of construction: 2002, operating hours: 65,434 h, General Specifications Machine Type: Universal Cylindrical Grinding Machine Year of Manufacture: 2002 Control System: SIEMENS 840D Grinding Length: 600 mm (between centers) Dcodpfxovzrius Ah Ijd Max. Swing Over Bed: ~300 mm (approximate, depending on configuration) Max. Workpiece Weight: ~150 kg (depending on setup) Grinding Wheel Grinding Wheel Diameter: ~400-500 mm (standard) Grinding Wheel Width: ~50-100 mm (depending on application) Grinding Wheel Speed: ~30-60 m/s (adjustable) Workhead Workhead Spindle Speed: ~10-500 rpm (variable, depending on workpiece material and grinding requirements) Workhead Spindle Taper: Typically Morse taper or custom taper for specific applications Tailstock Tailstock Quill Travel: ~50-100 mm (adjustable) Tailstock Taper: Morse taper (e.g., MT4 or MT5, depending on configuration) CNC System Control Type: Siemens, Fanuc, or other CNC systems (depending on configuration) Axes: Typically 2-4 axes (X, Z, U, and optionally B-axis for angular grinding) Positioning Accuracy: ~0.001 mm (1 micron) or better Coolant System Coolant Tank Capacity: ~200 L Coolant Pump Power: ~1-2 kW Power Requirements Main Motor Power: ~10-15 kW (grinding spindle) Total Power Consumption: ~20-30 kW Dimensions and Weight Machine Dimensions (L x W x H): ~3000 x 2000 x 2000 mm (approximate) Machine Weight: 5000 KG Applications Precision grinding of cylindrical and non-cylindrical workpieces Suitable for small to medium-sized components in industries like automotive, aerospace, and tool manufacturing

Condition: refurbished (used), Year of construction: 2020, Machine Type: Cylindrical Grinding Machine Manufacturer: Schaudt Maschinenbau GmbH Model: PS 4 Year of Original Manufacture: 1986 Renovation/Retrofit: 2020 Control System (Post-Retrofit): Siemens CNC SINUMERIK 840D General Specifications Dcedsw Avrzspfx Ah Iod Application: External cylindrical grinding Grinding Method: Plunge, traverse, face grinding Control Type: CNC (Siemens retrofit in 2020) Machine Weight: Approx. 3,500 – 4,500 kg Installation Area: Approx. 3.5 m x 2.0 m Workpiece Capacity Center Height: 180 mm Distance Between Centers: 1000 mm (varies by version) Max Workpiece Diameter: 360 mm Max Workpiece Weight: ~150 kg between centers Grinding Spindle Grinding Wheel Diameter: 400 mm Grinding Wheel Width: 50 mm Bore: 127 mm Peripheral Speed: Up to 45 m/s Spindle Drive Power: ~7.5 kW Spindle Speed Range: Up to 1,500 – 2,500 rpm (depending on wheel size) Headstock Type: Fixed or rotating spindle Speed Range (if motorized): ~30 – 500 rpm Taper: MK4 or similar Drive: AC Servo (post-retrofit) Tailstock Type: Manual or hydraulically actuated Quill Stroke: Approx. 50 mm Quill Diameter: ~75 mm Axes X-Axis (infeed): CNC-controlled Z-Axis (longitudinal): CNC-controlled Resolution: 0.001 mm Drive Type: Digital servo motors with ball screw Position Feedback: Absolute/Incremental linear encoders Coolant System Coolant Tank Capacity: Approx. 150 – 250 liters Coolant Pump: High-pressure, with filtration system Other Features (Post-Retrofit) Siemens HMI with touch interface Electronic handwheels (MPG) Updated safety system and enclosure New electrical cabinet with ventilation and cooling Optional AE sensor for gap detection or touch dressing

Condition: ready for operation (used), Year of construction: 1989, number of axes: 2, This Schaudt Mikrosa SASL 125 was manufactured in 1989. A centerless external grinding machine, it features NC-controlled operations and hydrodynamic axis bearing. Both wheels can be dressed via a controlled axis. Refurbished by UHLMAN Werkzeugmaschinen-Service in 2021/22, it has been regularly maintained. Consider the opportunity to buy this Schaudt Mikrosa SASL 125 centerless grinding machine. Contact us for more information. Additional equipment • Optional: Additional equipment available Dcsdpfx Ahjx Enapo Ijd Machine Benefits Technical Machine Benefits • Hydrodynamic axis bearing • Regular maintenance during series production • Refurbished by uhlman werkzeugmaschinen-service in 2021/22

Condition: good (used), Year of construction: 2002, operating hours: 9,999 h, functionality: fully functional, machine/vehicle number: 120231, Cylindrical Grinding Machine SCHAUDT / Mikrosa PS 51 N 600 Technical Data – Schaudt / Mikrosa PS 51 N 600 Machine type: Universal / External Cylindrical Grinding Machine Year of manufacture: 2002 Control: Siemens 840D Grinding length (between centers): 600 mm Center height / Height over bed: 180 mm Maximum grinding diameter over bed: approx. 300–360 mm Max. workpiece weight (between centers): approx. 150–200 kg, depending on configuration Dodpfx Asxdb R Njh Iecd Grinding spindle power: approx. 22 kW Grinding wheel width: e.g., 220 mm on premium versions; diameter depending on equipment approx. 400–500 mm Grinding wheel speed / surface speed: On some versions approx. 45 m/s; variable depending on equipment Total weight: approx. 10 t

Condition: used, Year of construction: 1994, grinding diameter 300 mm grinding length 600 mm workpiece weight 80 kg grinding wheel diameter 508 mm Control Siemens type 840 C grinding spindle speed 45 m/s power capacity - grinding motor 7,5 kW z-axis 865 mm Dcodpfxoyqv A Uo Ah Iod x-axis 250 mm centre distance 1000 mm number of turns of spindle head 1-800 U/min weight of the machine ca. 4,85 t The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 2000, Lot consists of: (1) CNC grinder Technical details: Dedpfxjym S S Ds Ah Ijcd center height 180 mm, working range Ø 200 x 600 mm, one grinding slide / travel 150 mm, CNC SIEMENS SINUMERIK 840D, dimensions (LxWxH) approx. 3 x 2 x 2 m, weight approx. 6.5 t.

Condition: used, Technical details: grinding length: 600 mm centre height: 180 mm swing dia.: 360 mm workpiece weight: 80 kg max. dia. of grinding wheel: 500 mm grinding wheel width: 80 mm Dcjdpfsrkr U Ejx Ah Ied grinding wheel hole diameter: 203,2 mm peripheral speed: 45 m/sec There is also a 3200 liter coolant tank including cooling unit + fire extinguishing system. *

Year of construction: 1989, condition: excellent (used), control Siemens 840D solution line Grinding length outside max. 400mm Inner grinding length 200mm Grinding wheel diameter: max. 400mm Grinding wheel width: max. 63mm Outside grinding diameter 150mm Inner grinding diameter 200mm Tailstock travel: 400mm Dcedpfx Aofwx A Ssh Ied General overhauled in 2016 !

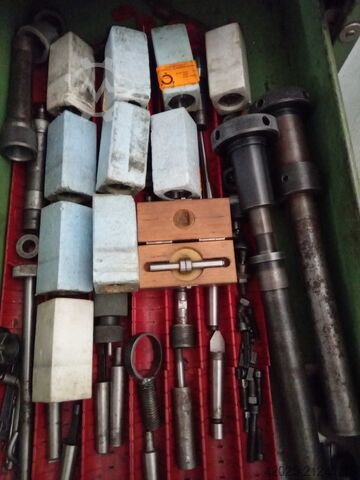

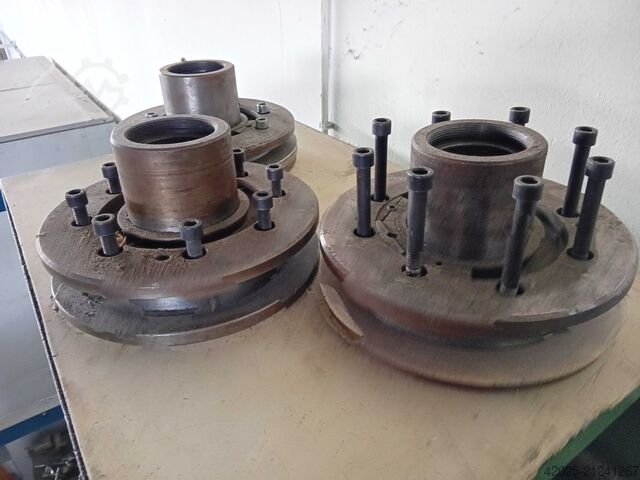

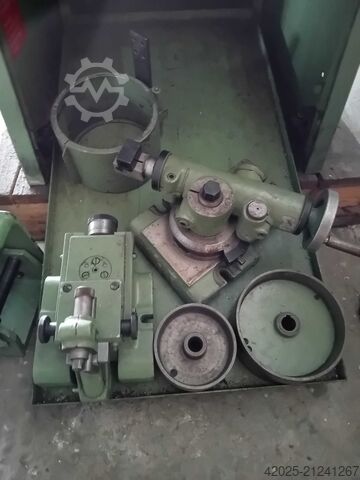

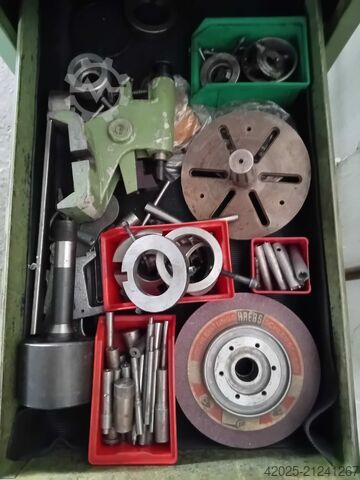

Condition: used, Spare or accessory parts for SCHAUDT. Parts stored for a longer period; the flanges are definitely from a SCHAUDT cylindrical grinding machine. All other parts may belong to a SCHAUDT, but no guarantee is provided for this! Dedpoykiqxsfx Ah Iscd
