Cylindrical grinding machine

Schaudt PF5 1000-2500 mm

Condition: reconditioned (used), Year of construction: 2006, functionality: fully functional, center height: 175 mm, type of input current: three-phase, feed length X-axis: 285 mm, feed length Z-axis: 1,150 mm, overall weight: 5,700 kg, year of last overhaul: 2025, input voltage: 400 V, workpiece spindle speed (max.): 1,500 rpm, CNC Cylindrical grinder STUDER S33 TECHNICAL CHARACTERISTICS: Year of manufacturing: 2006 CNC control: FANUC 21i-TB Software installed: StuderGrind Centre distance: 1000 [mm] Height of centers: 175 Stroke X axis: 285 [mm] Min. Stroke speed X axis: 0.001 [mm/min] Max. Stroke speed X axis: 5000 [mm/min] Resolution X axis: 0.0001 [mm] Stroke Z axis: 1150 [mm] Min. Stroke speed Z axis: 0.001 [mm/min] Max. Stroke speed Z axis: 10000 [mm/min] Resolution Z axis: 0.0001 [mm] B axis swivelling stroke: -15 [°] / +195 [°] B axis indexing precision: Hirth 1 [°] Automatic B axis: Yes Workpiece spindle nose: MT5 Workpiece spindle min. speed: 1 [rpm] Workpiece spindle max. speed: 1500 [rpm] Max. part weight in part holder headstock between centres: 120 [Kg] Type of attachment tailstock: MT3 Tailstock quill stroke: 35 [mm] Tailstock quill diameter: 50 [mm] Tailstock fine adjustment: +/- 40 [mm] Supply voltage: 400 [V] Total power required: 20 [kVA] Weight: 5700 [Kg] INCLUDED EQUIPMENT: x1 internal grinding spindle type 102540B – speed: 40,000 [rpm] x1 swiveling dressing attachment x1 rotating dressing device DR.KAISER type C42 DC 058 – speed: 25,000 [rpm] – 0.17 [kW] x1 frequency converter MAAS type SPS-9250 x1 pneumatic tailstock lift Djdpfxexg Ixxs Admela x1 pneumatic upper-table lift x1 longitudinal slide with rotary table - swiveling up to 8.5 [°] x1 automatic B-axis turret wheelhead – Hirth gearing 1 [°] x1 C-axis for thread and form grinding x1 workpiece probe MOVOMATIC C25 x1 contact control device DITTEL SENSITRON 2 x1 semi-automatic wheel balancing device MPM type 3.BMT100M x1 paper filtration unit STREULI AG x1 mist extraction unit AFS Air Filter Systeme x1 electrical cabinet air conditioner x3 external grinding wheel flanges x2 lifting blocks x1 axis bracket (for transportation of the machine) x1 set of operating manuals (French, English, and German) Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Similar machine to the brands Okamoto, ELB, GER, Tacchella, Karstens, Jones & Shipman, Jung, Favretto, Blohm, Studer. Also see surface grinder, lathe, machining center, milling machine.

Year of construction: 1969, condition: ready for operation (used), Max. grinding depth: 80mm, distance spindle table: 145mm, spindle bore: 28mm, connected load: 7kW, length: 2100mm, width: 1400mm, height: 950mm, weight: 1.6t, with documentation, an inspection is possible. Dledpfx Ajqzkdmsdmsa

Condition: used, TECHNICAL DETAILS - Grinding diameter : 3 / 80 [mm] - Grinding depth : 80 [mm] - Max. part length : 250 [mm] - Max. part diameter : 240 [mm] - Centers height : 130 [mm] - Part-holder headstock swiveling : -5 / +60 [°] - Bar clearance : 25 [mm] - Metric shaft nose internal taper : 40 - Part-holder spindle speed with continuous adjustment : 350 / 1.200 [Rpm] - Strokes X/Z : 50 / 300 [mm] - Installed power : 17 [kW] - Dimensions (LxDxH) : 200 x 180 x 160 [cm] Dedpfouhbmksx Admjla - Machine weight : 2.200 [kg] EQUIPMENT - Automatic downfeed - 1 VOUMARD M45DR internal spindle : 45.000 [Rpm] - Automatic parts loader - Hydraulic wheel dresser - 3 jaws chuck - Coolant tank * with coolant through part center

Condition: used, Year of construction: 2017, grinding length 1500 mm Dledpfswm Rqgox Admja centre height 180 mm weight of the machine ca. 3,9 t dimensions of the machine ca. L: 4900 x 1650x 1800 m

Condition: new, functionality: fully functional, IG 482 SD Specifications Motors Grinding Spindle Motor 50HP, 200 - 1180RPM Rotary Table Motor 3HP, 5 - 70RPM Servo Column Motor 5KW Coolant Pump 3/4HP, 45GPM Table Diameter 48" Table Features Thru-spindle vacuum/pressure feed Variable strength 3/4" fine pole electromagnetic chuck Contact a DCM Technical Specialist for custom table & fixturing options Capacity Max Swing Diameter 52" Max Part Height 12" with grinding segments retracted 10-1/2" with a 2A2T wheel Grinding Wheel Options 2A2T Suberabrasive or Conventional Segments 26" diameter Cortland Style Hub & Segment 26" diameter Ask a DCM Technical Specialist about our wide variety of available abrasives Feed System Servo driven Z-axis with precision ballscrew and encoder Feedrate variable from 0.0006 IPM to 0.1000 IPM Servo drive X-axis for precision positioning Electrical Requirements 460V, 50/60Hz, 3 phase Consult DCM Technical Specialist regarding operation on other voltages Dimensions 137" wide, 82" deep, 88" high Weight Machine & Swarf System: 14,500lbs. (estimated) Dsdjubbqijpfx Admsla Electrical Box: 1,500lbs. (estimated) IG 482 SD FEATURES • 48” variable speed electromagnetic chuck with auto demag cycle • 50HP grinding spindle motor • Integral coolant filtration & mist collection systems • Easy to operate touchscreen controls • Mitsubishi FX5U PLC • 3 Grinding Modes - Conventional, Incremental and Grind to Height • Regrind feature allows re-running previous grind sequence without reprogramming • Continuous grind – the machine can automatically cycle through grind 1, 2 & 3 • Servo-driven precision control of both Z and X-axis with absolute home positioning • The cross slide X-axis moves with manual pulse generator • Backlash compensation on both axes • Password protection & operator lockout features • SECS/GEM Interfaced to work with 3rd party Scada type software • Password protection and operator lock-out features • Automatic routine maintenance reminders • 120" x 82" Footprint

Condition: good (used), Year of construction: 1990, Ref. -No.: 10301 Manufacturer: TITAN Type: RU 350 x 1-1500 Year of construction: 1990 Type of control: Konventionell Djdpfjxmd Rwjx Admela Storage location: Halberstadt Country of origin: USA Max. Grinding length: 1.500 mm Max. Workpiece Weight: 300 kg Grinding Diameter: 350 mm Max. Dia. Of Grinding Wheel: 280-500 mm Grinding Wheel Width: 80-100 mm

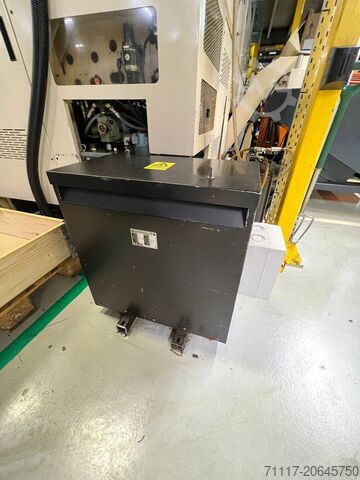

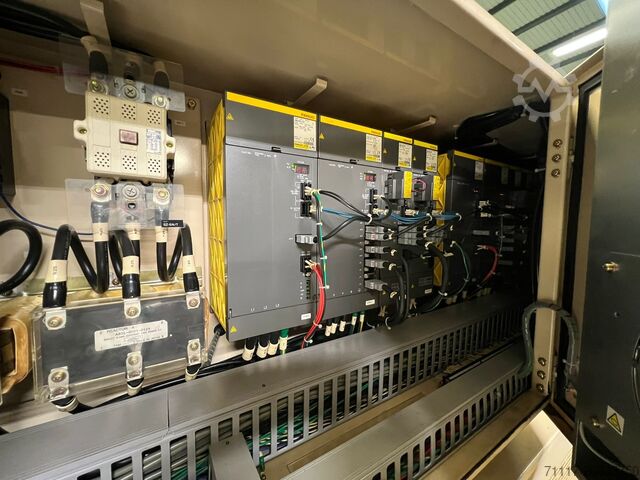

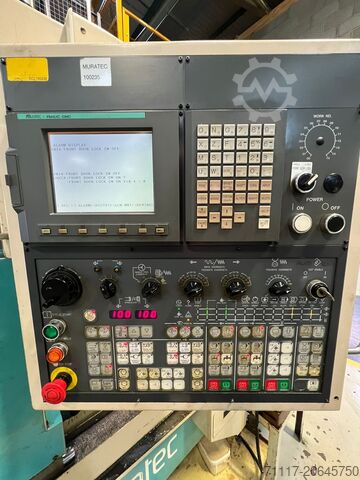

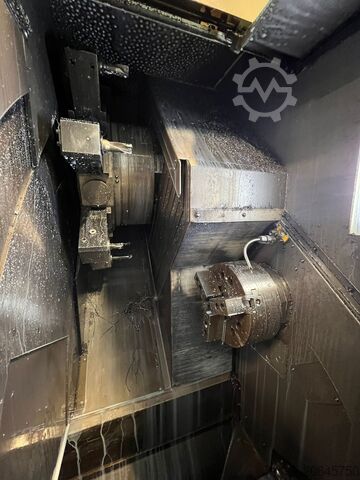

Condition: excellent (used), operating hours: 8,500 h, functionality: fully functional, * Muratec MT 25 MC. * Extremely well equipped, equipment value: €30,000–35,000. * 7 controlled axes machine. * Twin spindles. * Two turrets. * Each turret with 15 positions, all motorized. * Live tooling, C axis. * Integrated spindle motor, 15 kW. * Spindle motor starting torque: 420 Nm. * Live tool drive motor: 4 kW. * Spindle nose size: A2-6. * Maximum machining diameter: 370 mm. * Maximum machining length: 920 mm. * Bar capacity: 65 mm. Dodpfx Adjx Ab N Aemsla * Box way guides on all axes. * Two 250 mm hydraulic chucks per spindle, metric system. * Automatic finished parts catcher arm. * Automatic secondary spindle cleaning with air or coolant. * Conveyor belt for finished parts. * Interface for bar feeder. * Multifeed bar loader, 1.5 meters. * Automatic load monitoring and tool consumption monitor. * Part transfer system between spindles with automatic torque control. * Fanuc CNC. * Fanuc motors and servos. * Rapid traverse speeds: 20 and 25 m/min. * Main spindle speed: 3,500 rpm. * Live tool speed: 3,000 rpm. * Turret index time: 0.2 seconds. * Rear chip conveyor, hinged type. * Complete set of external and internal static tool holders included. * Complete set of axial and radial live tool holders included (valued at €13,000). * Machine currently in operation. * Weight: 10,800 kg. * Immediate delivery unless previously sold.
