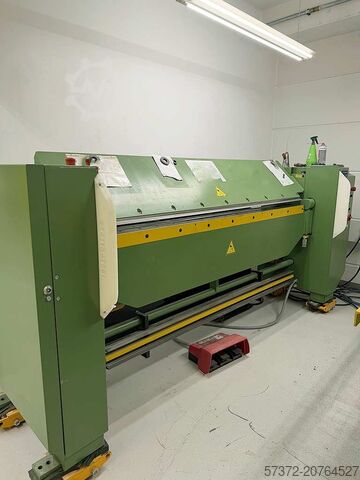

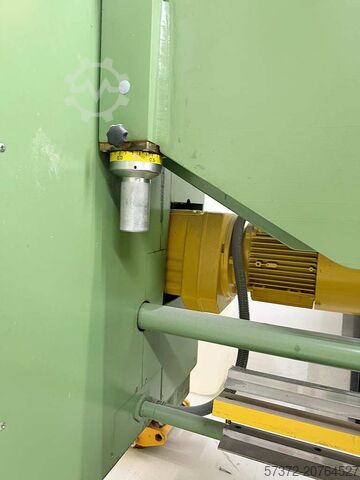

Guillotine Shear

Schechtl MAB 200/1

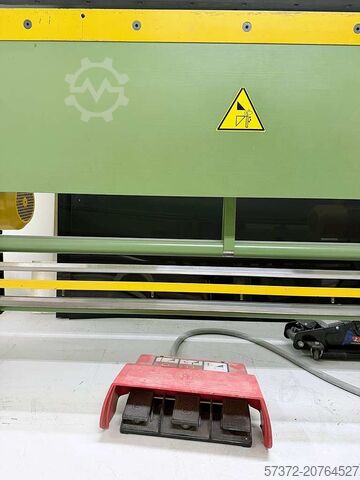

Condition: used, Year of construction: 1991, sheet width 2050 mm plate thickness 3.5 mm distance between columns 2100 mm stroke of upper beam 250 mm adjustment UW 80.0 mm work height max. 920 mm total power requirement 6.0 kW weight 2910 kg range L-W-H 3185 x 875 x 1450 mm Features: - Robust electric-driven folding machine Bedpfew U U Ukex Agpjcu - With dynamic, powerful drive motors - Manual/automatic operation selectable - Control panel, right front - Bending angle preselection via electric potentiometer - Manual lower beam adjustment - 1x used upper tool rail - 2x used lower tool rails - 1x freely movable double foot switch - Original operating instructions

Condition: good (used), functionality: fully functional, Year of construction: 2019, Motorized Swivel Bending Machine Manufacturer: Schechtl Model: MAX 200 / STD Year of manufacture: 2019 Technical Data Bedpsx Iu D Tsfx Agpecu Make: Schechtl Model: MAX 200 / STD Year: 2019 Working length: 2040 mm Upper beam stroke: 140 mm Sheet thickness: 2.5 mm steel / 1.50 mm stainless steel / 4.0 mm aluminum Connection voltage: 3x400V, 50 Hz Dimensions: L 3,000 x W 1,400 x H 1,200 mm Weight: approx. 2 t Color: grey/blue Features - Standard control (STD type): - Electronic angle adjustment via rotary knob with scale/potentiometer - Automatic clamping pressure adjustment for the upper beam via potentiometer - Support grid, 500 mm deep, variably adjustable - Manual back gauge - Bending rails 68/10 mm and 68/24 mm, as shown in the picture - 1 foot switch All information is provided without guarantee. A demonstration is possible at any time in our showroom.

Condition: good (used), Year of construction: 2003, sheet width 2520 mm plate thickness 2.50 mm ST thickness at "Niro-steel" 1.50 mm upper clamping bar adjustment 160 mm adjustment speed 100 mm/sec Adjustment folding beam 80.0 mm Bending speed ca. 120 Grad/sec compressed air 6.0 bar work height max. 869 mm control POS 2000 total power requirement 7.2 kW voltage 400 V weight 3430 kg range L-W-H 4120 x 2400 x 2090 mm Current new price ~ 100.000 euros From a maintenance workshop With very good equipment (!!) Equipment: - CNC electric motor-driven universal swivel bending machine * High-precision mechanics with modern control technology * For individual and series production * Robust high-speed machine with high axis speeds * Torsion-free welded construction - Rotatable upper beam / as automatic tool change system * With 2x tool stations (sharp and goose foot bending rail) * Reduces set-up and idle times * Eliminates time-consuming tool changes and adjustments - SCHRÖDER CNC control model POS 2000 * Control panel at front right (operable with PC mouse) * Color display * USB interface * Automatic cutting calculation * Material and tool library * Dimensionally accurate bending simulation * Windows XP operating system Bcsdexbh Euepfx Agpeu * Swivel control, front right - Servo converter-controlled drives * for bending/upper beam & electric backgauge - CNC motorized lower beam adjustment - CNC electric motorized backgauge * Travel speed 300 mm/sec. - with rear sheet metal support surface, including ball rollers - 1x freely movable double foot switch - Operating instructions (PDF)

Condition: used, Max. bending length: 2040 mm Max. sheet thickness: 2 mm steel Mechanical upper jaw adjustment Polished bending rail Bcjdevmz Drjpfx Agpeu Weight: approx. 1800 kg Very good condition

Condition: ready for operation (used), sheet width 2020 mm plate thickness 2.5 mm ST upper clamping bar adjustment 250 mm Lower beam adjustment 80.0 mm bending speed 5.5 sec / Hub bending angle max. 0 - 180 ° Control konv. work height max. 930 mm back stop - adjustable ca. 215 mm engine output 2.6 kW weight 1750 kg range L-W-H 2800 x 1200 x 1450 mm - in checked conditoins - machinevideo - Bcjdpfx Aexabngsgpeu ?v=kFXtKjDlV3k Features: - Robust electric-driven folding machine - Bending angle adjustment via electric potentiometer - Manual backgauge * Adjustment via handwheel from the rear - Manual lower beam adjustment - 1x freely movable double foot switch - Main switch at the front

Condition: good (used), You are bidding on: a branded machine – a folding machine from a very reputable and well-known manufacturer, Schechtl. Current new price approx. €19,000 net. Machine features: - Schechtl HA folding machine - Bending bar operates smoothly – test possible Bcedpfx Ajx E U T Aogpsu - Degree display - Bending length slightly over 2 m - Sheet thickness: 2 mm (steel sheet) – higher thickness possible for aluminium, zinc, etc. - Standard bar – radius bar for aluminium and zinc is also optionally available - Foot-operated clamp - Optional depth stop Guillotine shears HT 200 or Schröder electric guillotine shears 2 m – 2.5 mm are optionally available. Important: You may also purchase a wide range of machines and machine accessories (such as various bars, depth stops – anything required for sheet metal and steelworking, including folding machines, guillotine shears, drilling machines, slip rollers, slitting and profiling machines, accessories such as beading units, round rollers for gutter fabrication, back gauges, etc.), as well as further hand tools and spare parts from many top manufacturers available in stock in our shop. For any questions, I am always available. You will receive an invoice including VAT. Free loading is possible – weight approx. 1,450 kg. Viewing and testing are possible and highly encouraged by appointment by telephone. Payment upon collection in cash. Benefit from our experience and expertise— we are happy to advise you. Collection by the buyer (or a shipping company appointed by the buyer) should take place within 10 days after the end of the auction. Location: 97261 Article number: Folding Machine HA 200
