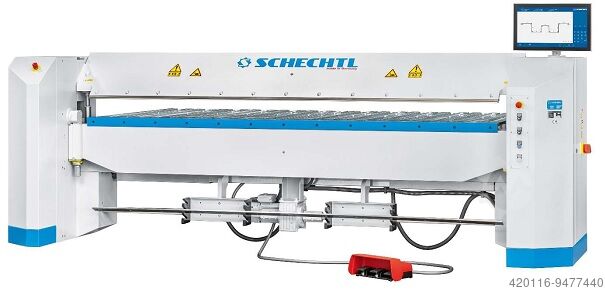

Motorized Bending Machine CNC

Schechtl MAX 310 CNC

Condition: new, Year of construction: 2026, • efficient, quiet and powerful mechanical machine • fast processes as in the case of MAX and MAB machines • maximum free space for material bending thanks to the F-geometry for the bending beam • Possibility to make omega profiles without additional tools • 1 top bar 20°, radius 1 mm, 66/24 mm • 1 bending bar 10/100 mm and 24/100 mm • operating pedal • soft start of the bending beam Kdodpfxjlbilvs Afvsh • mechanical stop with a working length of 6-1000 mm • 32 A plug + 5 m power cord for EU • supply voltage: 3 x 400 V, 50 Hz for EU Thickness of bent sheet 1.5 mm steel sheet for 3000 mm length

Year of construction: 2023, condition: new, ! Offers for customers from Baltic states only: Lithuania, Latvia, Estonia. Guillotine RAPIDO is fast reliable shearing machine. Depends on sheets length there are guillotines with different working lengths available: 1300 mm / 2600 mm / 3200 mm / 4100 mm. Machine can do up to 35 cuts per minute. The drive system with eccentrics, pulldown rods, and hold down system which can be positioned as close as 2.5 cm from the knives allow for easy and expedient trimming of narrow strips. RAPIDO guillotine shear is equipped with squaring arms on both sides and the LED cutting line light. Kedpfx Ajixz D Uefvedh Available working lengths: 2600 mm / 3200 mm / 4100 mm

Condition: new, sheet length: 2100sheet thickness: 6,0total power requirements: 11weight approx.: 5500messurements (LxWxH): 3110x2195x1770 Our strong brand KK Kletzer                    TAFELSCHER Vibration cut version Model SWT has everything you need for cutting.  We have also raised the standard in the vibration cutting design and deliver ours as well  Plate shears with automatic cutting adjustment via the touchscreens Control ELGO P40T without surcharge.  NC slotted table shears KKI Technological advantages Fast and precise cuts Stable,  durable frame construction Automatic kerf adjustment Easy handling Low maintenance costs High safety standard Use of components from well-known manufacturers Low unit costs   Technical specifications:  Sheet thickness: 6 mm  Cutting length: 3.100 mm Kjdpsfhlbdofx Afvsdh Cutting angle: 1,5°  number of hold-downs 15 Backgauge: 1,000 mm via CNC  Motor power: 11 kW  Strokes per minute 15 Projection: 50 mm  Length: 4110 mm  Width: 2195 mm  Height: 1770 mm  Weight: 7000 kg  • Stable swing cut design Cutting gap adjustment via the control - backgauge - kerf - Cutting length  • Ball screws for the back gauge • balls in the table  • Side stop 1,500 mm • 2 pcs. Support arms 1.000 mm  • Cut line lighting • Foldable up to 1,000 mm finger protection  Option:  pneumatic sheet support, EURO 3.900, -  We have many references!

Condition: ready for operation (used), Year of construction: 2000, sheet width 2520 mm plate thickness 4.0 mm ST thickness at "Niro-steel" 2.0 mm upper clamping bar adjustment 250 mm adjustment speed 100 mm/sec Adjustment folding beam 80.0 mm Kdodox H Alcjpfx Afvjh work height max. 869 mm control POS 2000 voltage 400 V total power requirement 6.0 kW weight 4100 kg range L-W-H 4120 x 2400 x 2090 mm current list price ~ 90.000 euro from a maintenance workshop with excellent equipment (!!) new touchscreen installed in 2023 - in checked conditoins - machinevideo - ?v=5Y2NheJjdWo Features: - CNC electro-motorized universal bending machine * ??High-precision mechanics with modern control technology * For individual and series production * Robust high-speed machine with high axis speeds * Torsion-resistant welded construction - SCHRÖDER CNC control model POS 2000 * Control panel front right (operable with PC mouse) * Touchscreen replaced in 2023 * Color display * USB interface * Automatic cutting calculation * Material and tool library * Dimensionally accurate bending simulation * Windows XP operating system * Swiveling control, front right - Servo inverter-controlled drives * For bending/upper beam & electric backgauge - CNC motorized lower beam adjustment - CNC electro-motorized Backgauge * Travel speed 300 mm/sec. * with rear sheet metal support surface - 1x freely movable double foot switch - Operating instructions (PDF) * Optional accessories included: - SCHRÖDER split gouge tools - top

Condition: used, Year of construction: 2021, plate thickness 2.5 mm Kdjdpfx Asx A H T Tsfvsh throat 260 mm distance between roll centers 92.0 mm weight 295 kg range L-W-H 1200 x 700 x 1200 mm Equipment: - robust beading machine with motor-driven rollers - Lower shaft with adjustable stop - for the economical production of a wide variety of bead types - high accuracy thanks to precision-mounted shafts - Clearly arranged switching elements - Base frame equipped with storage compartment - powerful drive motor, even under continuous load - mobile foot switch for clockwise and counterclockwise rotation

Condition: new, sheet length: 3.200sheet thickness: 6,0total power requirements: 7,5weight approx.: 5.100messurements (LxWxH): 3.800 x 1.750 x 1.700 Our strong brand KK Kletzer                    Swing Beam Cutting Shear Vibration cut version Model SW has everything you need for cutting.  We have also raised the standard in the vibration cutting design and deliver ours as well  Plate shears with automatic cutting adjustment via the touchscreens Control ES21S without surcharge.  Technical specifications:  Sheet thickness: 6 mm  Cutting length: 3.100 mm Cutting angle: 1,5° Motor power: 7,5 kW  Strokes per minute 12 Length: 3.800 mm  Width: 1.750 mm  Height: 1.700 mm  Kdodpfx Afjnwt A Asvsh Weight: 5.100 kg  • Stable swing cut design Cutting gap adjustment via the control - backgauge - kerf - Cutting length  • Ball screws for the back gauge • balls in the table We have many references!

Condition: new, plate thickness 2.5 mm throat 260 mm distance between roll centers 92.0 mm weight 295 kg range L-W-H 1200 x 700 x 1200 mm Equipment: - 3x pairs of beading and flanging rollers included in delivery - robust beading machine with motor-driven rollers - Lower shaft with adjustable stop - for the economical production of a wide variety of bead types - high accuracy thanks to precision-mounted shafts - Clearly arranged switching elements - Base frame equipped with storage compartment - powerful drive motor, even under continuous load - mobile foot switch for clockwise and counterclockwise rotation Kedpoxaaw Hefx Afvjdh
