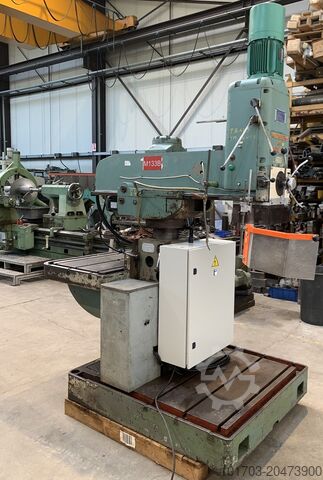

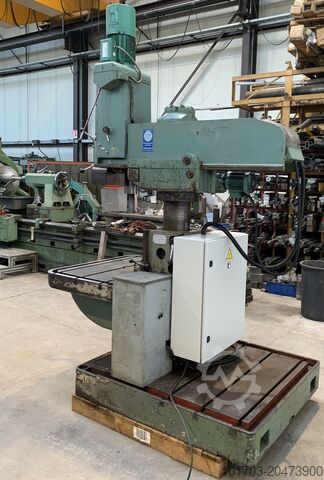

Radial Drilling Machine

SCHLUMBERGER 36-12

Condition: excellent (used), bore depth 500 mm Kljdjxx A D Tspfx Ab Isu spindle speed: 1

Condition: excellent (used), functionality: fully functional, RADIAL DRILL EMA 900 X 35 USED MACHINE INTERNAL CODE: CAR 127 Klodpfx Abjylzfwj Ieu

Condition: ready for operation (used), Offered is a used Donau DR 32 rapid radial drilling machine series 731. Tool holder: MK4, spindle stroke: 200mm, outreach: approx. 900mm-1050mm, height adjustment: approx. 400-600mm, speed range: 40-2000rpm, feeds: 0.1/0.2/0.3/0.4mm per revolution, integrated coolant system, equipped with swiveling arm, large T-slot table, weight approx. 1500kg-1800kg, machine dimensions X/Y/Z approx. 1800mm/1000mm/2200mm. Inspection is possible by appointment. Kljdpeykut Ssfx Ab Iou

Condition: used, bore capacity in steel (diameter) / mm arm length / mm workpiece height max. / mm Klsdpfxowt Dv Ne Ab Iju

Condition: not inspected (used), Year of construction: 1996, bore capacity in steel (diameter) 32 mm Ksdozb Raiopfx Ab Ielu morse taper MK 4 base plate 1700 x 700 mm feed 4 m/min weight of the machine ca. 1,5 t dimensions of the machine ca. 1800 x x1200 x 2480 m

Condition: used, Radial Drilling Machine SCHLUMBERGER type RF6 Klsdpfoxu Icmsx Ab Iju Manual raising Cone: CM4 Spindle speed: from 35 to 1800 RPM Table size: 1000 x 650 mm Column slide travel along bed: 750 mm Maxi distance spindle nose/table: 700 mm (in high position) Mini distance spindle nose/table: 250 mm (in low position) Manual up/down of table + column Automatic descent Rotation at 360° on column Hydraulic column locking Drilling / tapping function Lubricant pump Voltage: 380 V Width: 1400 mm Depth: 900 mm Height in low position: 2650 mm Height in high position: 3000 mm Weight: approx 3 T

Condition: used, Radial Drilling Machine BERGONZI type UT 25 Spindle: CM3 Kjdpfjxu Icyox Ab Ielu Spindle exit: 150 mm Spindle speed: from 130 to 900 RPM Arm travel: 500 mm Max height table/spindle nose: 900 mm Column: Ø 180 mm 2 speeds motor Auto descent Return Spring defective Electric arm rise Delivered with: 1 cube Length 500 mm x Depth 400 mm x Height 450 mm 1 false table Lubricant pump Voltage: 380 V Length: 1500 mm Width: 900 mm Total height in height position: 2300 mm Weight: approx 1,2 T

Condition: good (used), bore capacity in steel (diameter) 28 mm arm length 700 mm workpiece height max. 1300 mm tool taper MK3 feeds 0,1-0,3 mm/U spindle turning speed range 100-1.220 U/min total power requirement 1,4 kW weight of the machine ca. 1,3 t dimensions of the machine ca. LBH 1,8 x 0,8 x 2,3 m Kledpfxjzfqmce Ab Iju Incl. cube table Incl. drilling feed Mechanical clamping

Condition: good (used), Year of construction: 1978, machine/vehicle number: 973, Offer 26099 Technical data: - Drilling capacity in steel ST 60: 32 mm - Drilling capacity for step drilling: 40 mm - Thread cutting device - Drill spindle mount: MK 3 - Drill spindle stroke: 200 mm - Outreach min / max: 250 / 1000 mm - Stroke of the arm: 600 mm - Min. / max. distance: - Spindle - base plate approx.: 650 - 1250 mm - Processed base plate clamping surface: B 1150 - 700 mm - 12 spindle speeds: 56 - 1220 rpm - 4 feed rates: 0.15 - 0.30 mm/rev - Drill spindle drive: 400 V / 3.5 kW Kledpjy U Htasfx Ab Iju - Square table - Space requirement approx.: W 1700 x H 1960 + 500 x D 700 mm - Weight approx.: 1200 kg
