Tool and Cutter Grinder

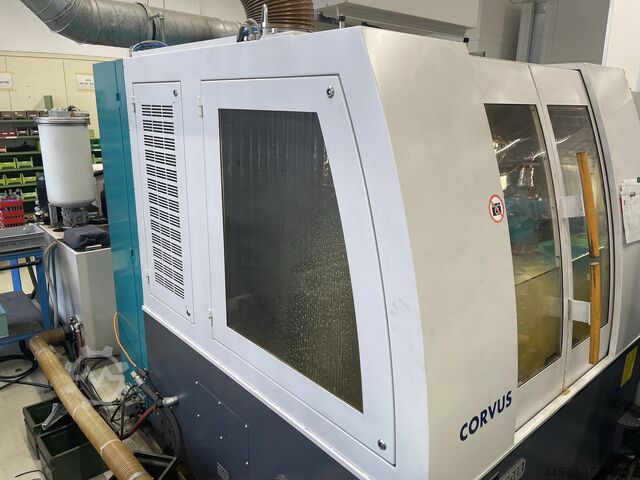

Schneeberger Corvus GDS 650

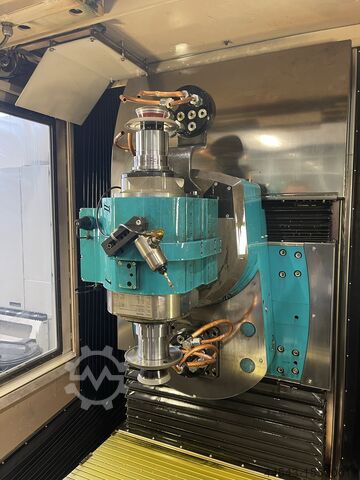

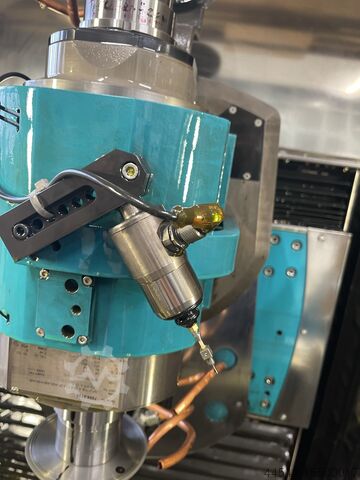

Year of construction: 2017, condition: ready for operation (used), A Schneeberger CNC 5-axis tool grinding machine is available. 1) Schneeberger Corvus GDS 650 turning machine, year of manufacture: 2017, grinding spindle interface: HSK80, grinding spindle power: 26kW/32kW, max. A-axis swing: 700mm, software: Quinto5.4.6, spindle hours: approx. 10400h. Including extensive accessories, Zeno precision 3D coordinate probe, quick clamping with tailstock, electrostatic extraction system, fire protection system, double grinding wheel capacity, integrated measurement and documentation. 2) Vomat FA 120EKSd filtration system, year of manufacture: 2016, filtration capacity: 120l/min, filling capacity: 500l, filtration fineness: 5µm, machine dimensions X/Y/Z: approx. 1600mm/1000mm/1200mm, weight: approx. 500kg. 3) Vomat HSSV3 filter module, year of manufacture: 2016, max. filling capacity: 350l, max. filtration capacity: 120l/min, operating pressure range: 6bar-10bar. 4) Hyfra Sigma 7-S cooling unit, year of manufacture: 2017, cooling capacity at 32°C: 6900W, max. operating pressure: 42bar, refrigerant quantity: 1.1kg, refrigerant: R410A, weight: approx. 170kg. Documentation available. An on-site inspection is possible. Iodpjzhw Ryofx Akzoig

Condition: not inspected (used), Brand: Walter Model: Woodtronic CNC5 with 2-pallet loader Year of manufacture: 2000 Sold as is. Used 8-axis CNC carbide saw blade grinding machine for face and back grinding, with linear loader (2 stations). Diameter range: 80 to 850 mm - Standard measuring probe for recording and managing grinding parameters - SIEMENS MMC103 CNC control - All tooth geometries Iisdpfx Akoxm T Hujzeg 2-pallet loader - Blade diameter up to 600 mm - Magnetic pins Options available on request Contractual photos

Condition: good (used), Year of construction: 2007, 1 used CNC tool grinding machine Make: Schneeberger Model: Corvus GDS 650 Year of manufacture: 2007 CNC Control: FANUC 160i Software: Quinto 4.3 Activated software options (option numbers): 1, 2, 19, 21, 22, 30, 31, 32, 35 - Fanuc loading robot - Coolant system Travel: X-axis: 650 mm Y-axis: 300 mm Z-axis: 300 mm C-axis swivel range: +150°/ -60° C’-axis swivel range: +/- 180° Grinding spindle: Wheel diameter up to 250 mm Speed: 0 – 10,000 rpm Max spindle power: 26 kW HSK 80 interface Max. number of wheels: 6 Workpiece spindle head: Vmax: 180°/s Drive power: 1.6 kW Iiedpfeu A Dn Njx Akzjg ISO 50 interface Precision (resolution): Linear axis resolution: 0.001 mm C-axis: 0.001° Dimensions: Length: 3,100 mm Width: 1,915 mm Height: 2,190 mm Weight: 8,500 kg U-axis is integrated with steady rest, clamping cylinder, and tailstock 6-pallet loader (diameter 3 to 32 mm) 64 plastic collets Technical data subject to change without notice

Year of construction: 2020, condition: ready for operation (used), A Vollmer CNC 5-axis tool grinding machine for the manufacture and regrinding of solid carbide rotary tools is available. Grinding spindle interface: HSK50, max. workpiece diameter: 100mm, max. workpiece length: 360mm, max. grinding wheel diameter: 150mm, travel X/Y/Z: 350mm/450mm/500mm, workpiece magazine: pallet magazine, workpiece capacity: 272. Machine dimensions X/Y/Z: approx. 2650mm/2800mm/2200mm, weight: approx. 5550kg, control system: Vollmer. Including automatic workpiece magazine HP160. Documentation available. An on-site inspection is possible. Iodezg Ir Eepfx Akzoig

Condition: excellent (used), HSS saw grinder and chip breaker slot grinder Schmidt Tempo model S630 Iisdpfx Aksywaqwszsg
