Linear unit, linear axis, portal axis with servo drive, synchronous servomotor, electric slide, lineSCHNEIDER ELECTRIC / FESTO
PAS43SBG1800 / BMH1002T07F2A
Machine data
- Machine type:
- Linear unit, linear axis, portal axis with servo drive, synchronous servomotor, electric slide, line
- Manufacturer:
- SCHNEIDER ELECTRIC / FESTO
- Condition:
- used
Price & Location
- Location:
- 37235 Hessisch Lichtenau
Details about the offer
- Listing ID:
- A198-93210
- Reference number:
- 59702
- Update:
- 18.04.2026
Description

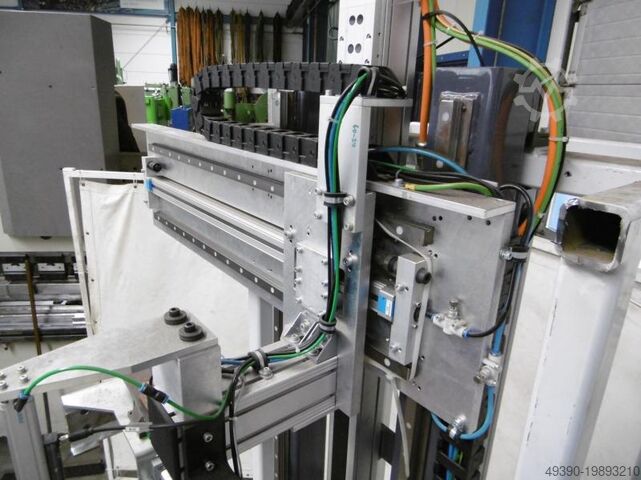

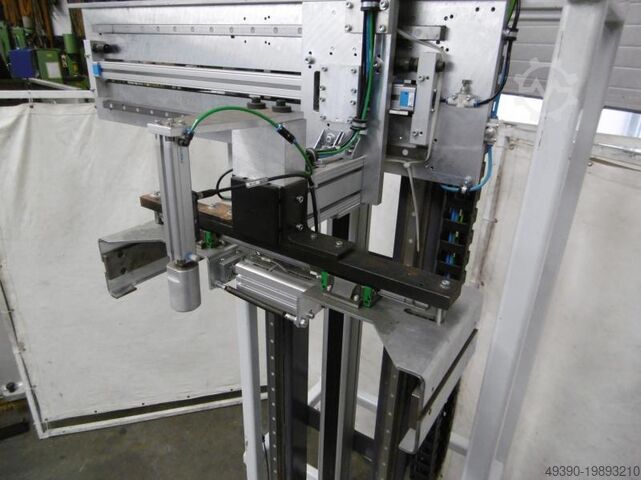

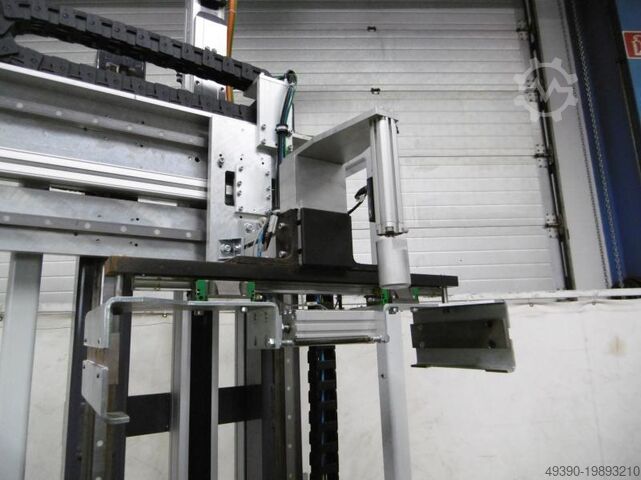

loading unit, linear guide with servo motor and pneumatic gripper
SCHNEIDER ELECTRIC / FESTO type PAS43SBG1800 / BMH1002T07F2A
Year of manufacture: 2012
Vertical stroke via Schneider Electric linear axis PAS43SBG1800
Travel: 1800 mm
Travel per revolution: 20 mm
Maximum speed: 1 m/s
Drive element: ball screw
Guide type: recirculating ball linear guide size 20
Payload: 60 kg
Maximum speed, ball screw: 3000 rpm
Motor type: Schneider Electric BMH1002T07F2A
Rated voltage: 240 Vrms
Rated power: 1.912 kW
Rated speed: 3500 rpm
Max. current draw: 29.4 A
Horizontal travel: 670 mm via Festo pneumatic cylinder
Gripper opening: 600 - 670 mm
- Pneumatic gripper on guide carriage
- Gripper jaws open pneumatically
Kodpfx Afew Uc T Iodsdk

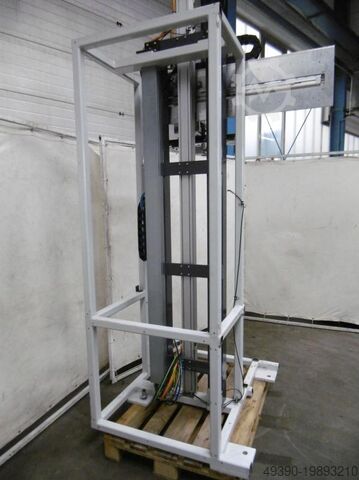

- Unit mounted on welded square tube frame
Total weight: approx. 380 kg
Overall dimensions (W x H x D): 1280 x 2950 x 1150 mm
Very good condition
Nearly identical linear unit under stock number 59700
Drive controller 61488 = suitable for linear units 59702 + 59700
The listing was translated automatically. Translation errors are possible.
