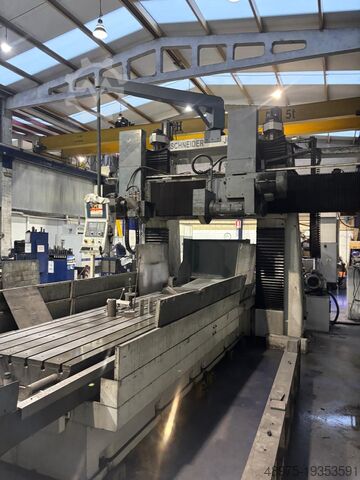

Slideway grinding machine

Schneider

Condition: ready for operation (used), total length: 10,700 mm, total width: 3,700 mm, Beiteldraaibank - met 2 beweegbare beitelgeleiders - voor elektromotoren, pompen, ankers etc. Beweegbare centra Dwarsslede: 500 mm verstelbaar Middenhoogte: 1000 mm (eenvoudig instelbaar) Met Asea-motor 31 kW (variabele snelheid) Distance between centers: 7300 mm Cpsdpfxjyru Ewj Ah Ijw Swing over bed: 3400 mm (expandable) Swing in gap: 3400 mm Power on main spindle: 30 hp Number of speeds: 9 -> 27 rpm Chuck (3/4 pinch) -- diametre: Ø 2550 mm Max weight between centers: 12000 kg

Condition: used, Linear unit, linear axis, gantry axis with servo drive, synchronous servo motor, electric slide, loading unit, linear guide with servo motor and pneumatic gripper SCHNEIDER ELECTRIC / FESTO type PAS43SBG1800 / BMH1002T07F2A Year of manufacture: 2012 Vertical stroke via Schneider Electric linear axis PAS43SBG1800 Travel distance: 1800 mm Travel per revolution: 20 mm Maximum speed: 1 m/s Drive element: ball screw Guide type: recirculating ball guide size 20 Payload: 60 kg Maximum speed of ball screw: 3000 rpm Motor type: Schneider Electric BMH1002T07F2A Rated voltage: 240 Vrms Rated power: 1.912 kW Rated speed: 3500 rpm Max. current consumption: 29.4 A Horizontal travel: 670 mm via Festo pneumatic cylinder Gripper opening: 600 - 670 mm - Pneumatic gripper on guide carriage - Gripper jaws open pneumatically - Unit is mounted on a welded square tube frame Cpsdjw Uc T Iopfx Ah Isw Total weight: approx. 380 kg Overall dimensions (W x H x D): 1280 x 2950 x 1150 mm Very good condition Nearly identical linear unit available under stock number 59700

Condition: used, Linear unit, linear axis, gantry axis with servo drive, synchronous servo motor, electric slide, loading unit, linear guide with servo motor and pneumatic gripper SCHNEIDER ELECTRIC / FESTO Type PAS43SBG1800 / BMH1002T07F2A Year of manufacture 2012 Vertical stroke via linear axis Schneider Electric PAS43SBG1800 Travel distance 1800 mm Travel distance per revolution 20 mm Maximum speed 1 m/s Drive element Ball screw drive Guide type Recirculating ball bearing guide size 20 Payload 60 kg Maximum speed ball screw 3000 rpm Motor type Schneider Electric BMH1002T07F2A Cpodjgf Ix Ajpfx Ah Isw Rated voltage 240 Vrms Rated power 1.912 kW Rated speed 3500 rpm Current consumption max. 29.4 A Horizontal travel 670 mm via Festo pneumatic cylinder Gripper opening 600 - 670 mm - Pneumatic gripper on guide carriage - Gripper opens pneumatically - Unit is mounted on welded square tube frame Total weight approx. 380 kg Overall dimensions W x H x D 1280 x 2950 x 1150 mm Very good condition Almost identical linear unit under stock number 59702

Condition: used, Stack cutting machine, guillotine cutter, guillotine SCHNEIDER Type Senator 155 Rubber, paper and veneer shear, plastic shear, fabric shear Guillotine for paper, cardboard, rubber, wood, and veneer Paper shear, rubber shear, plastic shear, paper and veneer shear Machine no. 60178 Year of manufacture: 1968 Cutting length: 1550 mm Cutting height: approx. 125 mm Working height: 140 mm Back gauge: max. 1550 mm Motor power (blade drive): 5.5 kW Power supply: 380 Volt, 50 Hz - Two-hand operation for blade activation Cpodpfx Ahodzqnyj Iow - Automatic pressing device holds the paper stack on the table - Manual clamp and blade activation via foot switch (operational) - Back gauge adjustment up to 1550 mm (can be adjusted manually via handwheel) - Retrofitted electric control not functional, without wiring diagrams, without user manual - Back gauge adjustment via servo motor (servo motor, controller, and control present, not functioning) Required space (L x W x H): 325 x 270 x 165 cm Space requirement for transport without disassembly: Length 330 cm x Width 270 cm x Height 175 cm Space requirement for transport with disassembly: Length 550 cm x Width 220 cm x Height 175 cm (machine + table separately) Machine dimensions: Length 270 cm x Width 190 cm x Height 175 cm Back gauge table: Length 240 cm x Width 170 cm x Height 120 cm Weight of assembled machine: approx. 5000 kg (without transport steel plate) Good condition Ideal for cutting paper, cardboard, leather, cork, rubber, or fabric-reinforced rubber Sales price does not include the 20 mm steel plate on which the machine is placed in storage. (Price for the steel plate: EUR 900 net)

Condition: used, Year of construction: 2008, dry - epoxy potted distribution 3 phase transformer manufactured by Schneider Electric, France, type TRIHAL, 800kVA, 20000 ( ± 2 x 2.5 %) /410V; Dyn11, IP00/31, IEC losses, year of manufacture 2008, 2 pcs available, rutine test report. Cjdpjyq S Tcjfx Ah Ijpw

Condition: like new (used), Vertical piston compressor with soundproof cover DK 600Eco UNM STS 660-10-270 - Year of manufacture: 2013 - Equipped with integrated refrigeration dryer, 660 l intake capacity, 520 l output - 10 bar - Weight: 245 kg - Sound insulation hood - Condensate drain: 4 kW, 400 Volt - Width 960 mm, depth 740 mm, height 1905 mm Cpsdpfsypkr Uox Ah Iew - Noise level: 69 dB (A) Hardly any operating hours, absolutely as new

Condition: excellent (used), Year of construction: 2014, Ref:11063 . 2014 Schneider Senator ‘S-Line’ 115H. Very low usage machine - only 320,000 cuts! High speed 115 cm guillotine with; Central stainless steel air table with blower Stainless steel air tables left & right Micro-computer programme (up to 5,700 steps) TFT colour monitor with soft keypad plus external programmable memory card Programme correction for print variation (linear & %) Variable pressure hydraulic clamp via display Twin hydraulic bottom knife drive giving more powerful cutting and less wear Illuminated cutting area 2 high speed steel knives I.R. light beam guarding with ‘FFM’ (UK HSE spec) Central lubrication Auto knife change from the front of the machine Including tools & manuals. Specification: Cutting width, Max: 115 cm Feed depth, Max: 115 cm Clamp opening, Max: 17 cm Side table width, Max: 43.6 cm Cpedjypgt Uopfx Ah Ijw Smallest cut (auto) : 35 mm/ 1.38” (manual) : 25 mm/ 0.98”_ Power required : 7.5 kW Clamp pressure : 300 – 3,700 daN

Year of construction: 2016, condition: used, · V-belt driven, two-stage, compressing 2-cylinder piston compressor · 15-year warranty on the tank against rust-through, thanks to internal coating · Equipped with rubber vibration dampers for secure positioning · With intercooler and aftercooler · Easily accessible condensate drain valve · Air outlet 3/4" Common features · Suitable for expanding existing compressed air systems · Flexible expansion possible by simply retrofitting a soundproofing hood (for compressors with 4 kW) Technical data Pressure: 10 bar Intake capacity: 1000 l/min Effective delivery rate: 790 l/min Drive power: 5.5 kW Csdpfx Ahoyfp Ruj Iepw Speed: 995 rpm Tank volume: 10 l Weight: 158 kg Noise level: 82 dB[A] Air outlet: 3/4" internal thread Dimensions (W x D x H): 1005 x 650 x 770 mm Incl. tank Common features · Vertical tanks · Simple and cost-efficient tank inspection via handhole or corresponding inspection openings possible · 15-year warranty on the tank against rust-through, thanks to internal coating Technical data Pressure: 11 bar Tank volume: 500 l Weight: 130 kg Air outlet: G 1 Dimensions (W x D x H): 850 x 830 x 2030 mm Incl. Schneider DK 1500 Eco refrigerated dryer Location: Supplier

Condition: used, Year of construction: 1998, machine/vehicle number: M-115H- 007-02/15-08, cutting width (max.): 1,150 mm, type of input current: three-phase, input voltage: 380 V, input frequency: 50 Hz, Equipment: safety light barrier, We offer this used Schneider Senator Schneider Senator 115H - TSC paper cutting machine - Guillotine, year of manufacture 1998. Codpfx Ajymy I Hsh Iopw Manufacturer: Schneider Senator Model: Schneider Senator 115H - TSC Year of manufacture: 1998 Condition: used Machine type: paper cutting machine - Guillotine If you have any questions or need more information, feel free to send us a message or give us a call.

Year of construction: 2006, condition: excellent (used), machine/vehicle number: 1107, P/N: 190.101 Cjdpfx Aoihvl Ijh Iepw Further MACHINERY / SPARE PARTS & MACHINE COMPONENTS of this type are available in our warehouse. ON REQUEST
