Bar Automatic Lathe - Multi Spindle

SCHUETTE AF32S Dnt

Condition: excellent (used), Perfectly preserved six-spindle INDEX MS 25 automatic lathe with six transverse and six longitudinal tool guides. Godpsqhkukjfx Abpekd The price is negotiable depending on the selected additional equipment: clamping pods, tools, chip conveyor, etc. The machine is still in production. Viewing possible by arrangement.

Condition: used, Year of construction: 2014, Technical details: grinding diameter max.: 3-220 mm regulating wheel width: 500 mm max. width of grinding wheel: 500 mm weight of the machine ca.: 16 t. dimensions of the machine ca.: 12 x 10 x 8 m. grinding wheel diam. min/max.: 420-610 grinding wheel diameter - width-internal grin: 304,8 x 500 mm Regulatin wheel diameter min/max.: 300-350 mm The machine is currently designed for plunge grinding JUPITER's Centerless grinding, also available with CBN. Junker this circular grinding method with CBN grinding wheels, which opens up significant productivity benefits from the long service life of the grinding wheel, especially at high volumes. In addition, the simultaneous removal takes on the entire Schleswig-Holstein, which provides both in mass production and in small batches for significantly reduced processing times. The grinding process with JUPITER Gkedpfx Abst Uw Avspod When centerless grinding, there are two grinding processes: the through grinding and plunge. Both methods are possible with the JUPITER. Applications through grinding: Pin and Bushings Body, rings, smaller rings, piston parts (eg compressors), waves with constant diameter piston rods (eg shock), Small piston for hydraulic and fuel injection, precision wires and rods, piston pins. Applications Plunge: Rotor shafts, transmission parts, bearing surfaces of camshafts, tube and pipe fittings for composite camshafts, universal joints, parts for needle injection, valve stems, barrel rolls. *

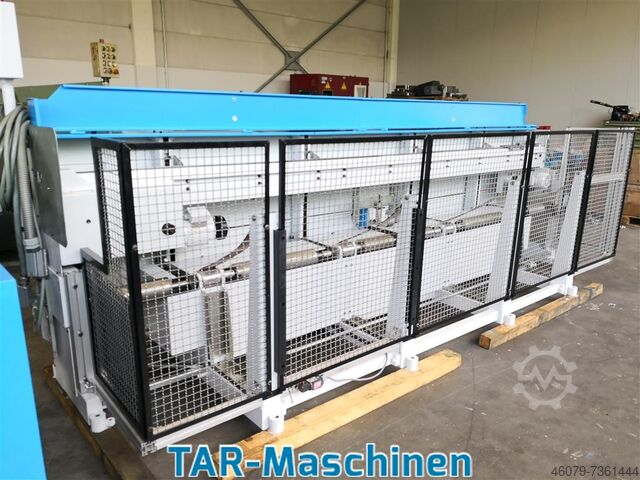

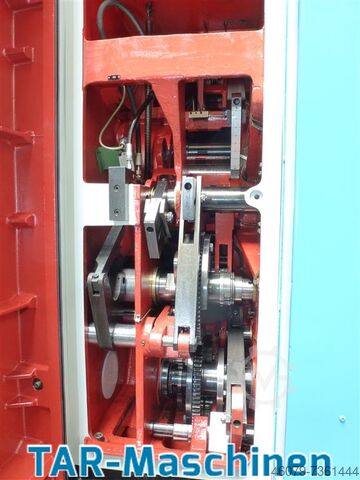

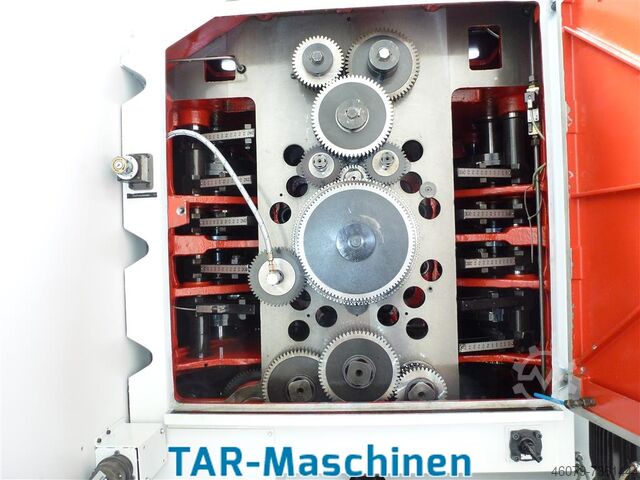

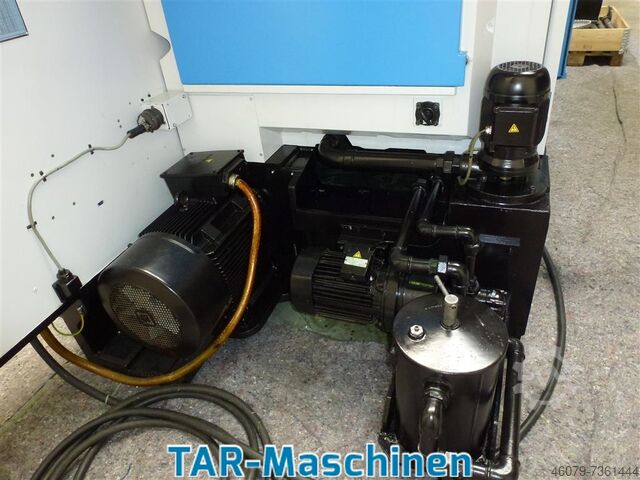

Condition: used, Year of construction: 1987, Technical details: number of spindles: 8 spindle passage: 51 mm Article: multi spindle automatic lathe Manufacturer: Schütte Type: AF51 Yob: 1987 eight main spindles max. bar diameter D=51mm control SIEMENS SIMATIC S5 pick up in pos. 7, for rear machining thread cutting drive independent feed in positions 2/3 electronical trip dog control “Balluff” clear text display Wöhrle coolant pump magnetic cartridge filter oil running incl. bar loader IEMCA PRA 40/37/F, yob 1987, (bundle type) Gkedpfxoiay Sfj Abpsd Painting in light blue and light grey The configuration of tooling will be different like pictures. Please, contact us for getting more information and pictures on mail(at) or *

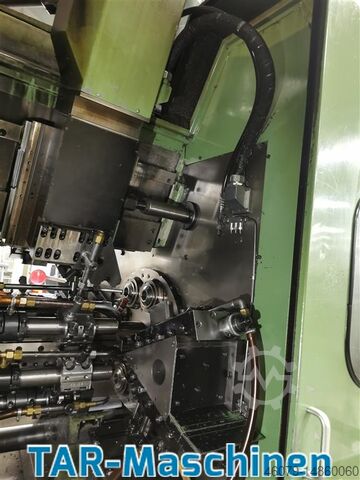

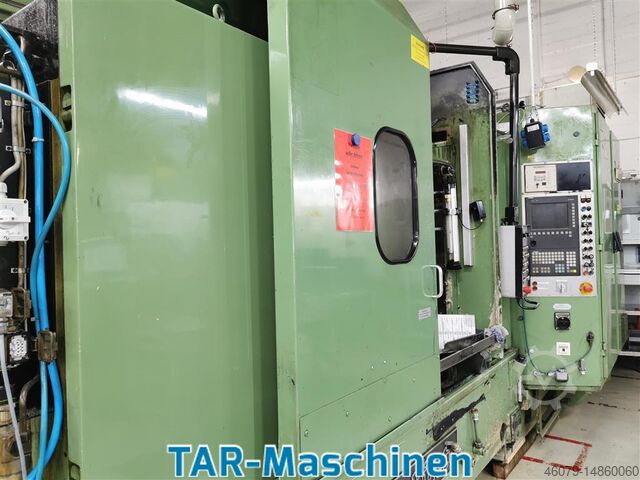

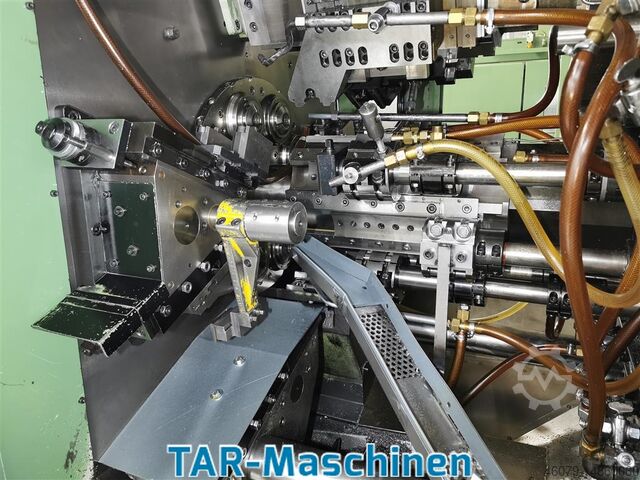

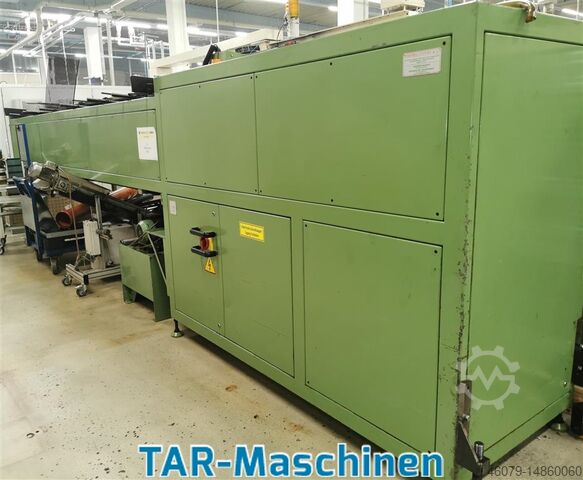

Condition: used, Year of construction: 1993, Technical details: number of spindles: 8 spindle passage: 32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 Dnt Gksdpfx Asrgt E Rebpod Yob: 1993 eight-spindle automatic lathe eight main spindles for bars up to D=32mm Modernized control: Siemens Sinumerik Motors: renewed modern motors suitable for modernized control system Electronic trip dog control: Balluff CNC cross slide position 5 cross CNC cross slide position 6 cross Preparation for gripper in position 8 (gripper optional) Independent feeds Thread cutting couplings integrated bar loader: Pietro CUCCHI; type: rack type magazine The scope of delivery regarding the tooling equipment could be different like pictures. *

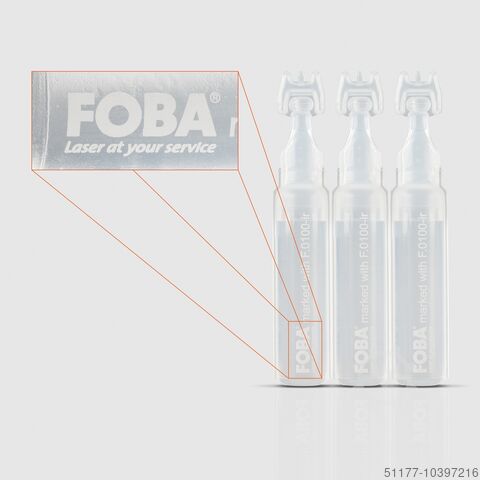

Year of construction: 2023, condition: new, FOBA F.0100-ir is "ultra" in every sense of the word: an ultra-short pulse laser that marks ultra black and is ultra fast and ultra compact. This makes it stand out with properties that cannot be taken for granted for a marking laser of this type. In addition, there is another special feature that makes the laser marker unique: the continuously adjustable pulse width between the femtosecond and picosecond range. This flexibility enables maximum marking precision, outstanding process stability and optimum adaptation to the most demanding marking requirements. The UKP marking system opens up a wide range of applications, particularly in the field of medical technology, for example for marking UDI codes, as well as for various applications in the production of automotive and electronic components. Gksdpfx Ael Slvajbpod

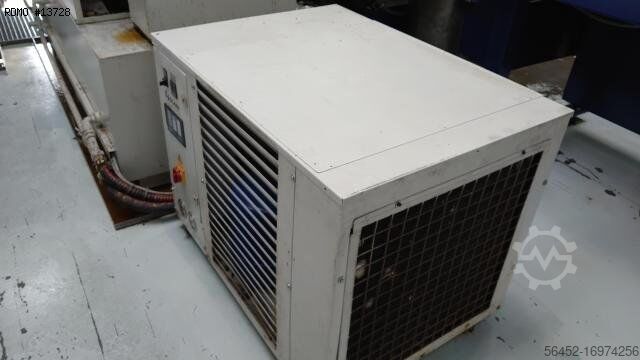

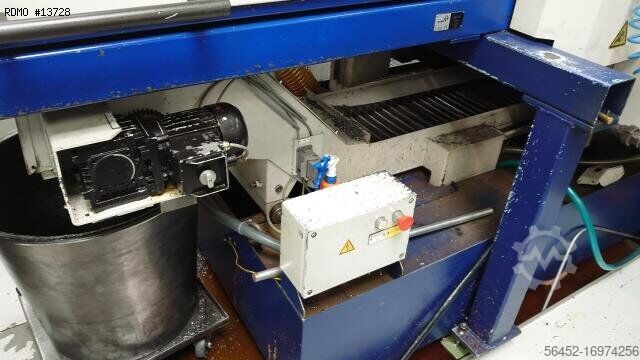

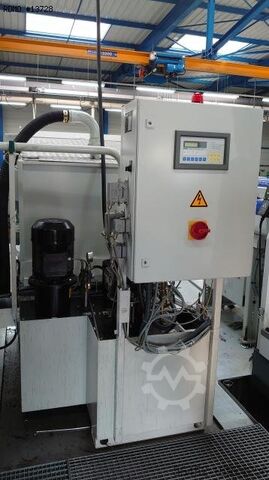

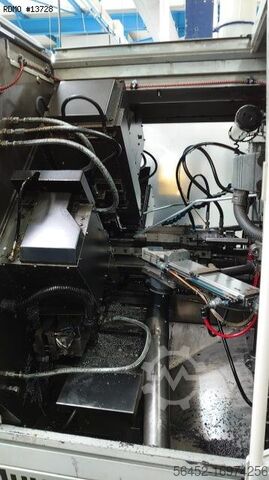

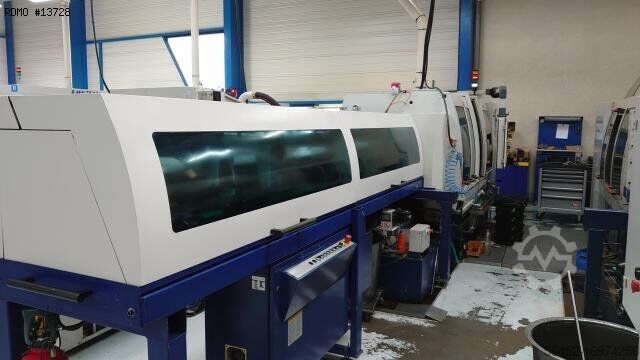

Condition: used, TECHNICAL DETAILS - number of axes : 18 - number of spindles : 6 - max round bar diameter : 32 [mm] - max clearance in hexagonal bar : 28 [mm] - spindle speed : 400 - 5 000 [rpm] - capacity of the sub-spindle : 32 [mm] - number of the cross slides : 5 Godpfx Asuhaquobpjkd - strokes of the cross slides in position 2 and 3, X x Z : 60 x 80 [mm] - strokes of the cross slides in position 1, 4 and 5 , X x Z : 60 x 100 [mm] - size : 8 300 x 2 300 x 2 240 [mm] - weight : 11 500 [kg] - number of working hours : 52066 [h] EQUIPMENT - numerical control TORNOS PNC DECO - spindle stop pos 4 - numerical sub-spindle with counter operation device - parts catcher with conveying strip - 5 turning tool-holders GOLTENBODT with collar - 1 cutting-off tool-holder GOLTENBODT - 4 fixed drillers - 1 driven driller - chips conveyor - high pressure pump - integrated bar feeder TORNOS MSF 832/6 - lamp

Condition: good (used), Year of construction: 1999, Multi-spindle automatic lathe TORNOS MultiDeco 26/6, No. T-61796, year of manufacture 1999, FANUC control, chip conveyor, bar loader IEMCA Sir 32F, No. 98072003, year of manufacture 1998 Gkodeunvwlspfx Abpod
