Hardening Unit

SCHWARTZ GA 1668

work piece width 20 - 400 mm
workpiece height 5 - 40 mm
workpiece length 500 - 6.000 mm
max. workpiece weight 100 kg
no. of heating areas 5 Stück
useable dimensions LxBxH: 6.500 x 635 x 350 mm
permissible operating temperature 1150 °C
In our opinion, the system is in good used condition and can be inspected under
power by appointment.

The hardening system consists of the following components:

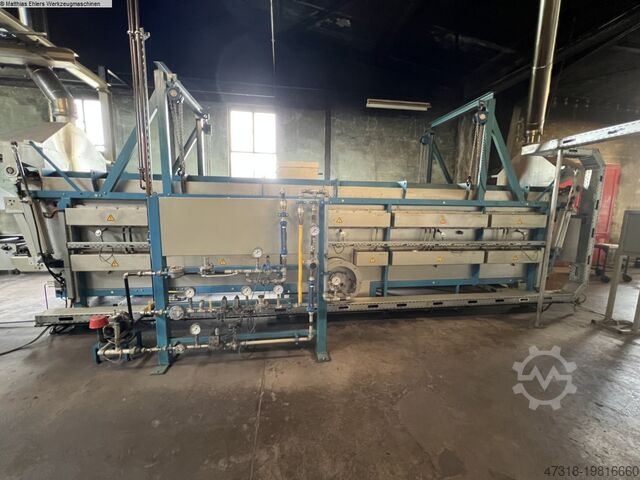

1. Hardening oven for nitrogen / endogas operation
- Manufacturer: Schwartz
- Type: GA 1668
- Year of construction: 2008
- max. temperature: 1200°C
- Dimensions LxWxH: 8,130 x 2,671 x 3,305 mm
- Weight: 12,500 kg
- Total power requirement: 125 kW

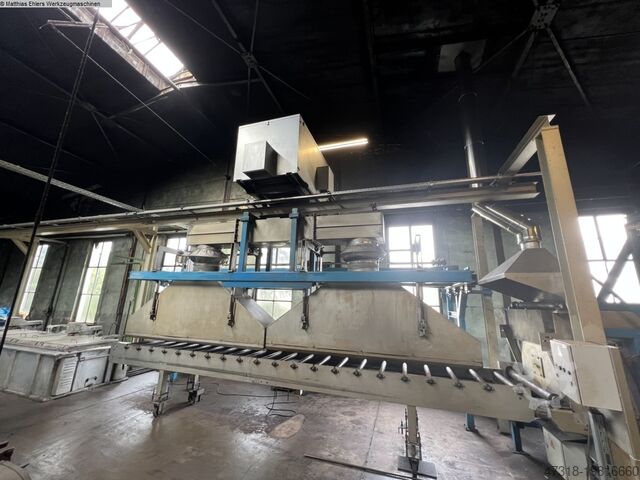

2. Cooling zone
- Manufacturer: Schwartz
- Year of construction: 2008
- Number of cooling zones: 2
- Dimensions LxWxH: 6,405 x 2,789 x 3,208 mm

3. Roller conveyor with drive
- Manufacturer: Schwartz
- Year of construction: 2008

4. Warm salt bath, electrically heated
- Manufacturer: Bredtmann Girke
- Year of construction: 1977
- Total power requirement: 72 kW
Csdew R Ehyspfx Abwehc

5. Nitrogen battery
- Manufacturer: Air Liquidie
- Type: BR50 2x1
- Year of construction: 2008

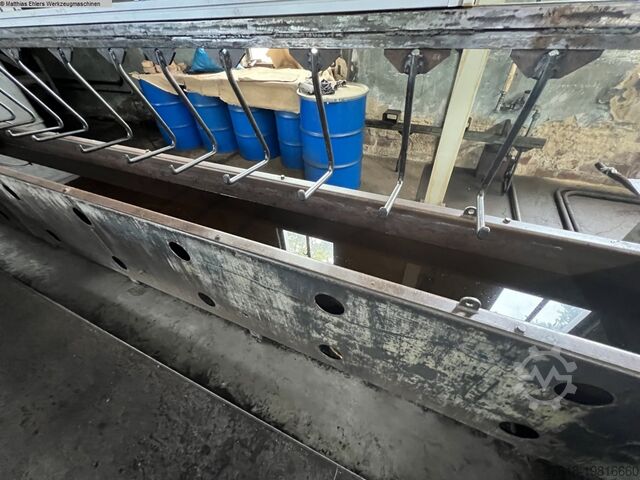

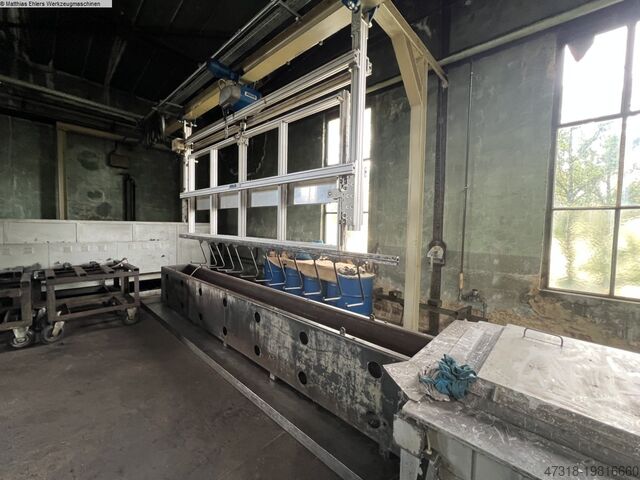

6. Monorail - crane system
- Manufacturer: ABUS
- Type: GM5 1000.6-1
- Year of construction: 2008
- Load capacity: 1,000kg


Accessories, tools and clamping devices shown are only included in the scope
of delivery
if this is noted in the additional information.

Changes and errors in the technical data and information as well
Subject to prior sale!
