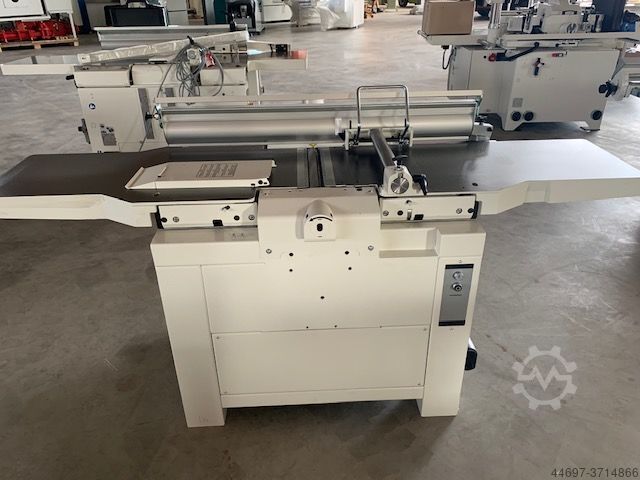

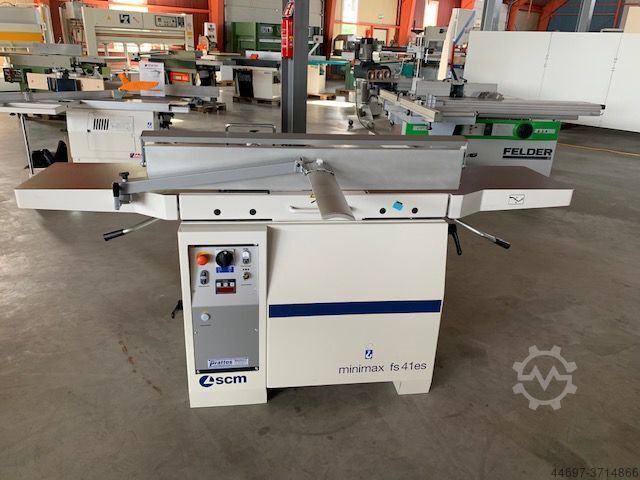

Combined planer

SCM MiniMax fs 41 es

Condition: new, Year of construction: 2026, For sawing, milling, planing/thicknessing, and optionally mortising in a confined space. High-precision format sliding table made of anodized aluminum, available in various lengths. Large outrigger (1200 x 650 mm) with a material support roller and extendable aluminum telescope fence up to a maximum of 3200 mm with professional fence flaps. Max. saw blade diameter 315 mm, swiveling from 90° to -45°. Large swivel range of the milling spindle from 90° to -45° to the rear. Four milling speeds up to 10,000 min⁻¹, manually adjustable. With clockwise/counterclockwise rotation of the milling spindle. Heavily ribbed planing tables made of stress-free gray cast iron for decades of stability and flatness. 2-stage feed rate for thicknessing. Three independent industrial motors for continuous operation. With lockable main switch, motor protection switch. Fixed handwheels. Dimensions and Weights Weight (net) approx. 857 kg Planing Planing table width 410 mm Planing table length 2000 mm Maximum planing material removal 5 mm Bdedpfx Ahoih Dxlomjh Dust extraction connection Dust extraction port diameter 3 x 120 mm Dust extraction port diameter saw blade guard 60 mm Installation Information Space requirement length 5960 mm Space requirement width/depth 5140 mm Explanation of space requirement: The dimensions take into account maximum travel distances or usable lengths. Working area length 1600 mm Working area width/depth 1600 mm Explanation of working area: Please add the specified dimensions to the space requirement to obtain the recommended free installation area for the machine. Thicknessing Thicknessing table length 757 mm Thicknessing table width 423 mm Minimum working height (thicknessing) 3 mm Maximum working height (thicknessing) 230 mm Maximum material removal (thicknessing) 5 mm Electrical data Connection voltage 400V Mains frequency 50Hz Rated operating mode drive motor S6 Duty cycle drive motor 40% Power drive motor 3 x 5.0 kW Sliding table and table Format sliding table length 2660 mm Format sliding table width 360 mm Format sliding table height 142 mm Table length 1250 mm Table width 430 mm Table height 900 mm Milling spindle Spindle inclination 0 – -45° Spindle arbor diameter 30 mm Usable length of the spindle 125 mm Spindle speed(s) 3500/6000/8000/10000 min⁻¹ Maximum milling tool diameter Maximum tool diameter, adjustable 210 mm Maximum tool diameter, adjustable 45° 150 mm Maximum tool diameter, mortising 275 mm Planing cutterhead Cutterhead type TERSA Cutterhead diameter 87 mm Number of planing knives 4 pcs Cutterhead speed 5200 min⁻¹ Circular saw unit Beside length 2600 mm Cutting width with parallel fence 900 mm Maximum crosscut width to the left of the saw blade 3260 mm Saw blade inclination 90 – 45° Maximum cutting height at 90° 90 mm Maximum cutting height at 45° 63 mm Maximum saw blade protrusion 90° 100 mm Maximum saw blade protrusion 45° 71 mm Diameter (main) saw blade 315 mm Explanation of diameter (main) saw blade: with scoring saw Speed (main) saw blade 4000 min⁻¹ Feed rate Feed rate 6 – 12 m/min Location: In stock 54634 Bitburg - immediately available -
