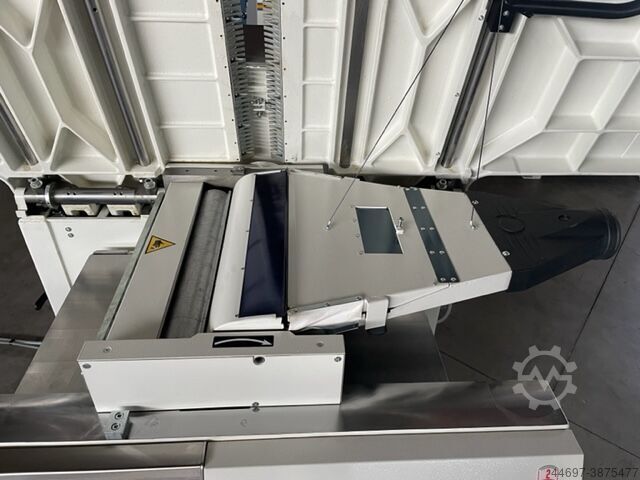

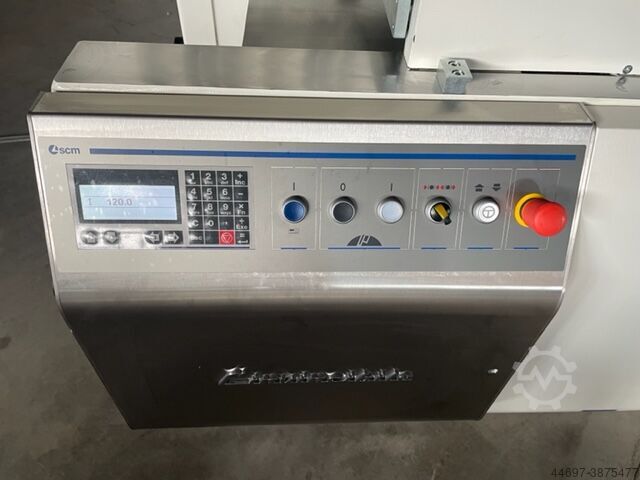

Combined planer

SCM FS 7 L'incincibile

Condition: as good as new (ex-display), Year of construction: 2025, Pressing area: 3000 mm x 1500 mm Operating vacuum: -0.85 bar Vacuum pump flow rate: 40 m³/h Pump power: 1.5 kW Noise level: 70 Db Heating temperature: max. 200 °C Heating power: 16 kW Machine length: 3100 mm Cpedeu Egp Ispfx Ah Iew Machine width: 1650 mm Machine height: 1750 mm Weight: 950 kg

Year of construction: 2020, condition: ready for operation (used), A Rico compressor system consisting of two Atlas Copco compressors, two refrigerant dryers and an Atlas Copco Beko oil-water separation system is available. Screw compressor Atlas Copco GA 45 VSD+, year of manufacture: 2020, air volume flow: 9.4m³/min, operating pressure: 13bar, motor power: 45kW, motor speed: 4500rpm, machine dimensions X/Y/Z: approx. 1200mm/1100mm/2000mm, weight: approx. 860kg. Screw compressor Atlas Copco GA 45 VSD FF, year of manufacture: 2012, power: 45kW, operating pressure: 18.5bar, speed: 3000rpm. 2x refrigerant air dryers Atlas Copco FX 15, air volume flow: 15m³/min, operating overpressure: 13bar, pressure drop: approx. 0.3bar, refrigerant: R410A, refrigerant charge: 2050g, max. inlet air temperature: 60°C, machine dimensions X/Y/Z: approx. 900mm/750mm/1000mm, weight: approx. 160kg. Compressor management system Atlas Copco Equalizer 4.0/ES6-MK5, control range: 2-6 compressors. Oil-water separation system Beko ÖWAMAT 15, throughput range: 6m³-30m³/min, oil outlet: DN40, container volume: 115.5l, filling volume: 84.3l, oil collection container: 2x10l, max. operating pressure: 16bar, machine dimensions X/Y/Z: approx. 1100mm/550mm/800mm, weight: approx. 40kg. System operating hours: 8656h, controller hours: 42334h. Documentation available. An on-site inspection is possible. Cpodpfoxdc Uvjx Ah Ijw

Condition: used, Year of construction: 2002, functionality: fully functional, Cutting size 3,200 x 3,200 mm Maximum cutting height 50 mm Main saw motor 5.5 kW Main saw blade diameter 300 mm Scoring saw motor 1.1 kW Scoring saw blade diameter 150 mm Saw carriage feed adjustable 6 - 32 m/min Program fence feed 18 m/min Number of clamping grippers: 6 pcs. Number of air cushion tables: 3 pcs. Manual angle return device for cuts 100 - 1,250 mm wide PC control based on Windows 2000 Cpsdpfsyba Shex Ah Ijw

Condition: new, Year of construction: 2025, Martin Panel Saw T 77 - New Stock Machine - Top specification - Tiltable to both sides - Cpedpfx Ahew D T Dke Iow Equipment: T 7710/2-a Saw Unit Prex – tiltable to both sides T 7725/2-a Cutting height 205 mm T 7720/2-a Drive power 5.5 kW, stepless T 7730/4-a Table length 3.3 m T 7735/3-a Cutting width 1350 mm T 7743-a Electronically controlled parallel fence, lowerable in end position T 7755-a 3-axis scoring unit T 7757-a Scorer illumination Safe Light T 777572-a MITRE cutting system RadioCompens with continuous support T 7780/1-a Rear table extension 610 x 860 mm T 7792/2-a Sensor monitoring for laterally adjustable protection hood 2 x 45 degrees T 7704/2-a ConnectPad 12.9" / 13" T 7704/20-a OtterBox Defender Case T 7706/1-a ConnectApp at operator level Classic Location: ex stock 54634 Bitburg - available immediately -

Condition: good (used), Year of construction: 2014, functionality: fully functional, operating pressure: 10 bar, Compressor system consisting of: Screw compressor: Atlas Copco GA11VSD+ Refrigeration dryer: Atlas Copco FD70 Pressure accumulator Öwamat 4 Oil-injected screw compressor Codpfxovu A Hdo Ah Iopw with variable speed control Max. operating pressure: 10.0 bar Engine power: 11 kW Volume flow: 25.5-115.2 m³/h Control hours: 61,837 h Operating hours: 21,094 h Engine starts: 267,928 Load cycles: 315,576

Condition: used, Year of construction: 2003, Used machine Year of manufacture: 2003 Features and technical data: - Automatic spindle height and tilt adjustment with decimal increments - Mechanical display for spindle height and electronic display for spindle tilt - Tilting hood with aluminum guides - Adjustable table opening via table slides - System for quick tool change - With long tables featuring extendable workpiece support - Table size: 2500 x 780 mm - Spindle adjustment: -45° to +45° - Spindle diameter: 30 mm - Spindle stroke: 230 mm - Maximum table opening: 300 mm - Motor: 5.5 kW with automatic star-delta start - With forward/reverse rotation - Speeds: 3000/4500/6000/8000/10000 rpm - Electronic programming of spindle height, spindle tilt, and fence position (milling fence) - Extraction ports above and below 120 mm Cpedpsw I H Rqefx Ah Isw Dimensions: 2570 x 1450 mm Weight: approx. 670 kg Availability: short notice Location: Röllbach

Condition: used, Year of construction: 1998, working width: 510 mm cutter head: stripe knife number of blades: 4 Cpsdpfxoxnhpas Ah Iow sourface table length: 2250 mm surface fence adjustable: yes maximum workpiece thickness: 220 mm Höhenverstellung Dickentisch: manual read out for thicknesstable: scala speeds: 4 / 6,5 / 10 / 16 m/min infeed roller: steel outfeed roller: steel table roller: no motor power: 5,5 kW motor brake: yes suction connection: 120mm machine length: 2250 mm machine width: 1100 mm weight: 800 kg

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, power: 7.35 kW (9.99 HP), input voltage: 400 V, input frequency: 50 Hz, cutting height (max.): 105 mm, cutting width (max.): 1,300 mm, saw blade diameter: 350 mm, rotational speed (max.): 4,000 rpm, total length: 4,300 mm, overall weight: 1,300 kg, cutting length (max.): 3,200 mm, pivoting range: 45 °, The Concept 350 combines the advantages of various saw systems: As flexible as a panel saw, the cutting quality of a pressure beam saw, and as ergonomic as a trimming saw. This is the sawing concept for modern industrial production. The machine is a leasing return. Further technical data: - Motorized rip fence with 4 aluminum stops, which move synchronously - Screen control with 8" touchscreen - Air requirement: 6 bar - Sliding table: 1,000 x 400 mm (extension table) - Outrigger table size: 3,200 mm with 2 digital stop jaws - Extraction connection: 1 x 100 mm, 1 x 120 mm - Feed speed: 0 - 40 m/min Cedowzuipjpfx Ah Iopw Special features: - Programmable saw blade height adjustment - Mitre fence +/- 50° - Cutting line laser - Additional support table 800 x 200 mm With the new Concept 350, you no longer need a panel saw! The workpiece rests on the machine and is positioned precisely with a pressure beam. The saw unit can be swiveled from 90° to 45°, is guided with precision, and cuts your workpiece at a constant feed speed of 0–40 m/min, ensuring the best possible cutting results. The standard crosscut fence enables quick cutting to length and efficient operation, with significantly less space required compared to any sliding table saw! Advantages over a sliding table panel saw: - Significantly less space required - The pressure beam secures the workpiece on the machine and guarantees optimal cutting results - The pressure beam prevents the operator from reaching into the saw blade - Ergonomic operation, as the operator no longer has to push the material through the saw blade - Time saving, as the operator does not need to guide the material during the sawing process Including delivery and installation within postal code areas 71, 72, 73, 77, 78, 79, 86, 87, 88, 89.

Condition: good (used), Year of construction: 1982, still well-preserved veneer saw with planer unit Cedpfx Asyizzteh Ispw max. cutting length 3050 mm no rear stop included
