Machining center

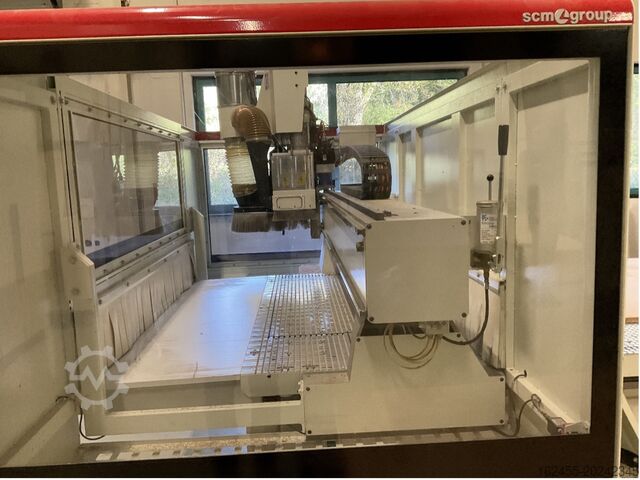

SCM Pratix S15

Condition: excellent (used), Year of construction: 2014, FOR SALE – CNC Machining Center All accessories and attachments are included. They have been removed for safe transport!!! SCM PRATIX S15 B (2014) Manufacturer: SCM Group (Italy) Model: PRATIX S15 B Year: 2014 Serial Number: AH/117758 Machine Type: CNC Nesting / Routing Machining Center Condition: Used – in good working condition Weight: approx. 2850 kg ⸻ Technical Specifications Working area (X / Y / Z): • X axis: 3710 mm • Y axis: 1555 mm • Z axis: 100 mm Axis travel: • X axis travel: 4320 mm • Y axis travel: 1985 mm • Z axis travel: 250 mm Maximum axis speed: • X/Y vector speed: 35 m/min Main electrospindle: • Power: 6.6 kW • Maximum speed: 24,000 rpm • Tool holder: HSK-F63 Tool changer: • Automatic tool changer • 10 tool positions Drilling unit: • 7 vertical drilling spindles • Drilling speed up to 6000 rpm ⸻ Table and Vacuum System • Matrix / aluminum nesting table • Vacuum hold-down system • Vacuum pump capacity: approx. 250 m³/h • Suitable for nesting panels and sheet processing ⸻ Control and Software • PC control system • SCM Xilog Maestro / Xilog Plus software • DXF file interface for CAD/CAM integration • Handheld control terminal ⸻ Machine Dimensions Approximate overall dimensions: Blsdpoyrnq Tofx Afpof • Length: ~6 m • Width: ~2.8 m • Height: ~2.6 m ⸻ Electrical Requirements • Power supply: 400V – 3 phase – 50/60 Hz • Installed current: approx. 37 A (from machine plate) ⸻ Applications This CNC machining center is ideal for: • Furniture production • Cabinet doors and panels • MDF / chipboard processing • Nesting operations • Drilling, milling, routing and grooving • Custom woodworking components ⸻ Additional Information • CE certified machine • Gantry type CNC construction • Central lubrication system • Safety bumper system

Condition: used, Year of construction: 2020, CNC-CONTROLLED MACHINING CENTER WITH MULTIFUNCTION TABLE morbidelli x200 - Drilling and Milling Made for You! This numerically controlled machining center comes equipped with a comprehensive range of drilling and milling tools to meet any requirements in the processing of wood and similar materials. Highlights: • Powerful, featuring drilling spindles with 8,000 RPM and advanced technology – the most robust spindle available on the market, offering over 1,000 hours of maintenance-free operation • Better and more extensively equipped, with a multifunction table that allows for various configuration options, ensuring optimal setup according to your needs • Easier and more intuitive programming thanks to the integrated Cad-Cam module 'MAESTRO CNC' • User-friendly operation: the work table is accessible at all times, and both control cabinet and vacuum pump are integrated. In the PRO SPACE configuration, there are no safety barriers required Construction: Bledpfxeywvlds Afpjf The supporting structure consists of an exceptionally robust monolithic steel base, heavily ribbed and very rigid; its particularly wide support surface is specifically designed to ensure the machine’s stability, providing sustained precision regardless of working conditions, without the need for floor anchoring. The base provides a large, solid foundation for the moveable gantry: the working unit is thus equipped with a balanced, stable, and resilient support capable of withstanding the highest demands, resulting in superior performance quality and greater accuracy. The movable portal is formed from a solid single piece, anchored to both sides of the base and running on high-quality prismatic guides with recirculating ball carriages. Dual drive motors on the X-axis ensure top performance even under heavy-duty conditions. Movement along the lower movable unit (X-axis) and along the gantry (Y-axis) is achieved via helical rack and pinion transmission. This enables higher tooth-by-tooth thrust, greater acceleration, and increased velocity along the X and Y axes. The specially designed helical gearing ensures lower wear on mechanical components and quieter operation. The vertical Z-axis is driven by a ball screw, providing perfect balance under dynamic load as well as allowing for strong acceleration and deceleration. The main milling unit is directly coupled to the Z-axis carriage, guaranteeing top-quality finishing since potential vibrations are fully eliminated. Movement along the X-Y-Z axes is accomplished with brushless motors powered by digital inverters, offering: - Reduced processing times due to improved acceleration - Enhanced positioning accuracy with high-resolution encoders - No need for setup referencing upon startup thanks to absolute encoders - Practically no general maintenance required due to the brushless system, as there are no brushes Axis movement and general machine operating elements are managed by an industrial NS module with digital data transmission.

Year of construction: 2018, condition: ready for operation (used), travel distance X-axis: 3,650 mm, travel distance Y-axis: 2,120 mm, travel distance Z-axis: 170 mm, spindle motor power: 15,000 W, spindle speed (max.): 24,000 rpm, number of axes: 3, This 3s SCM M400F wood mill was manufactured in 2018. It features a modular CNC design with a multifunction worktable, ensuring high-quality machining. The machine boasts remarkable performance with a mobile gantry structure and intuitive programming via Maestro CNC software. It offers a maximum spindle speed of 24,000 RPM and a tool magazine capacity of 36 positions. If you are looking to get high-quality milling capabilities, consider the SCM M400F machine we have for sale. Contact us for further details. • Panel clearance in Z: 170 mm • Workpiece length in dual-station mode: 1650 mm • Axes speeds: vector speed X–Y 85 m/min; Z 30 m/min • Tool magazine: up to 36 positions • Drilling unit: 25 independent vertical spindles; up to 12 independent horizontal spindles; max 8,000 rpm • Integrated blades: X-axis blade Ø125 mm; tilting blade 0–90° Ø160 mm • Operations: vertical drilling on panel surface; horizontal drilling on all 4 sides; disc cutter milling; 3/4/5-axis milling • 5-axis operator unit: “Prisma” Bljdpeyi Drbsfx Afpef • CNC/Software: Maestro CNC (“Xilog Maestro”) Additional equipment • Automated cell version available with loading lift and unloading conveyor belt (optional/subject to configuration)
