Single Edgebanders

SCM STEFANI MD RM

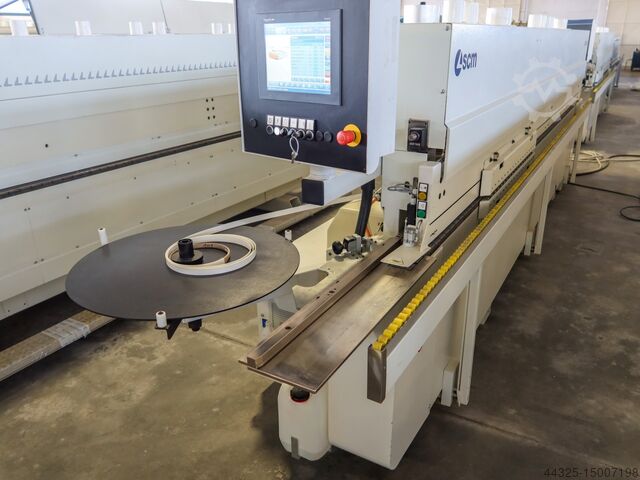

Condition: used, Year of construction: 2021, MEGA 300 TS Numerical Control Panel height 60 mm PVC/Abs mm 3 Bodst Hal Djpfx Aqwell Feed speed up to 22 m/min Working height adjustable electronically by C.N. Motorized rubber belt with higher pressure Introduction system for small panels Panel support guide with electronic adjustment by C.N. Side roller conveyor with idle wheels for panel support Anti-adhesive group Rectifier unit with two motors electronically adjustable by C.N. Roll holder plate for delicate edges Edge magazine with 2 positions Gluing unit for EVA glue with glue tank and pre-melter Edge pressure group on straight profiles with pressure rollers electronically adjustable by C.N Non-stick group Trimming unit with 2 motors with automatic inclination adjustment Trimming unit with 2 superimposed motors Trimming / gleaning group with 2 tilting motors electronically adjustable by C.N. Rounding unit with 4 motors Edge scraper unit electronically adjustable by C.N. Glue scraper unit Oscillating brush group Hairdryer group

Condition: used, machine/vehicle number: 008357, Max. panel width: 4400 mm Max. panel length: 4300 mm Bodjx A Tk Eepfx Aqwoll Main saw blade projection: 75 mm No of Grippers: 9

Condition: used, Year of construction: 2016, Industrial automatic edge banding machine SOLUTION XD KEY FEATURES "E-TOUCH" CONTROL WITH AUTOMATIC PROGRAMMING: A SINGLE "TOUCH" IS ALL IT TAKES TO OPERATE THE MACHINE STANDARD PRESSURE DEVICE WITH DRIVE BELT FOR OPTIMAL PANEL GUIDANCE EDGE BANDING OF ROLL MATERIAL, STRIP EDGES AND SOLID WOOD EDGES GENERAL FEATURES Single-sided edge banding machine in left-hand version for edge banding of roll material and strip edges with all conventional hot melt adhesives. The base frame consists of a stable steel welded frame with higher rigidity, which provides optimal support for the installation of the processing units. The upper pressure beam consists of a thick-walled steel profile and a double trapezoidal drive belt, which is automatically positioned according to the panel thickness. Height adjustment with display on the upper pressure beam and on the operator panel. Manual workpiece feeding system with a large-sized work area and increased support surface facilitates the feeding of large workpieces. Adjustable infeed fence for two positions with automatic selection for processing with or without a pre-milling unit. Upper working units are attached to the pressure beam and mechanically connected to ensure automatic adjustment when changing panel thickness. Lower working units are attached to the machine frame or to the longitudinal support for precise referencing to the panel. All high-frequency motors are operated via frequency inverters. Each unit is equipped with its own inverter for optimal flexibility and improved machine production times. Protective hood for all units positioned after the glue application unit. Polycarbonate windows ensure a good view of the units during processing. Interior lighting of the hood. Protective hood with sound-absorbing material for lower noise emissions during operation. Spacer on the infeed fence allows the machine to be fed with the correct spacing. The spacing is automatically adjusted to the selected feed rate. Dust extraction port arranged on the pivoting control panel, positioned in the infeed area, is adjustable for ergonomic operation. The electrical system complies with current regulations. Electrical components are housed in a metal housing, attached to the machine frame and equipped with doors for easy access in case of maintenance. Standard voltage is 400 V EU 50 Hz (with neutral conductor). Material feed is via a feed chain with 80 mm wide chain plates made of rubberized nylon, for optimal guidance and high load capacity. The chain slides on 2 guides made of hardened and ground steel, one round and one flat guide, to guarantee straight feed and to protect against lateral displacement. Automatic chain lubrication. The amount of lubricating oil is optimized by the control system depending on the panels being processed. External support roller track positioned along the entire length of the machine; consisting of an extendable opening system up to 650 mm (for panels with a maximum width of 1200 mm). E-TOUCH PC control system for quick and easy execution of the main functions of the machine. Includes: – Processing of programs in Just in Time mode – Possibility of management via bills of materials – Possibility of management by Bedpfxsxy Tm Ij Aqwjll

Condition: excellent (used), Year of construction: 2021, Sale on behalf of customer. SCM Gabbiani P80 Panel Saw – Year 2021 – 4300 x 4300 mm For sale is a state-of-the-art SCM Gabbiani P80 panel saw, manufactured in 2021 and in excellent condition. The machine was used in an active carpentry workshop and impresses with its precision, speed, and high reliability in daily operations. Technical Specifications: Cutting length: 4300 mm Cutting width: 4300 mm (large version) Cutting height / blade protrusion: 80 mm Main saw blade diameter: Ø 340 – 370 mm Scoring saw blade diameter: Ø 200 mm Main saw blade speed: approx. 4,650 rpm Scoring blade speed: approx. 5,850 rpm Drive & Power: Main motor: approx. 7.5 – 15 kW (depending on configuration) Scoring unit: approx. 1.3 – 1.5 kW Total connected load: approx. 12 – 15 kW Voltage: 400 V / 50 Hz Speeds: Saw carriage: 6 – 60 m/min (stepless) Pusher speed: up to 60 m/min Pneumatics & Extraction: Compressed air requirement: approx. 300 NL/min / 7 bar Extraction capacity: approx. 2,200 – 2,400 m³/h Extraction ports: 4 x 120 mm Features & Equipment: Air flotation tables for easy handling of large panels Floating clamps for precise cutting Scoring unit for chip-free cuts PC/PLC control (Maestro system possible) Robust industrial design for high workload High repeatability and cutting quality Material suitability: Suitable for: Chipboard MDF / HDF Multiplex / plywood Coated panel materials The machine is fully operational and ready for use. Viewing possible anytime by appointment. Bjdpfx Aoylp S Eoqwell Location: Germany If you are interested, please get in touch – further photos, videos, or detailed information are available upon request. Dismantling and delivery can be arranged at additional cost.

Condition: used, Year of construction: 2020, The Centauro Alfa NC is your go-to solution for comprehensive machining operations on doors and frames. Whether you're working on hinge recessing, lock slots, keep plates or 3-point locks, the Alfa NC is a versatile addition to any door and frame manufacturing process. With a solid track record of delivering reliable performance and exceptional results, this highly popular machine is trusted by industry leaders. Achieve perfect hinge placements with precise recessing operations, create exact lock slots and keep plates for secure installations, and manufacture intricate handle holes, key slots and euro grooves with ease. The Centauro Alfa NC is designed with user convenience in mind, with simple programming via the TOP12 graphic touch screen controller, allowing quick setup and easy adjustments with pre-installed macros, making it accessible for both experienced operators and newcomers to CNC machinery. Experience the difference in quality that this exceptional machine brings to your production line and join the many satisfied customers who trust the Centauro Alfa NC for their door and frame machining needs. Specification: Axis capacity – X 2800mm – Y400 mm – Z 150mm X axis positioning speed 35 m/min Blsdpfey H Iq Rsx Aqwel Y and Z axis positioning speed 6m/min Maximum work table dimensions 3000mm x 618mm Main router head 3.3kw – rpm 0 to 18,000 – ER32 collet 2 x front pneumatic retractable positioning stops 2 x front support legs for doors Elco TOP 12 colour graphic touch screen controller CE side / rear safety guards with front light beam 2020 CE C/W Optional Extras: Y axis stroke 400mm in lieu of 180mm ISO 30 Quick change manual pneumatic toolchanger

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, Used BIESSE STREAM A 6.0 - Year of manufacture: 2018 Bjdpfx Aqsy S E Nnjwjll - AirForce system (zero-gap) - Availability: August 2026 - Smart Touch - Edge milling unit - Gluing unit - Crosscut unit (2-motor) - Flush trimming unit - Fine milling unit - Profile milling unit (2-motor) - Pull knives (profile & flat) - Scraper unit - Separate glue tank - Up to 25 m/min - Machine length approx. 7500 mm - Weight 3800 kg - More pictures and a video are available, please inquire.

Condition: used, Year of construction: 2018, operating hours: 6,442 h, Technical Data Working Area Axis Travel - X-axis: 4000 mm - Y-axis: 1970 mm - Z-axis: 455 mm Machining Area - X working area: 3000 mm - Y working area: 1550 mm - Z clearance: 250 mm Axis Systems - X-axis: Helical rack and pinion drive - Y-axis: Precision ball screw drive - Z-axis: Precision ball screw drive - Linear guides on all axes - Automatic central lubrication Main Spindle - 5-axis electro spindle - Type: 5-axis spindle with universal joint - Power: 12 kW (S6 operation) - Tool holder: HSK F63 - Maximum speed: 24,000 rpm - Ceramic bearings with air cooling - Full power available at approximately 12,000 rpm - Speed range: 1,000 - 24,000 rpm - Clockwise rotation - Integrated tool changer interface - Liquid-cooled spindle Bljdpfx Aqszuw E Rswjl - Electrically controlled extraction hood - Maximum tool weight: 6 kg - Maximum saw blade diameter: 350 mm Tool Changer System 12-position linear tool magazine - Mounted on the left side of the machine frame - Separate station for tool changers - Maximum tool diameter: 250 mm - Maximum tool length: 240 mm 18-position disc tool magazine - Mounted on the gantry - Suitable for drilling tools and tool changers - Maximum tool diameter: 250 mm - Maximum tool length: 280 mm Drilling Aggregated Head DH18 6H 1S drilling head - 12 vertical spindles: 7 spindles in the X direction, 5 spindles in the Y direction - 4 horizontal spindles in the X direction - 2 horizontal spindles in the Y direction - Drilling stroke: 70 mm - Maximum drilling depth: 70 mm - Tool holder: 10 mm - Individual control of the spindles - Integrated slotting saw - Saw blade diameter: 120 mm - Maximum slotting saw blade thickness: 5 mm - Speed up to 7,500 rpm Vacuum and Clamping System Console Table - 6 consoles with front and rear stops - Wireless two-circuit vacuum system - Height of vacuum cups: 100 mm - Pneumatic console locking - Programmable pneumatic stops - 4 adjustable side stops - Reinforced support arms - Load-bearing capacity of the support arms: 40 kg each Vacuum Pump Capacity: - 90 m³/h at 50 Hz - 108 m³/h at 60 Hz - Additional vacuum connection for template machining - Controlled compressed air connections for frame clamps - Separate vacuum and compressed air switching for all consoles WoodFlash Software Package Control Panel - Complete machine operation via the CNC panel - Program creation and editing - Tool and workpiece management - Manual machine commands - Monitoring of vacuum, compressed air and safety systems Mobile Control Panel - 24" LED monitor - Keyboard and mouse - USB connection Operator Device for Feed Rate - Manual feed override potentiometer - Variable feed rate adjustment during machining Safety Devices - CE safety system - Safety mats instead of light curtains - Emergency stop system - Protective fence on the left side - Safety monitoring of the doors - Sensors to monitor vacuum and compressed air Optional Equipment - External release switch - Protected energy chain system - Additional locking for A and C axes - Saw blade changing station on the gantry - Operating hours: 6442 hrs.

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, edge thickness (max.): 25 mm, height adjustment type: pneumatic, actuation type: electric, total height: 1,950 mm, total length: 8,000 mm, total width: 1,300 mm, overall weight: 7,500 kg, This high-performance SCM Stefani Solution XD is engineered for high-volume multi-shift industrial manufacturing, delivering continuous accuracy and a flawless edge finish even on the most sensitive high-gloss or thin-film materials. Equipped with a solid monolithic structure and advanced NC electronic touch controls, this specific 4-cabinet configuration maximizes stability and houses a comprehensive setup of high-end processing aggregates. Manufacturer: SCM Group (Italy) Model: Stefani Solution XD Configuration: Right-Hand Feeding Condition: Excellent, Fully Operational Location: Plovdiv, Bulgaria Availability: Immediate Estimated Footprint & Shipping Dimensions Total Machine Length: Approx 8,000 mm Total Transport Length: Approx. 8,300 mm (including extended infeed guides) Machine Width: Approx. 1,300 mm (transport width with side panel supports retracted) Machine Height: Approx. 1,950 mm (with safety hoods closed) Estimated Operating Weight: 7,500 kg Bjdpfezcccrjx Aqwoll Technical Specifications Feed Speed: Up to 25 – 30 m/min (NC-controlled variable track speed) Panel Thickness Capacity: 8 mm to 60 mm Edgeband Thickness Capacity: 0.3 mm to 22 mm Max Coiled Edge Capacity: 3 mm Actuation Type: Pneumatic & Multi-Axis Electronic Servo Motors Height Adjustment: NC-Motorized Automatic Top Belt Pressure Beam Pneumatic Requirement: 6 bar Control System Software: Maestro Pro-Edge / Active Edge Interface Premium Installed Working Units (Aggregates) This machine features a robust multi-station arrangement with a multi-hose high-efficiency central dust extraction layout: Pre-Milling Unit: High-capacity dual cutter block layout utilizing Hydro-Lock tool connections to guarantee zero vibration during panel edge squaring. Advanced Gluing Station (VC-600): Plasma-treated glue pot capable of rapid EVA and PUR hot-melt changes, backed by rapid pre-melting technology. End-Trimming & Fine Trimming Units: Rigid, low-inertia dynamic structures built to ensure zero scoring on fragile surfaces. Round 4 Corner-Rounding Unit: Multi-axis 4-motor high-speed profile rounding unit processing at up to 30 m/min. Finishing Stations: Multi-edge profiling scrapers, glue scrapers, and motorized buffing units for an out-of-the-box clean edge. Automated Axis Positioning: Complete machine changeovers happen in minutes directly from the touchscreen console, maximizing uptime. Top Track Pressure Belt System: Secures fragile components far better than traditional small-wheel setups to keep protective films pristine. Energy Management Built-In: Programmed with the SAVENERGY system to reduce plant power consumption during cycle idle times.

Condition: used, Year of construction: 2017, operating hours: 9,370 h, Technical Data Working Area Axis Travel - X-axis: 4000 mm - Y-axis: 1970 mm - Z-axis: 455 mm Machining Area - X-axis working area: 3000 mm - Y-axis working area: 1550 mm - Z-axis clearance: 150 mm Main Spindle - 5-axis electric spindle - 5-axis spindle with universal joint - Power: 12 kW (S6 operation) - Tool holder: HSK F63 - Maximum speed: 24,000 rpm - Speed range: 1,000 - 24,000 rpm - Ceramic bearings - Liquid-cooled spindle - Clockwise/counterclockwise rotation - Integrated tool changer interface - Electrically controlled extraction hood - Maximum tool weight: 6 kg - Maximum saw blade diameter: 350 mm Tool Changer System Linear Tool Changer - 12-position - Interface for tool holders - Maximum tool diameter: 250 mm - Maximum tool length: 240 mm Disc Tool Changer - 18-position - Mounted on the traversing portal - Maximum tool diameter: 250 mm - Maximum tool length: 280 mm Circular Saw Blade Changer - Maximum saw blade diameter: 350 mm Drilling Unit DH18 6H 2S Drilling Head - 12 vertical spindles: 7 in the X-direction, 5 in the Y-direction - 6 horizontal spindles: 4 in the X-direction, 2 in the Y-direction - Drilling stroke: 70 mm - Maximum drill length: 70 mm - Tool holder diameter: 10 mm - Individual drive for each spindle Dadoing Saws - 2 dado saw blades: 1 in the X-axis, 1 in the Y-axis - Maximum saw blade diameter: 120 mm - Maximum saw blade thickness: 5 mm Bodpfx Aqszuw H Ijwsll - Speed adjustable up to 6,000 rpm Vacuum and Clamping System Console Table - 6 consoles - Front and rear programmable stops - Wireless dual-circuit vacuum system - Height of vacuum suction cups: 100 mm - Pneumatic console locking - 4 adjustable side stops - Additional support arms Vacuum Pump Flow Rate: - 90 m³/h at 50 Hz - 108 m³/h at 60 Hz Additional Vacuum Equipment - Vacuum connection for template machining (left side) - Additional vacuum connection for template milling (right side) - Controlled compressed air connections for frame clamps - Separate vacuum and compressed air control for all consoles WoodFlash Software Package Control Panel - Complete machine control - Loading and execution of programs - Tool and machining management - Sensor monitoring - Manual machine commands Mobile Control Panel - 24" LED monitor - Keyboard and mouse - USB port Handheld Control for Feedrate Control - Feedrate override - Emergency stop button - Manual feedrate adjustment during machining Safety Devices - CE safety system - Light curtain safety system - Emergency stop system - Protective fence on the left side - Safety monitoring of the doors - Vacuum and compressed air sensors - Additional safety mat system Operating Hours: 9370 hours
