Welding Table

SIEGMUND 750V - 1,0 x 1,0 /22

Condition: new, table length 3000 mm table width 1500 mm table height 850 mm Vertikal stroke 50 mm weight of the machine ca. 1,1 t dimensions 3,0 x 1,5 x 0,9 m Welding table "SIEGMUND Professional 750 + plasma nitrided" is made of high quality steel S355J2 + N and is plasma nitrided. Surface hardness max. 750 Vickers. The table has a material thickness of approx. 17-19.0mm. The holes have a diameter of 16mm. Hole arrangement in 50 mm grid on the table top, Ijdegazmkopfx Apcoar Side walls 150mm with parallel hole arrangement in a 25 mm grid. Including basic equipment. Table height 850mm Accessories shown are optional. Price plus packaging and transport. Other dimensions available.

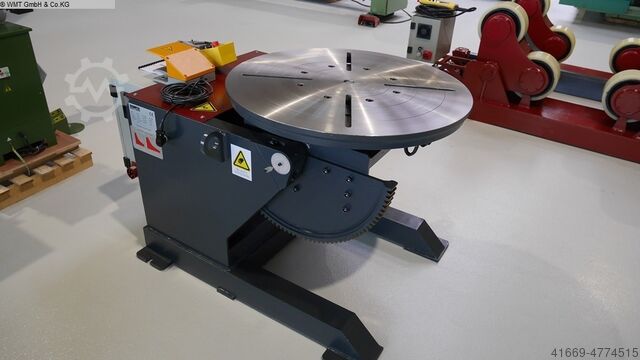

Condition: new, table diameter 900 mm table load 1,0 t swivelling range 135 Grad Iodpfx Aefv Axxjpcjar turning speeds 0,12 - 1,2 U/min 820 mm welding current 500 Ampere total power requirement 0,75 + 0,55 kW weight of the machine ca. 1,1 t dimensions of the machine ca. 1,5 x 1,0 x 0,9 m • Self-locking gear, therefore no forward and backward at eccentric Load. • Electronic components from Schneider, Siemens and Delta. • Frequency-controlled stepless speed of the turntable. • High stability due to the robust construction. • welding power transmission • CE certificate. • Very good price / quality ratio. • The D-HBE series comes as a standard version with a cable remote control and delivered with a footswitch.

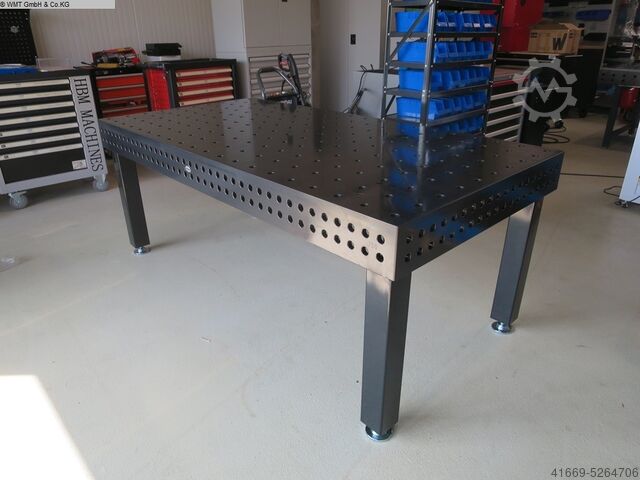

Condition: new, table length 2000 mm table width 1000 mm table height 850 mm Vertikal stroke 50 mm weight of the machine ca. 0,74 t dimensions 2,0 x 1,0 x 0,9 m Iaedpjgazmcsfx Apcsr Product description - High quality steel S355J2+N + plasma nitriding - Material thickness approx. 17 – 19 mm - Bore Ø 22 mm - Holes surface 100x100 mm grid - Rounded corners, edges and holes - Height of side panel 150 mm - Hole spacing in side cheeks 50 mm - Including scaling on the surface - Construction reinforced with ribs - Grid lines enable precise setups - Special equipment for welding tables is available on request.

Condition: like new (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: 106882-11, total length: 4,400 mm, total width: 1,700 mm, total height: 2,700 mm, overall weight: 7,000 kg, The drilling process of the deep hole drilling machine utilizes the single-lip drilling method. Drilling Unit Information: - Drilling depth: 200 mm - Min./max. drilling diameter: 1–12 mm based on ST 60 - Number of spindles: 2 - Spindle distance: 200 mm - Spindle drive: 2 x 2.4/4.2 kW - Infinitely variable spindle speed: 1,000–20,000 rpm - Infinitely variable feed rate: 10–25,000 mm/min - Rapid traverse: 25,000 mm/min - Slide travel (nominal): 650 mm - Slide width: 460 mm - X-axis slide travel: 200 mm, rapid traverse: 25,000 mm/min - Y-axis slide travel: 200 mm, rapid traverse: 25,000 mm/min Fluid Information: - Coolant supply: deep hole drilling oil - Tank capacity: 500 liters - 1x automatic filter, filter performance: 50 l/min - 1x monitoring filter - 2x ELB drilling oil supply lines - 1x flow divider - 1x air cooler with recirculation pump - 1x electrostatic oil mist extraction unit - 1x scraper belt chip conveyor - 1x hydraulic unit and pneumatic unit/equipment - 1x sump pump - 3x submersible pumps - 1x radial piston pump with remote adjustment: Delivery rate: 1–38 l/min Pump drive: 7.5 kW Spindle Unit: - Motorized spindles with frequency-controlled, infinitely variable speed regulation - Spindle head with connection for tool holder - 2 x tool holders for collet sleeves according to VDI 3208 SE10x60, permanently bolted to the spindle head of the motorized spindle Drill Bushing Carrier: - The drill bushing carrier is positionable via the NC axis - Cast iron design, mounted on linear guideways - W-axis drive via AC servomotor and ball screw with indirect, absolute position measurement system Workpiece Slide: - The workpiece slide is designed as a cross-slide for vertical and horizontal positioning of the workpiece, for mounting clamping plates or special fixtures - Base unit in cast iron design with linear roller guideways - X and Y axes driven by AC servomotors and ball screws - Direct, absolute position measurement systems. Table plate with clamping or alignment grooves Clamping Table with NC rotary indexing device for positioning: - With rotary and swivel axes - Hydraulic clamping in rotary and swivel axes Technical Data: - Swivel range: 270º - Rotary range: 360º Iasdpfx Apswh Rp Ejcor - Center height: 25 ± 0.02 - Spindle distance: 200 ± 0.005 - Indexing accuracy: rotary axis ± 15" / swivel axis ± 30" Electrical Equipment Information: - 1x drilling process monitoring - 1x CNC control 840D (Solution Line) Connection Data: - Operating voltage: 3AC 400V ± 10% - Frequency: 50 Hz - Control voltage: 24 V DC - Total rated power: 25 kW Additional Machine Equipment: - 2 x holders for resilient drill bushing holders, arranged on the drill bushing carrier - For max. drilling Ø18 mm.

Condition: good (used), functionality: fully functional, Year of construction: 2002, load capacity: 25,000 kg, lifting height: 3,200 mm, Description WEIGHT OF FORKLIFT 31100 KG POWER 100KW MAX LIFTING CAPACITY 25000 KG MAX LIFTING: 3200mm CAMERA FOR CLIENT WE CAN ORGANIZE AS WELL SPECIAL TRANSPORT FOR CLIENT Specifications Manufacturer MORA - SPAIN Iodpevlazaofx Apcsar Model M250 CS Year 2002 Condition Used overhauled

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, Description WE OFFER AN FULLY FUNCTIONAL IN GREAT WORKING CONDITION AND WILL BE AN GREAT OPORTUNETEY INCLUDING FULLY TOOLINGS AND ACCESSORIESS , READY FOR WORK. MACHINE STILL WORKING IN DAILY ORDERS TYPE: HARTFORD HSA 2215 AD + HEIDENHAIN TNC530 IDEAL MACHINE FOR MAKING BIGGER PLATES MACHINE HAS COOLING TROUGH SPINDLE FULLY EQUIPPED WITH TOOLINGS AND ACCESSORIESS travel: X: 2200 mm Y: 1500 mm Z: 780 mm SPACE BETWEEN TABLE AND SPINDEL: 220-1000mm SPINDLE SPEED:10.000RPM SPINDLE POWER : 30KW - DIRECT DRIVE Tool magazine: 30 Iedjydr Imopfx Apcjar Positioning accuracy: 0.01mm Main motor power: 18.5kw TOTAL WEIGHT : 28 TON STANDARD EQUIPMENT: - + TNC SOFTWARE - + HEIDENHAIN three-point measuring bars - + PRE-TENSIONED SPINDLES - + HEIDENHAIN handwheel HR410 - + OIL COOLING OF THE SPINDLE - + CTS cooling through the spindle 20 BAR - + HEIDENHAIN 3D touch probe for workpiece measurement TS640 - + LASER NC-4 F230ZA TOOL MEASUREMENT - + HEIDENHAIN SOFTWARE OPTION 1+ 2 (computer HSCI, CC6222) - + HEIDENHAI PL-510 - + SPINDLE AIR CURTAIN - + OIL SKIMMER - + EXTRA LIGHT - + MACHINE ENCLOSED ON ALL SIDES - + SPINDLE TEMPERATURE COMPENSATION ADDITIONAL EQUIPMENT: WITH MACHINE COMES FULLY ATC TOOLS COMPLETED LOADED TOOLINGS AND ADDITIONAL FULL TOOLS FROM THE TABLE ALL OTHERS TOOLS AND ACCESSORIESS WHICH BELONG TO MACHINE WE ORGANIZE FOR CUSTOMER ALSO DISMANTLING LOADING AND SHIPPING

Condition: good (used), Year of construction: 2005, functionality: limited functionality, Description MEASURING ARM IN SUITCASE. EQUIPMENT WE CAN SEND FOR CUSTOMER WOLDWIDE Specifications Manufacturer FARO - SWITZERLAND Isdpfovlaq Iox Apcoar Model PLATINUM P04 Year 2005 Condition Used
