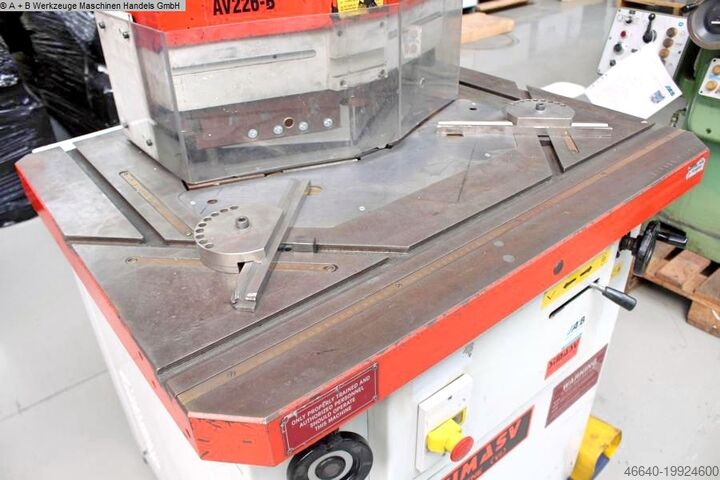

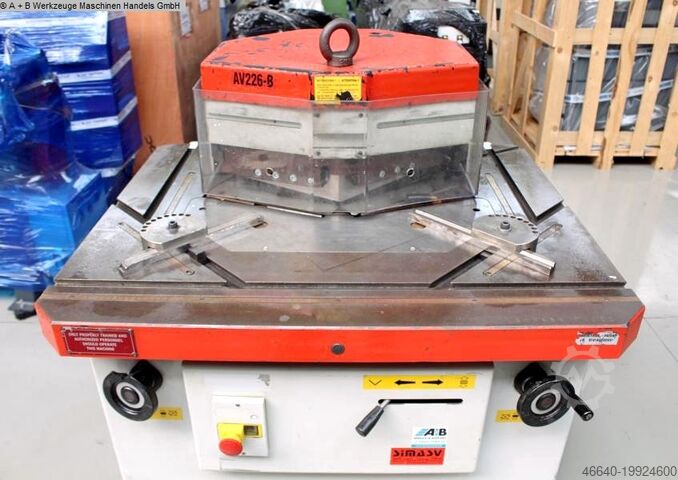

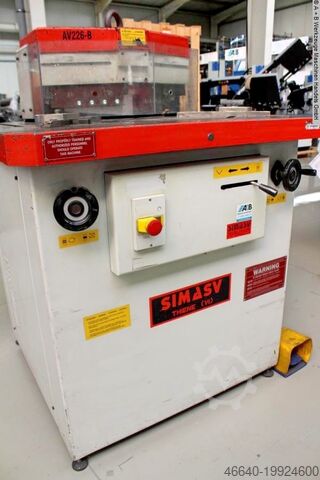

Notching Machine

SIMASV AV 226/B

plate thickness 6.0 mm ST
Godpfx Afsxabx Espobu
thickness at "Niro-steel" 4.0 mm
plate thickness 8.0 mm ALU
angle adjustable from - to 30 - 140 Grad
table: 950 x 890 mm
blade length 220 x 220 mm
stroke 35 H/min
work height max. 1150 mm
total power requirement 3.0 kW
weight 800 kg
range L-W-H 1200 x 1200 x 1400 mm
New price approx. 20.000 euros
Special price on request

- in checked condition - machine video -
?v=QmUbaV41BfA

Equipment:
- electro-hydraulic notching machine
* ??with adjustable angle 30° – 140°
- cutting capacity up to 6.0 mm sheet thickness (R42/mm2)
- made of the special spheroidal cast iron GS500.
- the cutting movement takes place from top to bottom
- robust work table made of steel with conical grooves
* which ensure optimal adhesion of the stop angles
- the scales are embossed
- automatic cutting gap adjustment (patented)
- system for the automatic adjustment of the gap
* between the upper and lower knives
* for simultaneous cutting of different thicknesses
- 2x angle-adjustable locking stops
- finger protection made of plexiglass
- 1x freely movable foot switch
- waste chute, side
- load hook for easy transport
- operating instructions (PDF)
