CNC press brake

SMD Yawei PBB-630/6200

Condition: used, Year of construction: 1998, Technical details: turning diameter: 830 mm turning length: 4000 mm turning diameter over bed slide: 540 mm spindle bore: 130 mm turning speed range: 2 - 1600 U/min rapid speed: 4 / 5 m/min feed speeds: 1 - 2000 mm/min total power requirement: 55 kW weight of the machine ca.: 7,5 t dimensions of the machine ca.: 7 x 2,2 x 2 m with Teach In controll R&D MTC-K MULTIFIX toolpost size D coolant attachment Gujdjwwlt Rjpfx Alxob *

Condition: used, Year of construction: 2018, functionality: fully functional, turning diameter: 1,000 mm, turning diameter over bed slide: 710 mm, turning length: 8,000 mm, Used heavy-duty lathe with extensive steady rest equipment – ideal for pipe machining and long rolls! This robust conventional lathe with an impressive turning length of 8,000 mm was specifically designed for pipe machining applications. The sophisticated machine design allows the cutting edge to easily pass the open steady rests – ideal for precise machining of long, hollow workpieces. Technical Highlights: Gsdpfxsv Tntto Alxoub • Turning diameter over bed: 1,000 mm • Turning diameter over support: 710 mm • Center height: 900 mm • Turning length: 8,000 mm • Spindle bore: 155 mm • Machine weight: approx. 18.2 tons • Main drive: 30 kW with frequency converter, continuously variable Design advantages: • Machine bed cast in one piece and artificially aged – for maximum stability and stress-free operation • 5 hardened and ground guideways for maximum precision • Continuous feed control of the longitudinal axis via ball screw – no Norton or lock-box gearing • Electric-driven tailstock with hydraulic clamping • Manually adjustable cross support with trapezoidal thread spindle • 4-station tool carrier, manually pivoting • Triple-guided turning support – for extremely smooth running Steady rests & tube processing: • Various steady rests (stationary and follow-on) optional Available • Motorized steady rest carriers with hydraulic clamping • Spindle adjustment conveniently possible from the operator's side • Traveling steady rests can be mounted either on the left or right Application: Thanks to its sophisticated design, the machine is ideally suited for light to medium-duty machining – especially for the precise machining of tubes. The continuously variable speed and feed control ensures high flexibility and ease of use.

Condition: refurbished (used), Year of construction: 1996, machine/vehicle number: 02/510/004, functionality: fully functional, power: 18.5 kW (25.15 HP), input voltage: 400 V, input current: 63 A, input frequency: 60 Hz, stroke length: 265 mm, table height: 800 mm, total length: 2,670 mm, total width: 4,100 mm, total height: 2,800 mm, overall weight: 22,000 kg, travel distance X-axis: 500 mm, controller manufacturer: Cybelec, controller model: Visitouch 19" 2D, working width: 4,100 mm, bending force (max.): 225 t, back gauge speed R-axis: 100 mm/s, control type: CNC control, degree of automation: automatic, back gauge adjustment: CNC-controlled, number of axes: 4, actuation type: hydraulic, Equipment: CE marking, centralized greasing system, documentation/manual, emergency stop, foot remote control, Pressbrake fully updated with a new numerical control 2D from Cybelec Switzerland Gedpfx Alew I A Ncexeub

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, controller manufacturer: Cybelec, controller model: Cybtouch 12, working width: 6,000 mm, bending force (max.): 300 t, control type: CNC control, number of axes: 4, Equipment: CE marking, emergency stop, european tool clamping system, safety light barrier, Used 6metre x 300ton Adira Cnc Press Brake - Hydraulic Pressbrake Gjdpfx Alewu Ua Usxeub 300 Ton 6000mm bending Length Back gauge: X and Z Axis Upgraded touch screen control Cyblec CybTouch 12 Control System Year of Manufacture - 2005 Good service history including rebuilt ram cylinders, rebuilt crowning and upgraded control system Euro tool clamping

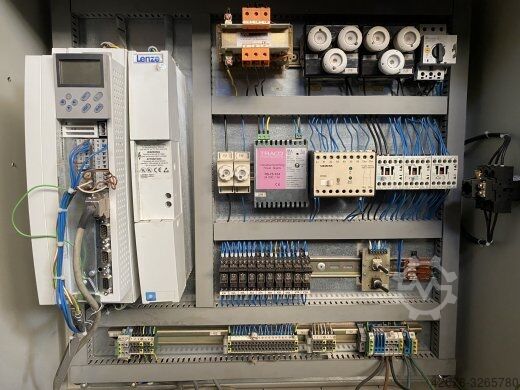

Condition: used, Year of construction: 2005, 1 used crankshaft milling device in very good condition for mounting e.g. on a lathe for milling crankshafts or other milling work Godpfeddziyex Alxoub Make: SEMA, Origin Austria Model: SE 100 Year of manufacture: 2005 Technical data: Spindle holder ISO 50, concentricity / test mandrel L=300 mm = 0.01 mm Speed range, infinitely variable, currently set to 2,000 rpm Spindle is designed for up to 3,000 rpm Drive power currently 15 kW The milling spindle is designed for up to 25 kW Bearing diameter 110 mm The 2 screwed-on adapter plates under the milling spindle are each screwed on. These plates can be used for your lathe, reworked or may have to be newly manufactured. Screw-on surface of the milling spindle: L x W: 490 x 250 mm Accessories / special features: Milling spindle: - The milling spindle is mounted on the face support of your lathe - Infinitely variable speed adjustment, LENZE frequency converter, designed for up to 30 KW - Clockwise / counter-clockwise rotation - Lifetime lubricated spindle bearings - Sturdy construction with hardened and ground spindle - High precision - Spindle with 2 bearings and 5 spindle bearings - Tool tightening via a threaded spindle - Mobile carriage with control panel - Emergency stop - Lockable main switch Drive gear for the main spindle: - A long drive rod is mounted in the spindle bore and connected to the gearbox - Infinitely variable speed adjustment, LENZE frequency converter - Clockwise / counterclockwise rotation - Jog mode Fast / slow The pictures show this unit mounted on a SARO SPA 10 x 3000 universal lathe for milling crankshafts. This lathe is not included in the scope of delivery! Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 D - 44143 Dortmund - Wambel

Condition: used, Year of construction: 2022, turning diameter over bed 540 mm turning diameter over slide rest 340 mm turning diameter in the gap 800 mm length of gap 350 mm turning length 3000 mm turning speeds 40-1800 U/min bed width 340 mm 3-jaw chuck 255 mm spindle passage 52 mm No. 65 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team Guodpfjyq Sxxex Alxeb

Condition: used, Year of construction: 2010, Vertical metal band saw Manufacturer: Bauer Model: VG 450 L Year of manufacture: 2010 Cutting capacity: 90° round = 450 mm 90° flat = 450 x 620 mm 45° left = 450 x 420 mm 45° right = 450 x 390 mm 30° right = 450 x 250 mm Material feed height: 930 mm Saw band wheel diameter: 450 mm Saw band dimensions: 4,450 x 34 x 1.5 mm Cutting speed: 35, 70 m/min. Special equipment - stepless adjustment Saw band guidance: Deflection rollers + carbide guides Manual material clamping via handwheel + trapezoidal spindle Saw frame feed: hydraulic cutting pressure control Material feed: manual Spray device Guedpfeyfib Hox Alxeb Compressed air (min. 2 bar) Designed for miter cuts Saw motor: 2.2 kW Coolant pump: 0.1 kW Hydraulic pump: 0.37 kW Dimensions (L/W/H): 2,150 x 1,400 x 2,250 mm Weight approx. 900 kg Operating manual ä12526

Condition: used, Year of construction: 1998, turning diameter 555 mm turning length 4000 mm control Monforts Control System type MTC-K CCUO turning diameter over slide rest 290 mm cross movement . mm spindle passage . mm turning speeds 1600 U/min transmission ratio . quill stroke . mm rapid traverse . m/min main drive motor . kW 3-jaw chuck Rotha-S Plus 3-jaw-chuck diameter . mm total power requirement . kW weight of the machine ca. . t dimensions of the machine ca. . m Serial number: 262/01 Gjdpfjyqv N Uex Alxeub Machine number: Quick-change tool post Coolant system Monitor Chip conveyor The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

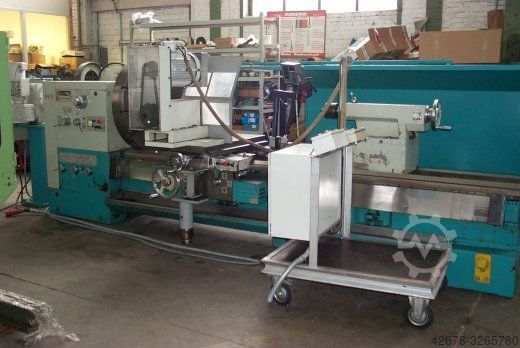

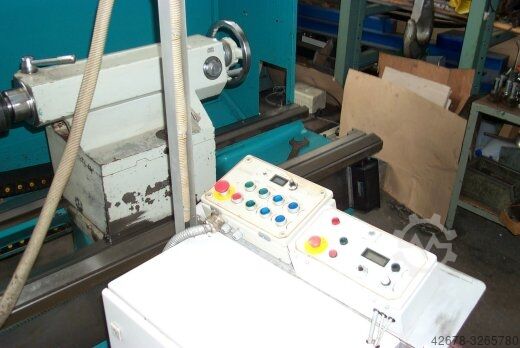

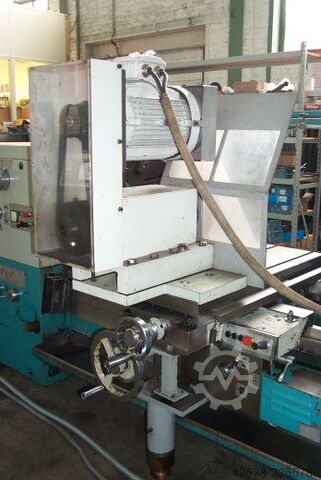

Condition: used, Year of construction: 2006, SEMA SE 100 milling spindle unit, e.g. for the production of crankshafts Spindle holder flange Speed with this gearbox 97 rpm Spindle is designed for up to 3000 rpm Drive power, currently 22 kW The milling spindle is designed for up to 25 kW Bearing diameter 110 mm Disc milling cutter SANDVIK Ø 700 x 25 mm Immersion depth of the disc cutter 235 mm Accessories / Special features: - Side milling cutter SANDVIK Ø 700 x 25 mm - Lubricated-for-life spindle bearings - Sturdy construction with hardened and ground spindle - High precision - Spindle with 2 bearings and 5 spindle bearings - Tool tightening via flange New price at the time: approx. 34,500.00 € net Godpfx Aoddzi Aolxoub Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 D - 44143 Dortmund - Wambel
