Washing plant with grating mill and stone removal plant

SONDERANGEBOT - ISAR IWR 2000+IPE 4MAX

SPECIAL OFFER! Washing system with granulator + destoning system
IWR2000

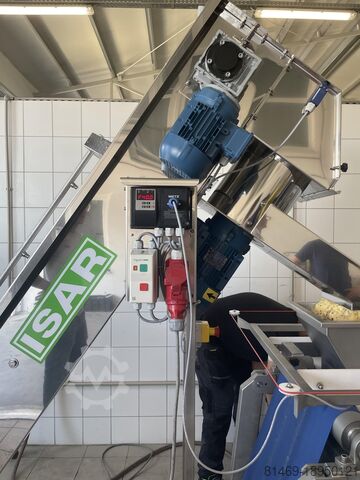

Washing system with granulator for fruit and vegetables. The system is made entirely of stainless steel and features a sorting grate, a washing tank, and a conveyor belt. The fruit falls into the water and, after pre-washing, is transported along the conveyor belt, where it is thoroughly cleaned with fresh water. The cleaned fruit is then transferred to the mill, where it can pass through the desired sieve to reach the desired mashing unit.

• Easy to clean
• Minimal maintenance
• The belt speed is continuously adjustable in both directions
• With 2 steerable rollers
• With 2 fixed rollers
Technical information
Rated capacity: 2000 kg/h
Power requirement: 3 kW, 400 V, 10 A
Mash discharge height: 1400 mm
Wash tank connection: G 6/4"
Cleaning connection: G ½"
Kjdpowcl Uljfx Ahusdg
Material: Wnr. 1.4301, AISI 304 stainless steel
Water consumption: approx. 12 L/min.
Dimensions:
Length: 2700 mm
Width: 840 mm
Height: 2270 mm
Weight: 150 kg

IPE4MAX

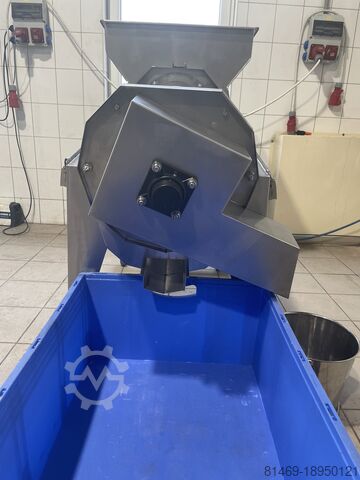

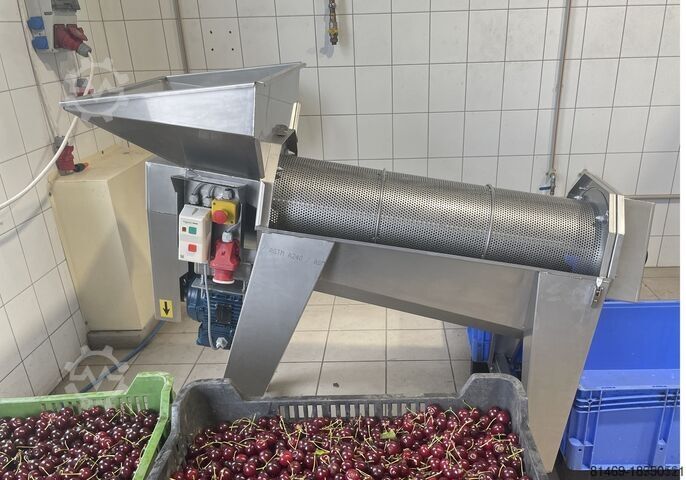

The destoning and straining system is suitable for processing fruit and vegetables. It is equipped with interchangeable sieves and an adjustable rotating rotor for straining or pitting stone fruit, pome fruit, and various types of fruit and berries. The pulp and seeds are ejected separately. The sieves can be replaced quickly and easily. The system is supplied with one sieve; additional sieves can be ordered separately.

• Food-safe rubber scraper
• Adjustable distance between sieve and scraper
• Rolling machine feet/swivel casters with brakes

Technical information
• Rated capacity: up to 4000 kg per hour
• Power requirement: 4 kW, 400 V, 16 A
• Material: Wnr. 1.4301, AISI 304 stainless steel
Sieve sizes:
• 0.8 mm: Berries, puree
• 1.5 mm: Berries, puree
• 3 mm: Apple, pear puree
• 5 mm: Cherry
• 8 mm: Plum, apricot
• 10 mm: Peach, mango
Dimensions:
Length: 1130 mm
Width: 574 mm
Height: 1138 mm
Weight: 125 kg
