Crushing and/or screening plant

Sonstige/Other Gasparin Prallbrecher GI1010C K1

Additional options and accessories



Notes

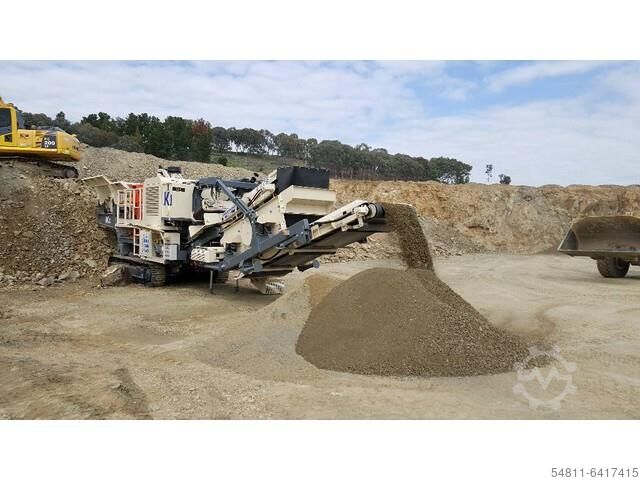

Mobile impact crusher on crawler track

The K1 impact crusher with tracked undercarriage, the new addition to the product range with impact mill with a capacity of 250 t/h .

Can be equipped with closed circuit re-screening to perfectly calibrate the final product.

It is appreciated for the excellent quality of the crushed product and also gives its best in terms of operating economy.


Production capacity: approx. 250 TO/H
Proportional distributor with \"Load Sensing \" for optimization of the system and reduction of fuel consumption by approx. 30%.
gap hydraulically adjustable even during the crushing operation
fast blocking system with wedges and folding cylinders
dust extraction system
tank pump
magnetic separator
warranty 1 year up to max. operating hours from start of operation of the plant

Technical data:

Impact crusher type M x 700 mm
Dedpjhd Naiofx Acwjcn
Crushing gap from 30 (20) to 100 mm (gap adjustment to 20mm only possible with 3rd grinding track)
Feed hopper 4 m³ - 1800 x 3700 mm
Grizzly feeder 900 x 3400 mm
Main conveyor belt 800 x 9600 mm
4 cylinder diesel engine with constant speed 82 HP/60 KW , exhaust gas stage V
Control panel
chain drive 400 x 2900 mm
Weight: kg
Transport length 12560 mm
Transport width:2550 mm
Transport height 3200 mm

More information

Purpose: construction, General condition: very good, Technical condition: very good, Visual condition: very good,
