Crushing and/or screening plant

Sonstige/Other Gasparin Prallbrecher GI1010CVR K1R

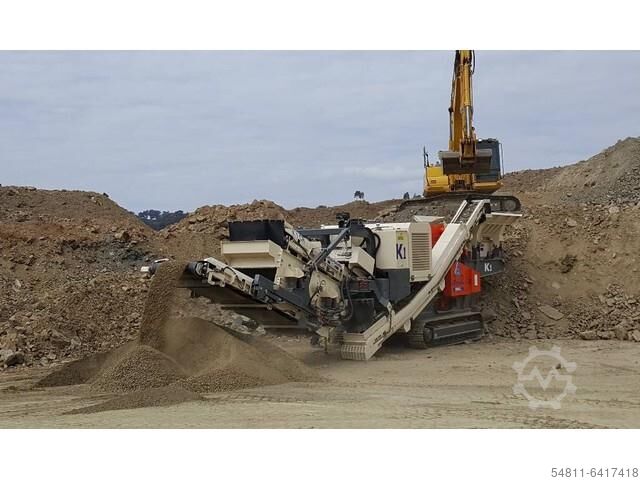

Mobile impact crusher Gasparin GI1010CVR K1R on tracked chassis

K1R machine with crawler undercarriage, the latest addition to the product range, featuring an impact mill with a capacity of 250 t/h.

Can be equipped with a downstream screening system with return to the closed circuit to perfectly calibrate the final product.

It is valued for the excellent quality of the crushed product and also performs optimally in terms of operational efficiency.

Production capacity: approx. 250 tons/hour
Proportional distributor with "Load Sensing" for system optimization and a reduction in fuel consumption of approximately 30%.
Clearance adjustable hydraulically, even during the crushing process.
Fast locking system with wedges and pivoting cylinders.
Dust extraction system.
Tank pump.
Magnetic separator.
Warranty: 1 year or up to a maximum number of operating hours from the start of operation of the plant.

Technical data:

Impact crusher, type M x 700 mm
Crushing clearance from 30 (20) to 100 mm (clearance adjustment to 20 mm only possible with the 3rd grinding path).
Feed hopper, 4 m³ - 1800 x 3700 mm
Single-deck vibrating screen, 950 x 1500 mm
Main conveyor belt, 800 x 9600 mm
4-cylinder diesel engine with constant speed, 82 hp / 60 kW, emission stage V
Control panel
Tracked chassis, 400 x 3310 mm
Weight: kg
Transport length: 15400 mm
Transport width: 2550 mm
Transport height: 3300 mm
Return system: single-deck screening machine 1200 x 2500 mm. Swiveling discharge conveyor belt under the screening machine for return to the circuit.
Two-deck vibrating screen with conveyor belt for fine material.

Further information:
Pgodpjhd Namefx Ap Ejn

Intended use: construction industry, general condition: very good, technical condition: very good, optical condition: very good, transport dimensions (L x W x H): 15.4 x 2.55 x 3.3.
