Chip extraction - Accessories

Spänex

Condition: used, Performance: approx. 6 briquettes/min Material silo: 4 m³ Fan: 11 & 4 kW Briquetting plant consisting of: · Spänex filter tower with rotary valve (cell wheel sluice) · 2 x extraction fans Cgodpexp Izrjfx Advjn · Spänex SHB 250 K1 briquetting press The filter tower extracts material from production, which is then transported via the rotary valve and an additional fan to the material silo of the briquetting press. Available by arrangement from March 2026. The sale of the machine is subject to prior sale of the planer: Ref. No. 100102 or the entire planing mill: Ref. No. 100101

Condition: like new (used), Year of construction: 2020, operating hours: 2 h, functionality: fully functional, type of input current: three-phase, volume flow: 1,500 m³/h, negative pressure: 2,100 Pa, intake manifold diameter: 140 mm, overall weight: 345 kg, input voltage: 380 V, space requirement width: 750 mm, space requirement length: 1,320 mm, space requirement height: 1,905 mm, Spänex mobile extraction unit SMU-R15 Year of manufacture: 2020, unused, 2.2 kW 140 mm Ø extraction nozzle, 1,500 m³/h air flow 2,100 Pa negative pressure, 65 dB, H3 certified 165 l drum, dimensions: 1,320 mm length, 750 mm width, 1,905 mm height Weight: 345 kg Cjdpfx Ajwanf Uedvogn

Condition: used, Mobile extraction unit Spänex Mobil - 380 Volt - 0.75 kW - 120 mm Ø suction connection - 1440 m³/h air flow rate Cgsdsx E Dc Tspfx Advjn

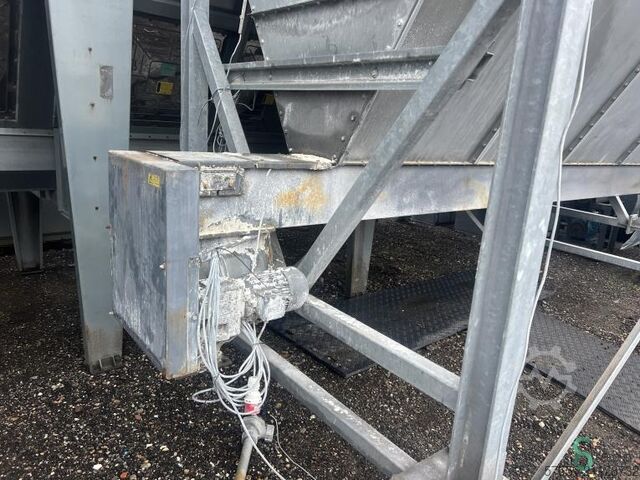

Condition: used, Year of construction: 2002, total width: 2,400 mm, total length: 12,000 mm, - Year: 2002 - Documentation available: No Csdpfxoyf Hu Rj Advogn - CE marking present: Yes - CE certificate present: No - Serial number: 560123 - Capacity [m³/h]: 16000 - Number of filter bags [pcs]: 180 - Connection diameter [mm]: 600 - Main fan [pcs]: 22 - Disassembled: Yes - Deals (actions): Super deal Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, Year of construction: 2018, Executed according to FprEN 16770 Tested according to GS-HO-07 testing principles of BGHM Offline filter cleaning with automatic fire extinguishing system The dust extractor is a suction and filter unit for commercial use, designed for installation in the workplace. The dust extractor is suitable for capturing, conveying, and filtering dry wood, paper, or plastic chips and dusts from one or several processing machines. The unit is delivered fully assembled and ready for operation. Consisting of: - Pressure-resistant and pressure surge-resistant housing (>200 mbar) - Suction nozzle with non-return valve - Antistatic filter elements - Jet-pulse cleaning - High-performance radial fan with IE3 efficiency class three-phase motor (arranged on the clean air side) - Exhaust air silencer and air outlet grille - Control unit with CEE plug (phase inverter) - Automatic start control for up to 6 machines (activation via current coils or potential-free contacts possible) - Automatic filter cleaning with runtime addition - Integrated extinguishing system - Painted RAL 9006 Compressed air, prepared on site, must be supplied to the unit for cleaning (connection via NW7 coupling / 6 bar). A water pipe, provided on site, must be connected to the unit for the fire extinguishing system (connection via ½" union fitting, min. 0.5 bar). Technical data dust extractor: - Suction nozzle diameter: 355 mm - Residual dust content: < 0.1 mg/m³ (H3) - Filter area: 26 m² - Cleaning: Jet-pulse automatic with runtime addition (offline) - Volume flow: 10,000 m³/h - Standard application design nominal volume flow: 7,130 m³/h at 20 m/s at suction nozzle - Negative pressure: 3,000 Pa at suction nozzle at nominal volume flow - Sound pressure level: 72 dB(A) at 1 m away from the unit - Motor power: 15.0 kW - Motor data: 400 V / 50 Hz / 3000 min⁻¹ / IP54 - Dimensions (L x W x H): 3,500 x 900 x 2,400 mm - Weight: 1,020 kg SPÄNEX Briquetting Press Type SHB 70 RS Price: €15,000.00 Transport pipe 110 x 3.2 mm for SHB 70 RS Machine number briquetting press: 2570/2018 Intermediate hopper 1.2 m³ for attachment to the SMU 100 dust extractor, integrated rotary discharger with gear motor, opening for connection to a briquetting press or rotary valve, galvanized finish for stepless adjustment of fan performance to actual demand via variable adjustment of fan drive speed. The frequency converter increases system effectiveness, saves energy, and reduces wear on material and machinery. - Motor power: 15 kW - Integrated PID controller - Automatic energy optimization for maximum motor efficiency, even in partial load range - Integrated manual/automatic switch-over - Startup menu for quick parameterization - Integrated RFI filter according to EN 55011 - 1 B - Synchronization with already running motor - Device design: IP 55 1 pressure gauge for controlling the frequency converter and thus the power consumption depending on the open machine dampers, including connection hose to the pipework Cedpeyfp Srofx Advsgn Dust extractor SMU control expansion kit BA, 1 pc, consisting of: - Slide valve control for up to 16 machines - 14 current coils - Multi-tone horn with beacon Rotary paddle bulk goods level indicator, 1 pc, in the intermediate hopper of the dust extractor, ATEX II ½ Ex tD A20/21 marking, to indicate maximum fill level and control a conveying system (system-specific) Storage location: Supplier

Condition: good (used), functionality: fully functional, Spänex filter house with discharge and return air system Cgsdjybblvspfx Adven Price ex location

Condition: ready for operation (used), functionality: fully functional, power: 6.5 kW (8.84 HP), SPÄNEX extraction unit with 5 chip bags, complete with extraction installation as shown in the photos, motor 6.5 kW, connection D=300 mm. Cedpfx Adox Rbuwsvjgn

Condition: good (used), Hall extraction system, chip filter system, filter system, chip extraction, wood chip extraction, Radial fan, chip extraction fan, fan, suction, chip blower -Manufacturer: Spänex, mobile filter system -Motor: Siemens 0.75 kW -Speed: 2850 rpm -Connection input: Ø 140 mm Codpfx Adorz Szasvjgn -Base: on wheels -Dimensions: 680/680/H2290 mm -Weight: 60 kg

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, filter area: 28 m², negative pressure: 2,700 Pa, total height: 1,965 mm, total width: 900 mm, total length: 3,600 mm, volume flow: 8,500 m³/h, overall weight: 900 kg, nominal flow rate: 7,130 m³/h, noise level: 70 dB, power: 11 kW (14.96 HP), rotational speed (max.): 3,000 rpm, Extraction system Manufacturer: Spänex Model: SMU Year of manufacture: 2021 Mobile wood dust extraction / chip extraction system Airflow: 8,500 m³/h Rated airflow: 7,130 m³/h Maximum sound pressure level: < 70 dB Negative pressure: 2,700 Pa Motor: 11 kW, 400 V, 50 Hz, 3,000 rpm Extraction connection on the right Suction nozzle Ø 355 mm Filter area: 28 m² 3 chip containers of 165 liters each in the extraction unit Cgjdpox Ncd Dofx Adven with 3 spare containers (total 6 containers of 165 liters each) Machine dimensions approx. 3,600 x 900 x 1,965 mm (LxWxH) Weight: 900 kg

Condition: used, used extraction unit Cgedpfsw I U Sisx Advjn mobile extraction nozzle 120 mm motor 0.75 kW 1180 Pa Availability: approx. end of May/beginning of June Stock location: Aschaffenburg
