Spiral freezer

Spooner Spiral Freezer

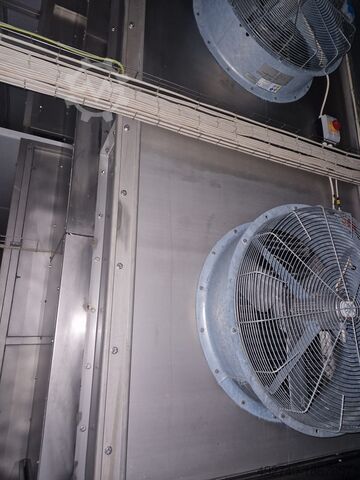

Condition: good (used), functionality: fully functional, Frigoscandia FloFreeze MX62 IQF tunnel freezer in good condition, operating on NH3 (ammonia). Suitable for rapid, individual quick freezing of products such as vegetables, berries, shrimp, and pasta. Supplied complete with infeed/outfeed systems, shaker, optional glazing conveyor, evaporators, control cabinets, Danfoss frequency converters, and Siemens TP1200 Comfort HMI (upgraded in 2020). Gijdjxz Eacspfx Aacon Products are placed on the infeed shaker (approx. 1200 mm high), where they are separated and desticked. They are then transported into the freezer via a blue plastic conveyor belt. The belt is approximately 7400 mm long and 1190 mm wide, featuring a lowering mechanism that redistributes products and removes ice. The discharge height is 912 mm. The optional Innotec Systems glazing belt can apply a protective ice coating. The MX62 is equipped with two NH3 evaporators and six centrifugal fans, each driven by an ABB M2AA160MA-2 motor (50 Hz, 13.2 kW, 2897 rpm). Cold air is blown up through the conveyor to prevent product sticking. The evaporators can be defrosted with hot air via spray nozzles. The freezer is fitted with three inspection hatches. Includes the original control cabinets with frequency converters and Siemens control system. The FloFreeze MX62 specifications: - Dimensions: 7400 x 4700 x 3000 mm (L x W x H) - Effective belt length: 7400 mm - Effective belt width: 1190 mm - Infeed height: 1200 mm - Discharge height: 912 mm Tunnel freezer capacity (examples): Product: Green peas - Capacity: 3,600 kg/h - Infeed temperature: +10°C - Discharge temperature: -18°C - Evaporator temperature: -40°C Product: Cauliflower - Capacity: 2,520 kg/h - Infeed temperature: +10°C - Discharge temperature: -18°C - Evaporator temperature: -40°C - Piece size: 25 to 40 mm Product: Tomatoes - Capacity: 1,440 kg/h - Infeed temperature: +10°C - Discharge temperature: -18°C - Evaporator temperature: -40°C - Piece size: approx. 30 mm Product: Strawberries - Capacity: 2,520 kg/h - Infeed temperature: +10°C - Discharge temperature: -18°C - Evaporator temperature: -40°C - Piece size: 25 to 35 mm Product: Potatoes - Capacity: 1,800 kg/h - Infeed temperature: +10°C - Discharge temperature: -18°C - Evaporator temperature: -40°C - Piece size: approx. 25 mm Product: Meat - Capacity: 2,340 kg/h - Infeed temperature: -3°C - Discharge temperature: -18°C - Evaporator temperature: -40°C - Piece size: cubes of 20 mm

Condition: used, functionality: fully functional, The FRIGOSCANDIA FF-2-RMA IQF (Individual Quick Freezing) tunnel freezer is a continuous freezing system designed for food products that require individualized quick freezing, such as seafood, fruit, vegetables, sliced meats or pre-cooked products. Its linear design with forced air flow guarantees homogeneous cooling, avoiding block formation and preserving product quality. Applications: Fishing industry: Shrimps, prawns, fish fillets, mollusks. Fruit and vegetable industry: Whole or chopped fruit, vegetables, pulses. Meat and meat preparations: Meatballs, chicken strips, vegetable burgers. Precooked products: Pasta, rice, ready-to-cook mixes. Godjwn Hd Sopfx Aacsin Production depends on the product, in peas for example it would give: 850 kg/h. Inlet temperature: +15ºC Outlet temperature: -18ºC Production may vary depending on the product.

Year of construction: 2025, condition: new, functionality: fully functional, machine/vehicle number: CD1500, CD-1500 VEGETABLE FRUIT DICING MACHINE This cutter is designed for slicing, dicing, and cutting fruits and vegetables like potatoes, carrots, and beets into strips, slices, or cubes. Interchangeable cutting tools allow you to select the shape and size of the cut pieces, ensuring uniform results. Additional tool sets are available for smaller or larger cuts if needed. Vegetables and fruits are fed manually Gedpfx Asvlwlcjacein into the hopper, and the cut pieces are discharged into a receiving bin.

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, Dohmeyer Cryogenic Spiral Freezer with Pre-freezing Tunnel Dohmeyer's spiral cryogenic freezers are designed for rapid freezing or chilling of food products using liquid nitrogen (LIN – Liquid Nitrogen). They are mainly used in the food industry, especially for products requiring quick freezing such as meat, seafood, pastries, ready meals, and other delicate products. Gedpfxowp Uhbj Aacsin Model: DOH-SPK-D244-W26-E21-LIN-2017 Type: Cryogenic Freezer Spiral Serial number: 201703033177 Year of manufacture: 2017 Cryogenic gas/operating pressure: LIN / 2…4 bar Compressed air/pressure range: 6…8 bar Power supply: 3x400V + N + PE, 50 Hz Weight: 16,000 kg Pre-freezing tunnel/cryogenic tunnel freezer Brand: ENT Edelstahl- und Nahrungsmitteltechnik Type: CFP 600 Serial number: 03 133/2 Year of manufacture: 2017

Condition: like new (used), Year of construction: 2009, total length: 5,800 mm, total width: 2,500 mm, total height: 2,700 mm, product height (max.): 60 mm, YOM: 2009 Model Number: 16-18-135 Belt Width:410mm No of Tiers: 18 Tier Pitch:135mm Max Product Height: 60mm 67mm gap Effective Belt Length: 150m Belt Type: 410mm wide plastic belt Max Installed Power: 6 Kw FootPrint Size: 2500mm W 5800mm L Gijdpfx Aowya I Ioacsn

Condition: like new (used), Type: TREIF DERBY 100 - CE - 2720 Loading section (LxWxH): 400 x 97 x 97 mm Sickle knife: flat Cutting length: 0.5 – 32 mm Saw blades 1 set 15 x 15 mm Machine dimensions in mm: Width: 850 Length: 1400 Height: 1100 Installed power: 1.2 kW Electric supply: 400 V, 50 Hz Giedpow Hqa Ujfx Aacjn Weight: 265 kg

Condition: excellent (used), Frigo GYRoCOMPACT 600 Classic spiral freezer, 34 tiers. Had only run for 14,000 hours when the factory closed. Beautiful condition. North South configuration. 34 tiers, 80mm tier height so perfect for burgers, sausages, chicken nuggets, fish fingers, spring rolls, hash browns etc. Gijdpfx Ajwztmaoacjn

Condition: used, Year of construction: 2009, functionality: fully functional, total length: 7,700 mm, total width: 5,300 mm, total height: 6,000 mm, warranty duration: 3 months, overall weight: 10,000 kg, input voltage: 415 V, type of input current: three-phase, power: 12 kW (16.32 HP), year of last overhaul: 2025, control cabinet height: 1,800 mm, control cabinet width: 1,200 mm, control cabinet length: 350 mm, product height (max.): 97 mm, conveyor belt width: 630 mm, temperature: -35 °C, cooling capacity: 300 kW (407.89 HP), Equipment: documentation/manual, 2No. Heinen Spiral freezers. Used to freeze ready meals from +7°C to 18°C Approximately 2500Kg per hour Max product gap - 97mm Belt width - 630mm Belt type - Omniflex No. of tiers - 32 per spiral Gsdowt Rdmspfx Aacjin Approx. dimensions - 7.7m (L) x 5.3m (W) x 6m (H) Photos & full specification to follow. Also available 1No. Complete ammonia plant with 2No. Sabroe compressors. Will sell separately.

Condition: used, Plant from spiral freezer. Gsdpfx Asvvm Afeacsin

Condition: excellent (used), Year of construction: 2010, Advanced Optifreeze Spiral Freezing Tunnel/Spiral Freezer Manufacturer: Advanced Model: Optifreeze Year of manufacture: 2010 Gisdpox Timmjfx Aacjn Voltage: 400V 80A Belt: stainless steel mesh Belt width: 1300 mm Overall dimensions: 8700 × 2500 × 3200 mm Control cabinet: incomplete The Advanced Optifreeze spiral freezing tunnel is an industrial machine designed for quick and efficient freezing of food products. The spiral design allows for maximum space usage while maintaining a high freezing performance. The tunnel is equipped with a 1300 mm wide stainless steel mesh conveyor belt, enabling continuous freezing of various products such as meat, poultry, fish, bakery goods, or ready meals.
