High-bay warehouse

SSI Schäfer Rundrohrhängebahn

Static Garment Overhead System, Round Tube Overhead Conveyor, Meiko, approx. 5,000 m static crane rails, approx. 3,600 m trolley tracks, approx. 1,200 trolleys, 3 levels, incl. 2,852 m² mezzanine floor area, total area approx. 8,556 m² - used - :

Net price ex-site: only €149,500 (net) including dismantling, packing, and loading

Manufacturer: Meiko (SSI Schäfer)
Technical support available from, e.g., BKLS Maschinenbau GmbH & Co. KG
Type: Round Tube Overhead Conveyor
Year of construction: 2005

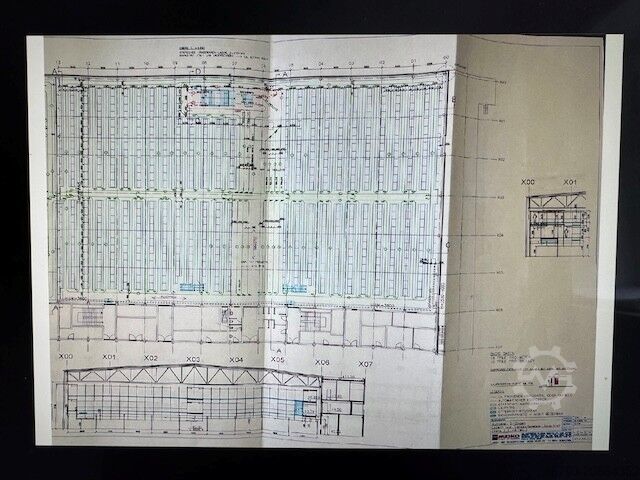

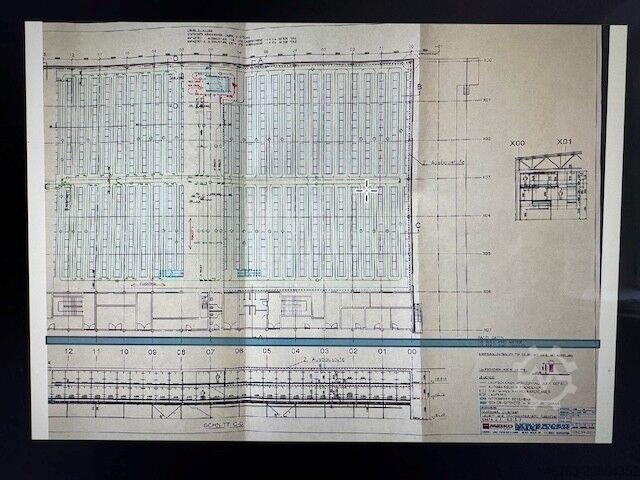

Base area: approx. 2,852 m² (L = approx. 64.7 m x W = approx. 44.1 m)
Total height: approx. 7.10 m
Incl. incline conveyor
Incl. 2 telescopic conveyors for easy loading and unloading of hanging textiles

More detailed information available upon request!

Pos. 1
LEVEL 0 (+0.000)
1,293 m horizontal running rail

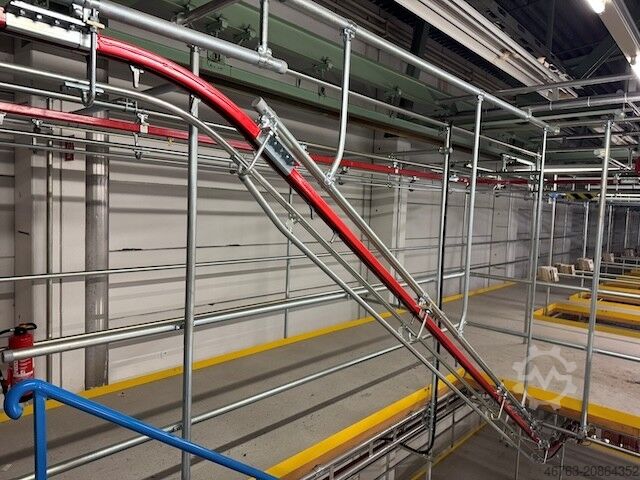

52 m sloped running rail
52 m derailment protection for running rail

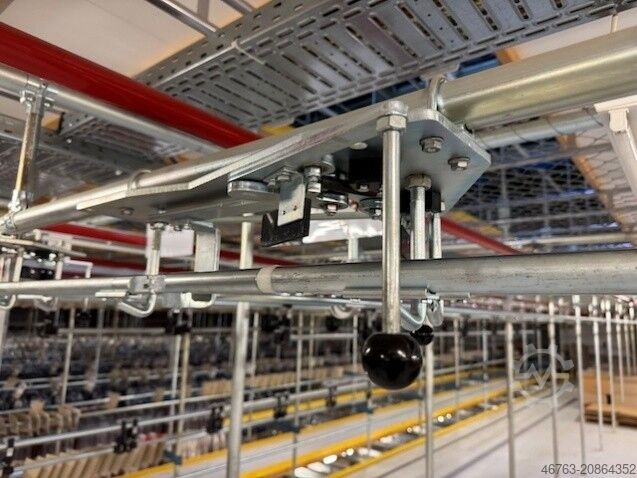

38 pcs. swing switches
2 pcs. spring switches
Etc.

Pos. 2
LEVEL 1 (height +3.790 top edge of floor)
472 m horizontal running rail
30 m sloped running rail
970 m running rail between storage areas
60 m derailment protection for running rail
48 pcs. swing switches
57 pcs. ball joint switches, complete, 2-way
2 pcs. ball joint switches, complete, 3-way
17 pcs. catch switches
3 pcs. HD manual stop
273 m fixed single-sided storage rail, double-deck
3,228 m fixed double storage rail, double-deck
Etc.

Pos. 3
LEVEL 2 (height +6.815 m top edge of floor), 1st construction phase
366 m horizontal running rail
22 m sloped running rail
398 m running rail between storage areas
38 m derailment protection for running rail
24 pcs. swing switches
31 pcs. ball joint switches, complete, 2-way
1 pc. ball joint switch, complete, 3-way
12 pcs. catch switches
3 pcs. HD manual stop
147 m fixed single-sided storage rail, double-deck
1,344 m fixed double storage rail, double-deck
1,170 m double pipe construction, galvanised (struct.), 2 x Ø 5/4", H = 150 mm

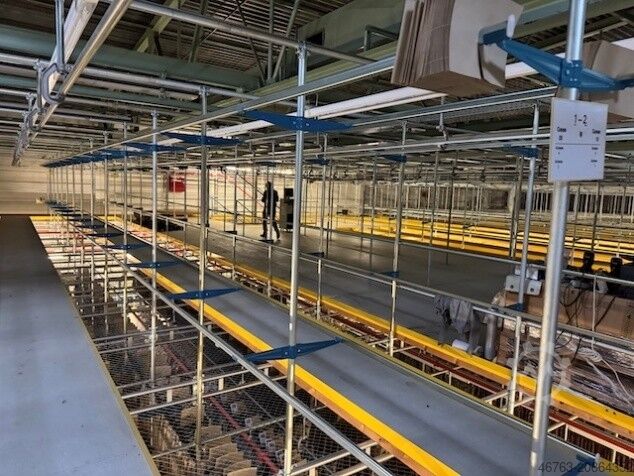

814 m² intermediate mezzanine
Etc.
Cpjdpsx R Dnaofx Ah Sot

Pos. 4 VERTICAL CONVEYING, LEVEL 0 TO LEVEL 2
1 pc. chain conveyor M 1, total length 112 m, consisting of:
1 pc. drive incl. maintenance switch, V = 12.5 m/min
1 pc. tensioning station
112 m conveyor chain incl. carrier, pitch 830 mm
1 pc. service station, L = 0.75 m
2 pcs. separable conveyor profile, L = 1.0 m
85 m straight conveyor profile
6 pcs. horizontal curve 180°, r = 600 mm
2 pcs. horizontal curve 90°, r = 600 mm
2 pcs. horizontal curve 45°, r = 600 mm
4 pcs. vertical curve UP 30°, r = 900 mm
4 pcs. vertical curve DOWN 30°, r = 900 mm
5 pcs. vertical curve UP 15°, r = 900 mm
5 pcs. vertical curve DOWN 15°, r = 900 mm
1 pc. cut-out for tensioning station
40 m derailment protection for running rail

Pos. 5 TROLLEYS

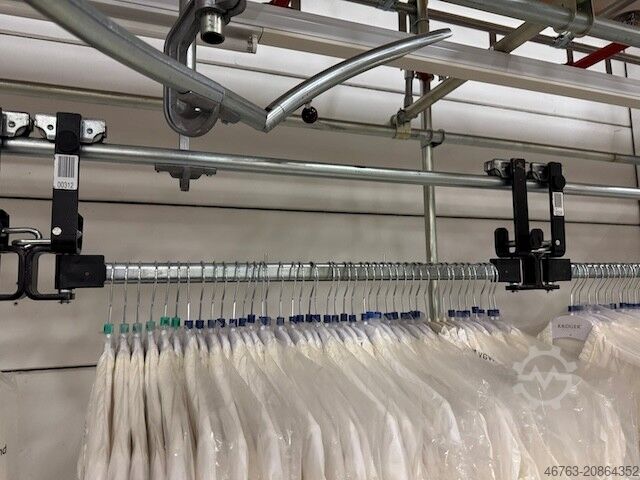

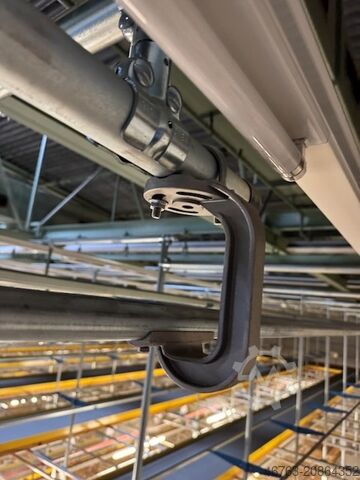

Approx. 1,200 double roller trolleys, type 53.083, with coding and coupling, loading capacity = 660 mm

Pos. 6 TROLLEY CARS
10 pcs. empty trolley transport carts

Pos. 7 CONTROL SYSTEM FOR CONVEYORS
Etc.

Pos. 8

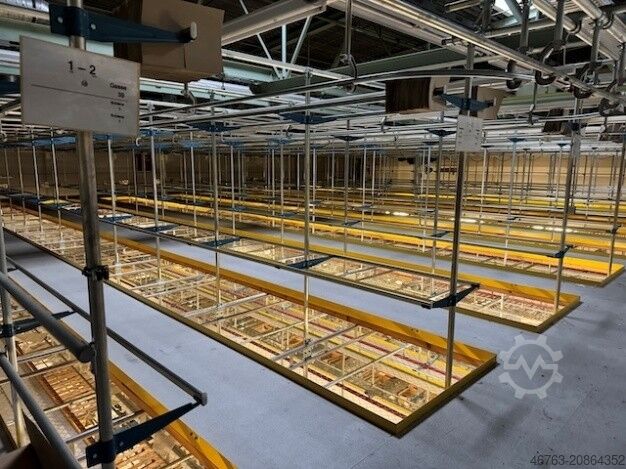

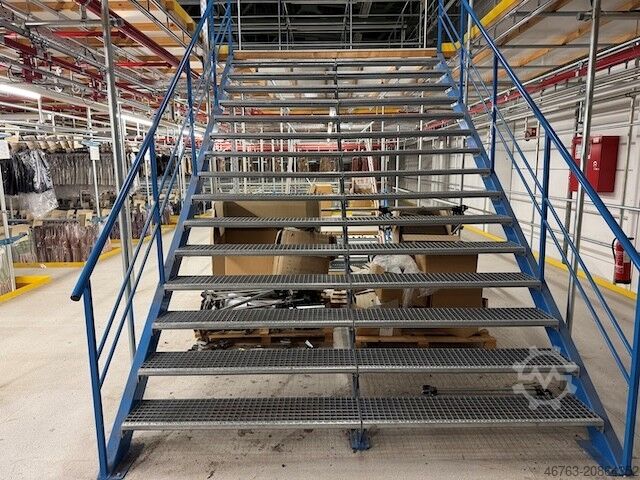

2,852 m² STEEL MEZZANINE
Steel mezzanine according to DIN 17100 and DIN 18800
- Column grid approx. 4,970 x 4,900 mm, L = approx. 64.7 m; W = approx. 44.1 m; H = 3.10 m
- Surface treatment: sandblasted, primed, and painted
Color shade according to RAL, e.g., Crenteyreiss RAL 9001
- Anchoring: Column with base plate anchored to the floor
Technical specifications:
Load capacity of walkable surface 100 or 250 kp/m²
Running rail load 60 kp/m
Storage rail load 75 kp/m
Building services 15 kp/m²
Inspection is expressly recommended!
Condition: good to very good
Available: approx. Q2 2026
Loca
