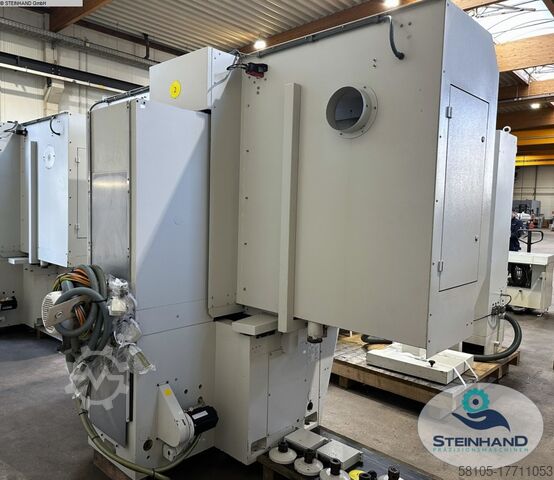

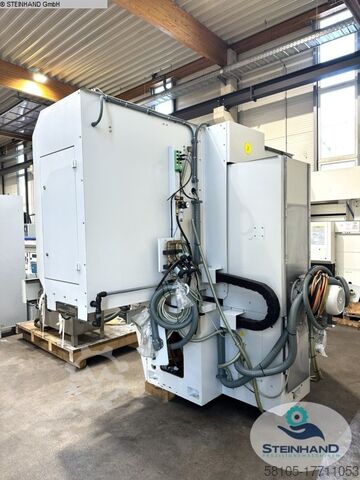

Surface Grinding Machine

STÖCKEL FX 6030 ST-2

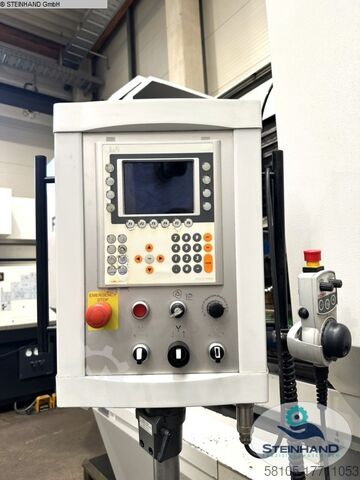

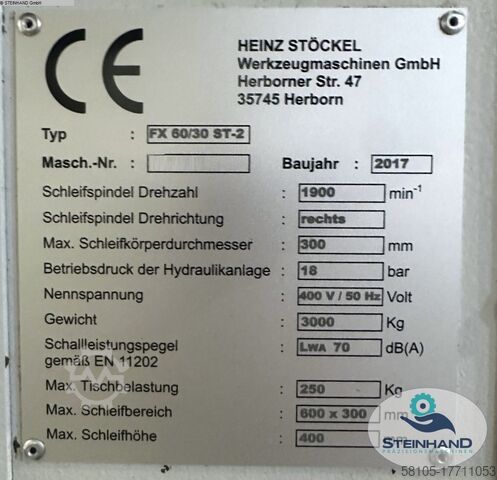

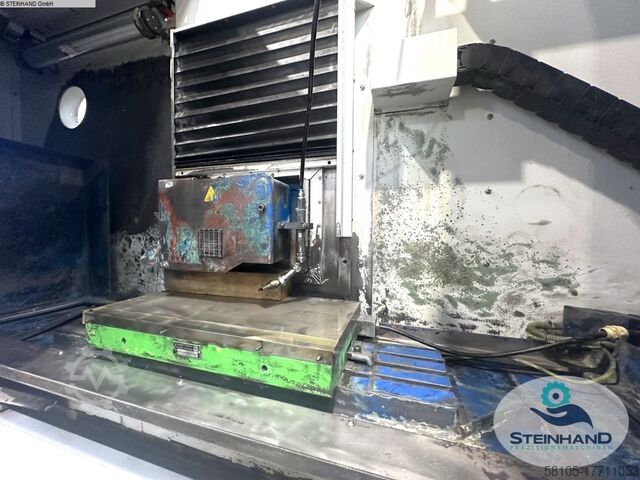

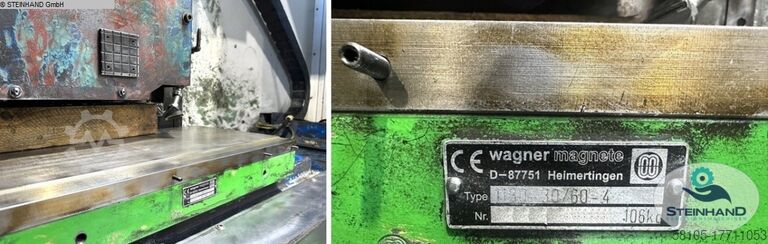

Condition: like new (used), Year of construction: 2018, Stöckel FX 60/30 ST 2 Stöckel FX 60/30 ST 2 Surface Grinding Machine with STÖCKEL ST-2 Control, Year of Manufacture 2018, in Excellent Original Condition The machine comes from the training workshop of a renowned German mechanical engineering company. Technical Data: Year of manufacture: 2018 Power supply: 3/N/PE Operating voltage: 400 V Control voltage: 230 V/24 V DC/130 V DC Frequency: 50 Hz Connected load: 14 kW / 21.5 A Main fuse: 32 A Max. grinding area: 630 x 300 mm Standard magnetic chuck dimensions: 600 x 250 mm Max. table longitudinal travel: 680 mm Max. cross travel: 305 mm Max. distance from table to spindle center: 650 mm Max. table load: 400 kg Table speed: 2 – 30 m/min Rapid traverse cross movement: 1.3 m/min Automatic cross feed: 0.3 – 40 mm (intermittent, optionally continuous) Rapid traverse vertical movement: 600 mm/min Grinding wheel (standard: outer x width x bore): 300 x 50 x 127 mm Rib width: max. 60 mm Grinding wheel motor rating: 5.5 kW Hydraulic pump power rating: 2.2 kW Cross travel power rating: 0.35 kW Vertical rapid traverse power rating: 0.75 kW Total connected power: 12 kW Total weight of the machine: 3600 kg Operating noise level: 80dB(A) according to EN 31201 Hydraulic oil capacity: 125 l Coolant capacity: 90 l Accessories and Equipment: Chodpowz Imhefx Abwec - 1 piece coolant unit - Electronic handwheel - Extraction unit - Operating manual, electrical schematics - Machine mounting pads - Grinding wheel About the Machine: We are offering a Stöckel FX 60/30 ST 2 surface grinding machine with automatic cycle, year 2018, in very good condition. The machine is, of course, fully operational. All slides move very smoothly and uniformly. Even at high speeds, the Stöckel runs very quietly. This newer generation of grinding machines is extremely user-friendly and is capable of producing surfaces in the low Rz range. Take advantage of the opportunity to view this machine under power on-site and see its condition for yourself. About the Controls: The STÖCKEL ST-2 control system provides all the functions needed for economical surface and plunge grinding. Inputs are made using softkeys on the control panel, while all information is presented graphically in color on the display. The control is intuitively designed and easy to learn in a short time. No ISO programming skills are required. The control is suitable for both automatic grinding cycles and for manual adjustment via electronic handwheel. The operator can intervene in an ongoing grinding cycle at any time, changing parameters or taking over feed via the handwheel. The control features the following: • Surface grinding program subdivided into rough grinding, finish grinding, and spark-out • Plunge grinding program subdivided into rough grinding, finish grinding, and spark-out • Multiple-plunge program (for rapid material removal) • Automatic dressing: A regular automatic dressing cycle can be triggered during grinding based on various criteria such as "grinding dimension" or "number of strokes." Dressing before finish grinding is also possible. • When the "speed control" option is selected, different cutting speeds can be set for roughing, finishing, and dressing operations.
