Machining center

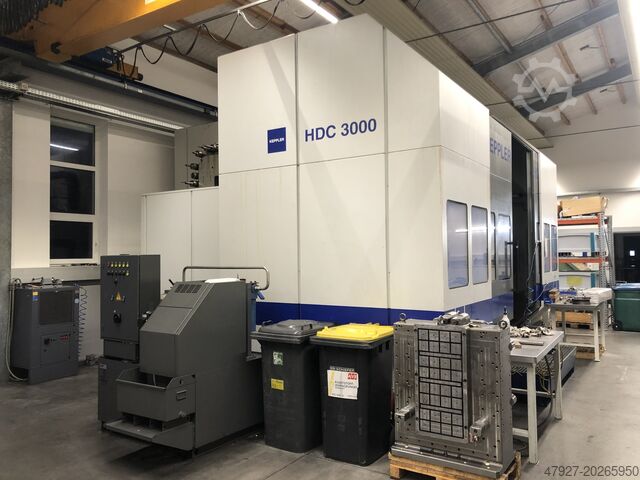

STADLER KEPPLER HDC3000

Condition: excellent (used), Year of construction: 2015, - Travel X=3000 mm, Y=1500 mm, Z=1400 mm - Heidenhain iTNC 530 with handwheel HR 410 Fedpfx Aexmr Uwofpsgh - NC rotary table for multi-sided machining 1600 mm x 1250 mm - 1-axis NC universal drilling and milling head, for simultaneous and positioning positioning operation (A-axis, 45°-axis) - Motor spindle 7,000 rpm max. SK 50, 530 Nm spindle torque - Tool changing system SK 50 / 40 places for 400 mm long tools tools - Chip screws in X-axis, optimum chip transport - Chip conveyor (hinged belt conveyor) for transverse conveying, Fabr. Knoll, front ejection - Coolant supply 950 l, made by Knoll - Outside/inside air at the spindle - IKZ 60 bar for deep hole machining - Operating mode 4 - Full enclosure with safety glass panes with sliding doors, optimized for crane loading - Split sliding doors on the front side - Split sliding doors on the operator side - RMP 60 radio measuring probe - incl. washing gun - Short delivery time by arrangement, subject to prior sale - Used machine - Z-axis KGT renewed in September 2023 incl. bearings - Optional fixators and tie rods - optional commissioning/installation - optional transportation

Condition: new, Year of construction: 2024, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 1,400 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, New machine with completion date 02/2024 HDC3000 with 6 axes - travel X=3000 mm, Y=1500 mm, Z=1400 mm - Heidenhain iTNC 640 with handwheel - NC rotary table for 5-sided machining 1250 mm x 1600 mm - 2-axis NC universal drilling and milling head, fully simultaneous and positioning operation - Spindle 10,000 rpm HSK100, S1=220 Nm spindle torque - HSK100 tool changing system / 60 places - 800 mm long tools - Chip conveyor - optimized for 5-sided machining incl. deep-hole drilling - Coolant supply - Internal / external air blow-off device Fgsdpfx Afoxbpuwopeh - IKZ 60 bar for deep hole machining - Full enclosure - Large interference circle 2300 mm - incl. fixators - incl. washing gun - incl. warranty - Short delivery time, subject to prior sale

Condition: reconditioned (used), Year of construction: 2010, • Traveling distances X=3100 mm, Y=1950 mm, Z=1390 mm • Heidenhain iTNC 530 with handwheel HR 410 • Machine table for multi side working 3000 mm x 1600 mm • 2-axis NC-universal milling head, for simultaneous and positioning working • Spindel 10.000 U/min HSK 100, 130 Nm Spindle torque Fgedpfxjxbpuko Afpsh • Tool change system HSK 100 / 40 places for 750 mm long tools • Chip conveyor (screw type) in X-axis, for transport into • Chip conveyor scraper belt type (traverse conveyor), Fabr. Knoll • Coolant container 900 l, Fabr. Knoll • Outside air at spindle • IKZ 60 bar for deep hole drilling function • Covering with safety glass pane, open at the top for loading by crane • 2 part sliding doors at the operator side • 2 part sliding doors at the front side, for easy loading • Radio-controlled measuring probe RMP 60 • incl. washing gun • incl. podiums at the front side and operator side • complete factory overhauled and painted new • short time delivery after arrangement • used machine • Y-axis ball screw in September 2021 incl. bearings renewed • X-axis new linear guiding system, July 2023 changed, renewed • Spindle overhauled at Mai 2023 (clamping system new, clamping cartridge new, rotation unit new, general tests) (at 23105 spindle hours)) • can be visited under power at 72793 Pfullingen • optional fixators • optional installation at customers plant • optional transport • 23122 spindle hours in total • 53991 machine hours in total • Year of construction 2010 Subject to prior sale
