Bench drill

STANKO

Condition: excellent (used), Length: 500mm Gbodpjyt Sp Aofx Aafoi Diameter: 200mm

Year of construction: 2013, condition: ready for operation (used), Turning length: 6000mm, orbital diameter over bed/support: 820mm/515mm, spindle bore: 128mm, speed: 1600rpm, spindle power: 46kW, center height: 400mm, bed width: 560mm, quill diameter: 125mm, quill stroke: 280mm, connected load: 62kW. Machine dimensions X/Y/Z: approx. 6500mm/2500mm/2300mm, control: Heidenhain, operating hours: approx. 9000h. Including accessories such as a steady rest. Documentation available. On-site inspection is possible. Gedpfx Asvwcwueafobi

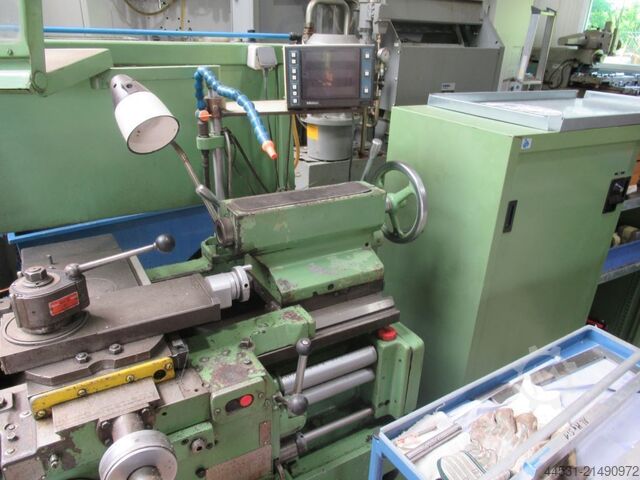

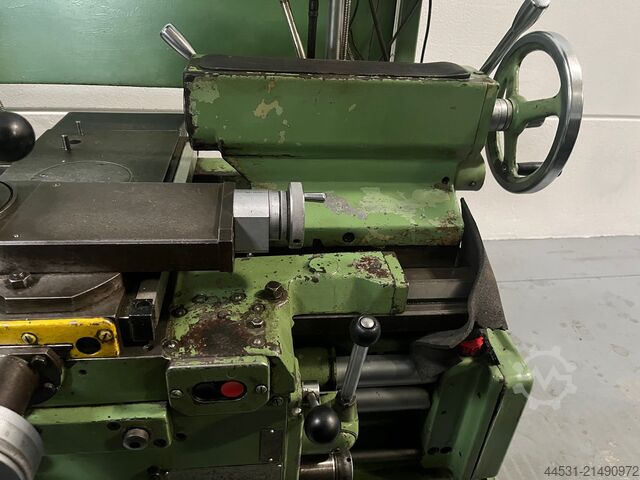

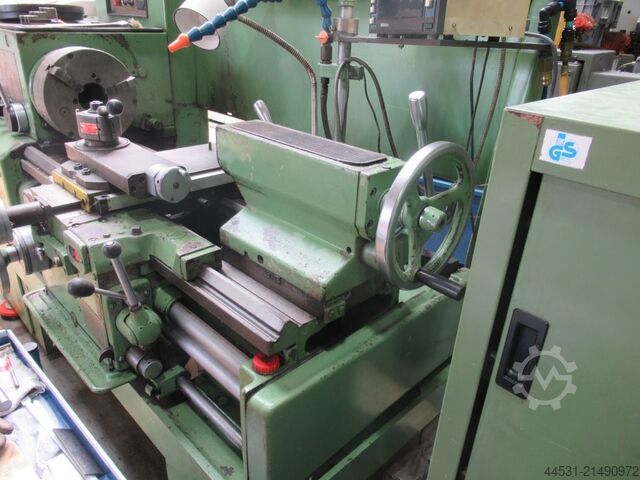

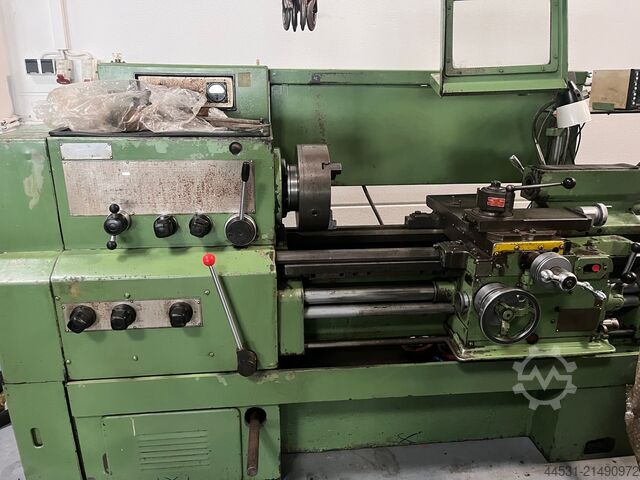

Condition: ready for operation (used), Year of construction: 1977, Immediately available from insolvency: L & Z lathe Stanko Type 16 K 20 Year of manufacture 1977 Retrofit and digital readout in 2012 Centre height 200 mm Gbsdpfx Aoyt Nk Rjafoi Swing over bed 400 mm Swing over cross-slide 220 mm Spindle bore 55 mm Spindle speeds 12.5 – 1600 rpm Drive power 7.5 kW Chuck Tailstock Coolant system Multifix quick-change toolpost with inserts Digital readout Steady rest Weight 2,700 kg Price EUR 2,000—plus VAT ex location

Condition: good (used), Year of construction: 1984, functionality: fully functional, Table size 2000 x 650 mm Table longitudinal travel 2000 mm Stone transverse travel 650 mm Max. working height 550 mm Stone scraper integrated in the head Machine weight approx. 15,500 kg Dimensions (L x W x H) = 6000 x 2400 x 2900 mm Accessories - Magnetic table - Built-in dresser unit - Wheel with flange - Hydraulic unit - Separate control cabinet Gbjdpfxoyr Iqmj Aafsi Good condition. The machine will be sold due to company liquidation.

Condition: ready for operation (used), travel distance X-axis: 18,000 mm, travel distance Y-axis: 3,600 mm, travel distance Z-axis: 700 mm, spindle speed (max.): 1,600 rpm, spindle diameter: 160 mm, CNC FLOOR TYPE BORING MACHINE MAKE PAMA MODEL SPEEDRAM 2 X AXIS: 18000MM Y AXIS: 3600MM Z AXIS: 700MM Gsdpsv Rv N Rofx Aafsbi V AXIS: 800MM (RAM TRAVEL) Z+V AXIS: 1500MM SPINDLE DIA: 160MM,ISO50 SPINDLE MOROR:65KW SPINDLE SPEED: 1600RPM ATC: 60POSITIONS MILLING HEAD: MANUEL MILLING HEAD: AUTOMATIC CNC ECS FLOOR PLATES 4NOS(4000X1500) 1NO(3000X2000) ROTRY TABLE: NOT AVAILABLE

Condition: used, Year of construction: 1975, STANKO - 7B56 - 1975 - used condition as shown on photos Godpfxoyrq Iuj Aafjbi - under power, can be tested

Condition: used, Year of construction: 1987, faceplate diameter 2200 mm swing diameter 2500 mm turning height 1600 mm Control Siemens total power requirement 100 kW weight of the machine ca. 35 t vertical lathe with two RAM; faceplate Ø 2000 mm; SPS supported control for storable cycles; RAM/channel 1 two Capto recordings C8 with Internal tool cooling, RAM/channel 2, two Capto mounts C8 with internal tool cooling; Chip conveyor / spindle Z-axis as new The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. Gedpfx Ajyqty Deafobi About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: new, Delivery program Eifco hobbing machines Gedsu Egdlopfx Aafobi

Condition: repair required (used), STANKO 2 A 554 The machine is in perfect working condition except for the clamping of the boom lifting device and is currently still in operation. The clamping would have to be reassembled and readjusted, all parts are present. For safety reasons, the boom is secured with a tensioning strap, the clamp for the lift is in clamped condition. Technical data: - Drilling capacity 60 mm - Projection 1600 mm - Drill spindle holder MK 5 - Drill spindle stroke 390 mm - Spindle speed, 20 steps 20 - 2000 rpm - Clockwise and counter-clockwise rotation - Feed rate, 12 steps 0.056 - 2.5 mm/rev Gbsdpfx Aajtpu Tqjfoi - Drive 400 V / 12.8 kW - Clamping of the arm and drilling unit electromechanical - Distance machined machine bed - drilling quill - min. approx. 900 mm - max. approx. 1600 mm - usable machine bed with 4 T-slots 950 x 1700 mm - Coolant device - Cube table - Space requirement approx. W 2600 x H 3000 x D 1000 mm - Weight approx. 4500 kg

Condition: used, functionality: fully functional, total height: 1,715 mm, total width: 735 mm, total length: 1,475 mm, power: 3.3 kW (4.49 HP), overall weight: 3,300 kg, Forging hammer is in excellent condition and could be checked under power at any time. Nominal mass of drop parts, kg 75 Impact energy, kj 1,4 Max number of blows per minute 210 Working zone daylight, mm 300 Die impression size, mm 130 x 63 Gedpfxjxwuv Ej Aafsbi Motor capacity, kW 3,3 Hammer dimensions, mm 1475 x 735 x 1715 Hammer weight with anvil block, kg 3300

Condition: good (used), centerless grinding machine Gjdpetrguvefx Aafebi

Condition: used, Technical details: bore capacity in steel (diameter): 23 mm throat: 250 mm bore stroke: 150 mm speeds:: 180-2000 U/min spindle taper: MK2 total power requirement: 1,5-2,2 kW Gbodpoynhmmofx Aafoi weight of the machine ca.: 500 kg

Condition: used, Slotting head for milling machine, milling head, CCCP / UDSSR STANKO type 1502 No: 200 Year of manufacture 1974 Stroke size: max. 60 mm Stroke rate: approx. 200 - 500 strokes/min. Tool holder: 12 x 17 mm with clamping plate Gbedpfsd Dk A Aox Aafsi Hole spacing machine flange plate: 245 x 185 mm Mounting hole: Ø 17 mm Centering diameter on the machine flange plate: 190 mm - Stroke size adjustable via eccentric adjustment - The drive is like the normal vertical head from the machine gearbox - Drive via driver, centric in the centering diameter - Degree scaling on the flange plate +/- 45° steplessly pivotable - This grooving head is flange-mounted in place of the normal vertical milling head (mounting in place of the vertical milling head, milling head) Weight: 42 kg good condition Slotting head bearing number 58166 and vertical milling head bearing number 58164 from identical STANKO milling machine.

Condition: used, Year of construction: 1996, functionality: fully functional, travel distance X-axis: 10,000 mm, travel distance Y-axis: 2,600 mm, travel distance Z-axis: 700 mm, Manufacturer: PAMA Model:SPEEDRAM 1 CNC Year1996 Spindle:140mm. Tranversal travel:10.000 mm. Vertical travel:2.600 mm. RAM travel:600 mm. Ram Size: 360x320 Spindle travel:700 mm. Spindle taper:ISO 50 Spindle motor power:50 Kw. Spindle speeds: 6 ÷ 2000 Rpm. Cnc:CNC Selca 3045 ATC: 60nos. Total weight:65 Tons. Features and Accessories Complete with: - n. 1 automatic universal milling head Gbedpfxewzh Apo Aafoi - n. 1 Floor plate 6000x2500x300mm -n. 1 Floor plate 4500x2000x300mm - Rotry Table 2000x1600 with long travel 2000mm -Loading capacity on table:15ton - levelling shoes

Condition: ready for operation (used), Year of construction: 1978, Drilling capacity Ø 50 mm, table size 1000x1640 mm, spindle nose MT-5, quill stroke 400 mm, quill Ø 80 mm, outreach 1755 mm, nose to table 450-1600 mm, 21 speed 20-2000 rpm., motor 4 KW, 12 feeds, dimensions 2700x1100x3430 mm, weight ca. 4800 kg Godpfed Sw N Ajx Aafobi
