Swiss CNC lathe

Star SR32J

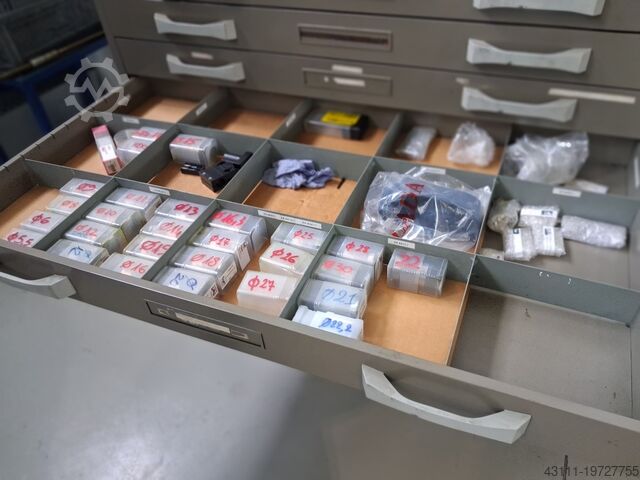

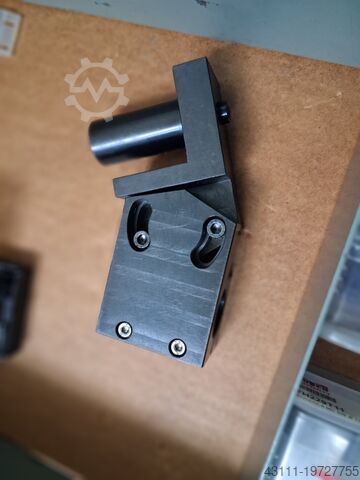

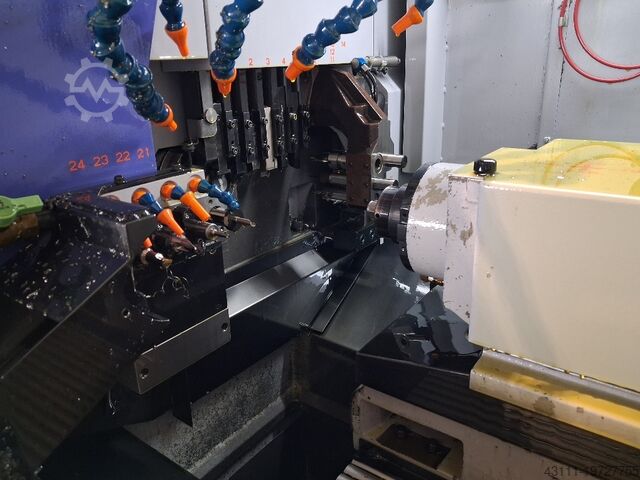

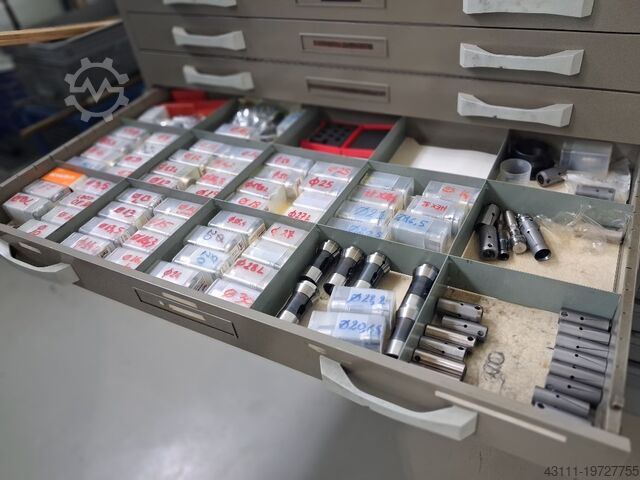

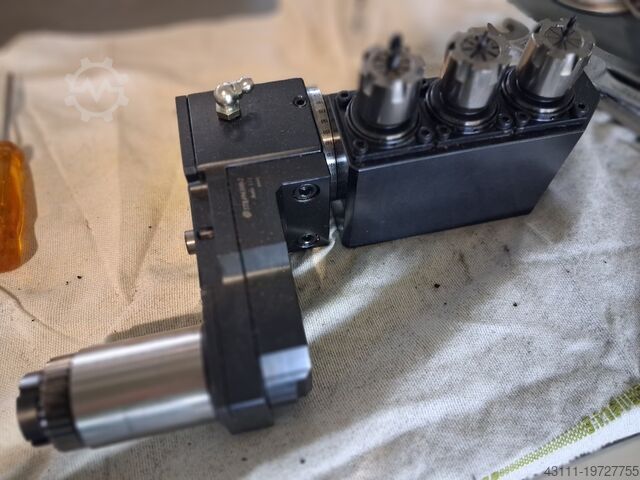

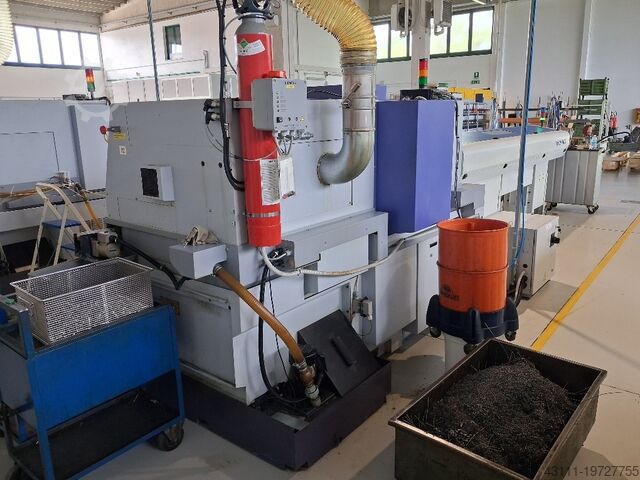

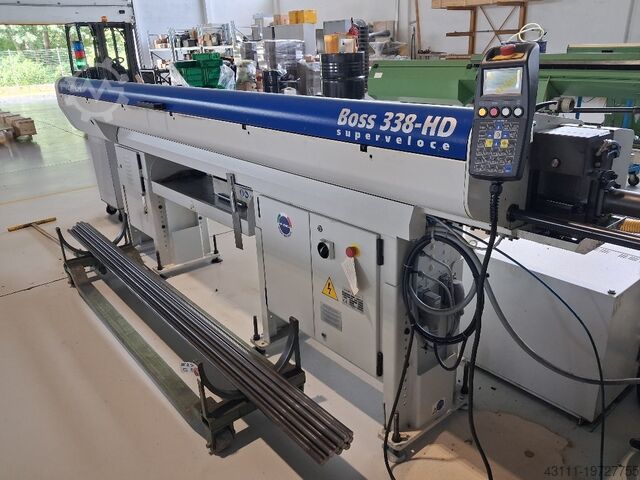

Condition: used, Year of construction: 2015, Star SR-32J Type N Swiss Type Automatic Lathe. Serial No. 3098 (2015), FMB Turbo 3-36 Bar Loader – Serial No. 55-262949 R 1307678, Absolent Amist10 Filtration Unit, Serial No. 11001282, GP20-2000-6 High Pressure Unit, Serial No. 627, LNS Turbo MH500 Swarf Conveyor, Serial No. 14570000256, Machine Manuals, Firetrace Automatic Fire Suppression System, Bar Loader channel – 36mm, Tooling Holders, etc included: Main Spindle 301-24 3-off Drill Sleeves ER16 Iedpfjxug E Hsx Ad Djtp 671-21 1-off Drill Sleeve ER20 331-50 2-off Cross Driven Tools ER16 (cartridge type) 671-57 3-off Cross Driven Tools ER16 (fixed) 673-53 Main Spindle Collet sleeve MR32 (F37/740) Sub Spindle 571-61 2-off Mill/Drill Driven Tools ER16 671-22 4-off Drill Sleeves ER20 673-73 Sub Spindle Collet Sleeve MR32 (F37/740) L14.022.025 Graf D Style Turning Holder R16.022.025 Graf Screw cutting Holder

Condition: ready for operation (used), Year of construction: 2007, General Data Measurements width 1275 mm Measurements depth 2711 mm Measurements height 1705mm Main Drive Spindle speed range 7000 Spindle motor power 5.5kw Stroke 310 mm Number of axis 3 Movement X-Axis Rapid Traverse 24m/min Y-Axis Rapid Traverse 24m/min Z-Axis Rapid Traverse 24m/min Additional Equipment With FMB bar loader Isdpfxexd H U Ho Ad Djtp The Star SR32J is sold together with an FMB trubo 3-36 stage loader. The bar loader was built in 2008, and the machine itself is from 2007. The machine features a JBS guide bushing system for increased precision thanks to flexible guide bushings. It also features a Star ER 16/ER11 front-end drilling unit with three spindles for front and rear machining. This 3-axis Star SR-32J swiss type turning machine was manufactured in 2007. It features a FANUC control system, FMB bar loader, and a maximum machining diameter of 32mm. The machine offers a rapid feed rate of 24m/min and a main spindle speed up to 7,000min. Ideal for high precision turning, it includes a coolant tank capacity of 174 liters. Contact us for more information about this machine. Application Types Turning

Condition: good (used), Year of construction: 2007, Control: FANUC 18i-TB Max. bar diameter: 32 mm Max. spindle head stroke: 310 mm Spindle speed: 350 - 7,000 rpm Max. bar diameter on sub-spindle: 32 mm Max. sub-spindle speed: 350 - 7,000 rpm Number of usable tools: 21 Turning tools in multi-tool holder: 6 Driven tools for cross machining: 3 Front drilling tools: 4 Rear drilling tools: 4 Back machining: 4 Itodpfsxcx D Djx Ad Dop Driven tool speed: 5,000 rpm Bar feeder: FMB turbo 3-36

Condition: used, Year of construction: 2007, functionality: fully functional, machine/vehicle number: 0506, Control: FANUC 18i-TB Max. bar diameter: 32 mm Max. spindle head stroke: 310 mm Itsdjxgnvdjpfx Ad Dep Spindle speed: 350 - 7,000 rpm Max. bar diameter on sub-spindle: 32 mm Max. sub-spindle speed: 350 - 7,000 rpm Number of usable tools: 21 Turning tools in multi-tool holder: 6 Driven tools for cross machining: 3 Front drilling tools: 4 Rear drilling tools: 4 Back machining: 4 Driven tool speed: 5,000 rpm Bar feeder: FMB turbo 3-36

Condition: excellent (used), Year of construction: 2018, Control Fanuc 32I-B, bar capacity 32mm, maximum cutting diameter 32mm, maximum cutting length 310mm, Iodpow Rct Hefx Ad Detp maximum drilling diameter 13mm, maximum tapping capacity M12, milling speed 5,000rpm, spindle speed 7,000rpm, Sub spindle C axis 0.001 degree, FMB Turbo 3-36/3200 barfeed, number of controlled axis Z, ZB, X, XB, C1, C2, Y. swarf conveyor,

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 32 [mm] - Travel : 310 [mm] - Spindle speeds : 7.000 [rpm] - Spindle power : 7,5 [kW] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Max. bar diameter : 32 [mm] - Spindle speeds : 7.000 [rpm] - Spindle power : 3,7 [kW] - C axis indexing precision : 0,001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 11 - Number of motorized positions : 5 - Live tools speed : 5.000 [rpm] - Live tools power : 1,2 [kW] END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 6,2 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.711 x 1.275 [mm] - Machine height : 1.705 [mm] - Machine weight : 3.100 [kg] MACHINE HOURS - Number of working hours : 35.367 [h] EQUIPMENT - CNC : Fanuc 18i-TB - 3 colors status lamp - Coolant tank * with high-pressure pump - Bar loader : FMB Turbo 3-36/3200/A (2008)) - Ejection of workpiece - Parts catcher - Parts conveying strip - Chips conveyor - Fire extinguisher * Isdpeuhazajfx Ad Dstp NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
