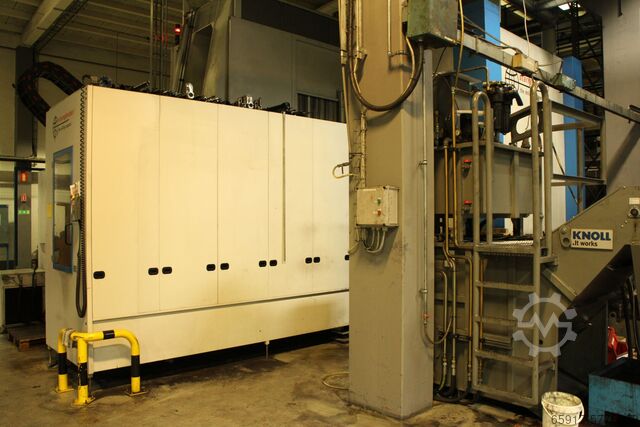

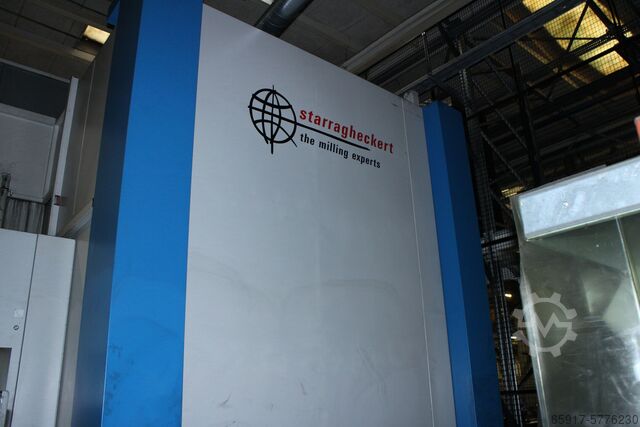

Horizontal Machining Centre

STARRAG HECKERT HEC 1600 Athletic

Year of construction: 2007, condition: ready for operation (used), Horizontal Machining Centre with boring spindle Kjdsguk Nhspfx Akwjnb Starrag Heckert Type: HEC 1600 Athletic (2) Pallet size: 1250 x 1600 mm Pallet load: max. 8.000 kg Number of pallets: 25 pcs Fastems Table indexing: B-Axis 0.001° Table cross travel (X): 2.800 mm Spindle vertical travel (Y): 2.200 mm Column longitudinal travel (Z): 2.100 mm Boring spindle axial travel (W): 740 mm Feed X/Y/Z: 1 – 40.000 mm/min. Rapid X/Y/Z: 40 m/min. Rotaty table 8 rpm Max rotary diameter 3.000 mm Spindle taper: ISO 50 Spindle bearing diameter: 200 mm Spindle drive motor: 37KW Spindle speed: 20 – 2.500 rpm Boring spindle diameter: 150 mm ATC: 80 pots CNC controller Siemens Sinumerik 840D Hours: Spindle 22.200 hours Accessories Hexagon radio measuring probe Coolant unit with vacuum rotation filtration system High pressure coolant through spindle Electrical clear view window Visiport. Laser tool breakage control in working area. Cylinder path interpolation Tool and process monitoring ARTIS. Machines without Fastems = without pallet changers. - Pallet changer unit can be supplied by Starrag Heckert. Build year 2007

Condition: excellent (used), Year of construction: 2018, total length: 9,800 mm, total width: 4,000 mm, feed length X-axis: 3,500 mm, feed length Y-axis: 1,100 mm, feed length Z-axis: 1,100 mm, feed rate X-axis: 30,000 m/min, feed rate Z-axis: 5,000 m/min, table length: 3,000 mm, table load: 6,000 kg, table width: 1,200 mm, power: 22 kW (29.91 HP), Surface grinder Ziersch - Z1030 MACH-ID 9597 Make: Ziersch Type: Z1030 Control: Mitsubishi Touch Year: 2018 X - Travel: 3500mm Y - Travel: 1100mm Z - Travel: 1100mm Table Length: 3000mm Table Width: 1200mm Table load: 6000 Feed rate X-Axis: 30000mm/min. Feed rate Z-Axis: 5000mm/min. Grinding stone dimensions:500 x 100 x 203mm Power: 22kW Speeds: 3000Rpm Cooling system: yes Kodpfey En Dnex Akwjnb Feed rate Y-Axis: 3000mm/min. Length: 9800mm Width: 4000mm Height: 4500mm Weight: 27500kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Year of construction: 1990, turning diameter 2400 mm faceplate diameter 2200 mm turning height 2100 mm control SIEMENS Sinumerik 850T workpiece weight 17 t Tol measurements 32 Werkzeuge Crossbeam travel: 700mm Crossbeam support Travel from centre of rotation to the right: 700mm Crossbeam support Travel from centre of rotation to the left: 700mm Machine table drive Main drive power: 80kW Number of gearboxes: 2 Step change: 3.84 Speed range of the 1st gear stage: 2-32-139 rpm Speed range of the 2nd gear stage: 9-125-500 rpm Max. Machine table load: 6 tonnes Feed drive Cross beam support Horizontal feed speed: 0.1 - 8 m/min Cross beam support Vertical feed speed: 0.1 - 8 m/min Cross beam support Rapid traverse speed horizontal/vertical: 8 m/min Cross beam adjustment speed: 425 mm/min Tool system Kodpfjygx D Hjx Akwsnb Tool system: 180.1 Cutting force on the turning tool: 30 kN

Condition: excellent (used), Motor-driven NC rotary table Stepless rotary table (pitch 0.001°) Attached pallet station: pallet changing table (2 pallets) Manufacturer: Rückle Type: PKTF 1200 Table size: 1200 mm x 1200 mm Total height: 660 mm Centring hole: 100 H6 mm Clamping grooves: 7 pieces Slot dimension: 22 H7 mm Knsdpefk R Tdjfx Akweb Slot distance: 160 mm The displacement is measured via a ROD 250 rotary encoder. Condition: Very good (used) Optionally with machine bed (travel = 2000 mm ) About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH, is a free specialist for SHW machine tools. Our main focus lies in the field of tool milling machines. Our services include the supply of spare parts, on-site customer service, machine overhauls and control modernization. Services: - Used machines - spare parts - after-sales service - machine service - machine overhauls - control modernization

Condition: new, Year of construction: 2025, functionality: fully functional, turning height: 1,600 mm, turning diameter: 2,000 mm, CNC Vertical Turning Center Model: VTC-16/20R with Fanuc 31i-B Table Diameter: Ø1,600 mm Max. Swing Diameter: Ø2,000 mm Max. Turning Height: 1,600 mm Table Speed: Max. 250 rpm Table Load Capacity: 8,000 kg Table Indexing Speed: 720°/min Table Indexing Accuracy: 0.001° X-Axis (Ram horizontal): -100 mm to 1,170 mm Z-Axis (Ram vertical): 900 mm Drive Spindle Speed: Max. 2,000 rpm Ram Size: 240 mm x 240 mm Milling Spindle Taper: ISO 50 Tool Shank Size: 40 mm x 40 mm Crossrail (vertical travel): 250 mm x 3 stages (hydraulic) Table Drive Motor: AC 37/45 kW (continuous/30 min. duty) Milling Spindle Drive Power ISO 50: 15/18.5 kW (continuous/30 min. duty) Control System: Fanuc 31i-B Display Unit: 15-inch TFT-LCD Memory Capacity: 1 MB Automatic Tool Changer: 24 positions (for 7 turning tools + 1 cover + 16 milling tools) Standard Tool Holders: New 240 TCR-01 (2 pcs) Splash Guard: Table version (R-Type standard design) External Coolant System: 3 bar (80 l/min) Chip Conveyor: Hinged belt type Table Bearing Cooling Device 4-Jaw Independent Manual Chuck Foundation Anchor Bolts / Base Plates Maintenance Tools and Toolbox Hydraulic Power Unit Work Area Lighting Signal Lamp: 3 colors (green, red, yellow) Operating Manuals (English): 1 CD with Fanuc manuals and 3 books with mechanical/electrical manuals Knodpfx Aexp Nb Tskweb Power Supply: 220 V, 60 Hz, 3-phase Machine Color: Manufacturer standard OPTIONAL ACCESSORIES (#1) Turning Tool Holder: Type 240TCR, 4x included Rigid Tapping: 1x included OPTIONAL ACCESSORIES (#2) Automatic power-off for N.C. - on request Turning tool holder type 240TCR - on request Through-spindle coolant supply: 30 bar (pump pressure) - on request Transformer 415 V, 50 Hz, 3-phase - on request Linear scales X-, Z-axis (Fagor, Spain) - on request Workpiece measuring device - on request Tool measurement TS27R, Renishaw - on request Other information: INSTALLATION, COMMISSIONING, TEST OPERATION, AND TRAINING - not included in the price INSURANCE AND FREIGHT - not included in the price Image shows machine with pallet changer. The offered machine DOES NOT INCLUDE A PALLET CHANGER! Errors in technical data excepted. The scope of accessories is as described in the text of this article only. There is no entitlement to any other accessories, such as those shown for illustration purposes. The general terms and conditions of JS-Werkzeugmaschinen GmbH apply.

Condition: used, Year of construction: 1967, grinding length 1650 mm grinding width 700 mm workpiece height 600 mm Knedstt S Uaspfx Akwsb table surface area 1500 x 500 mm table speeds 0 - 20 m/min cross feed autom. 0 - 20 mm/Hub grinding spindle speed 2000 U/min grinding wheel diameter 300 mm total power requirement 19 kW weight of the machine ca. 5 t dimensions of machine L x W x H 5,92 x 3,12 x 2,65 m Accessories: 2 magnetic plates, each 750 x 600 mm; grinding wheel with flange, various grinding wheels and flanges separate, wet grinding attachment

Condition: reconditioned (used), functionality: fully functional, machine/vehicle number: F39033, KEKEISEN Universal Bed Milling Machine UBF 2000/13, machine no. F39033; well maintained, very good condition, mechanically partly overhauled in 2025 2-axis universal head automatically swivelling, with locking in Hirth coupling Intermediate positions adjustable in 1° steps by jog mode SK50 tool holder according to DIN 69871/872 Longitudinal travel of the table (X-axis) 2000 mm Transverse travel of the headstock (Y-axis) 1000 mm Vertical travel of the headstock (Z-axis) 1300 mm Machine table size 2200 x 960 mm, with T-slots 22 mm, spacing 140 mm Rotary table rotation 360° (stepless, with clamping) Rotary table load 5000 kg Spindle power 30 kW (100%ED), max. torque 1180 Nm Spindle speed 20 - 3800 rpm (infinitely variable in 2 ranges), with oil cooling Axis speeds 4 m/min or 10 m/min rapid traverse Knsdpfx Aoykuxhskwob CNC control Heidenhain TNC 426 CA with electric handwheel HR 330 Drive system make Baumüller Coolant system with inner cooling up to 16 bar. Air/water changeover Purolator double-switching filter with 200 litre collecting tank Tool changer for 30 tools Work area panelling all round, open at the top, with longitudinal chip conveyor Connection data 400 V; 50 Hz; approx. 55 kVA without installation elements (fixators),

Condition: used, Technical details: spindle diameter: 150 mm x-travel: 3000 mm y-travel: 2000 mm spindle stroke: 700 mm dimension of the ram: 340 x 340 mm ram stroke: 700 Kedpfsy Anpxox Akwsnb column travel: 1500 mm spindle taper ISO: 50 bore spindle turning speed range: 3,2 - 1600 U/min table surface area: 2000 x 2500 mm max. table load: 25000 kg rapid speed: 5 / 10 m/min feed speeds: 1 - 5000 mm/min total power requirement: 100 kW weight of the machine ca.: 57 t dimensions of the machine ca.: 8,4 x 6,8 x 5,9 m with CNC SIEMENS 840 D full B-axis aerostatic guideways facing head ( 3,2 - 140 rpm ) angular milling head 1000 Nm coolant attahcmnet with internal cooling supply *

Condition: excellent (used), Year of construction: 2003, travel distance X-axis: 3,500 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,400 mm, spindle speed (max.): 4,000 rpm, table width: 1,200 mm, table load: 4,000 kg, table length: 3,860 mm, mount diameter: 50 mm, total height: 3,640 mm, total width: 4,500 mm, total length: 8,900 mm, rotational speed (max.): 4,000 rpm, workpiece weight (max.): 4,000 kg, overall weight: 24,000 kg, FIBRO indexing rotary table 800 mm Closed covered machine with doors for easy acces Indexing head 2.5 x 2.5 Degrees Automatic lubrication Knodpfx Akezl Afdjwsb Double chain chip conveyor Under power 1e owner machine X - Travel: 3500mm Y - Travel: 1200mm Z - Travel: 1400mm Table Length: 3860mm Table Width: 1200mm Table load: 4000 Table Ø: 800mm Feed rate X-Axis: 20000mm/min. Feed rate Y-Axis: 20000mm/min. Feed rate Z-Axis: 20000mm/min. Spindle Taper: 50ISO/Bt/Mk Power on spindle: 30kW Speeds / ranges: 4000Rpm ATC / revolver: 30 Number of controlled axis:3 + 1 Chip conveyor: Yes Coolantsystem: Yes Length: 8900mm Width: 4500mm Height: 3640mm Weight: 24000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Year of construction: 1990, spindle diameter 150 mm x-travel 4000 mm y-travel 3000 mm z-travel 1000 mm w-travel 1500 mm Table area 2000x2000 mm Table load 30 t Feed 3-3500 mm/min Rapid movement 5000 mm/min transmission ratio 2 spindle power 37 kW voltage 380 V frequency 50 Hz Control Heidenhain Knedpjyqtf Tefx Akwsb type ITNC mm The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team
