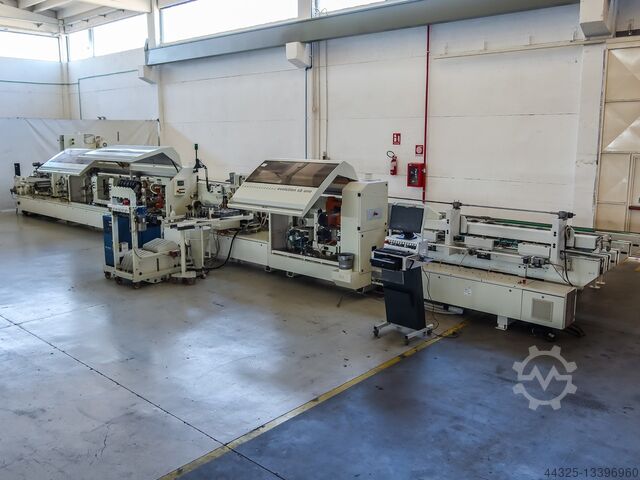

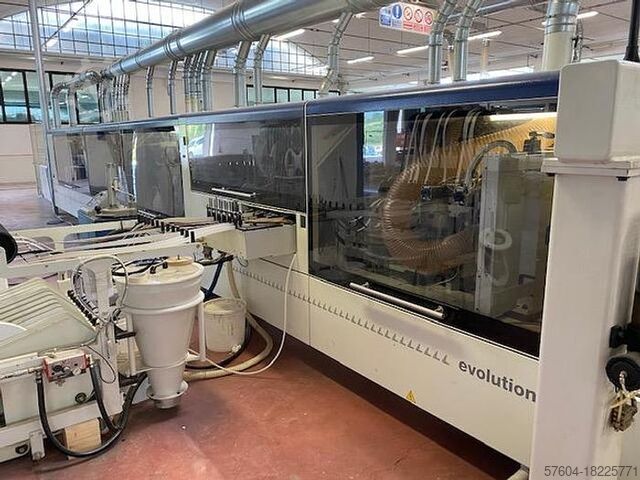

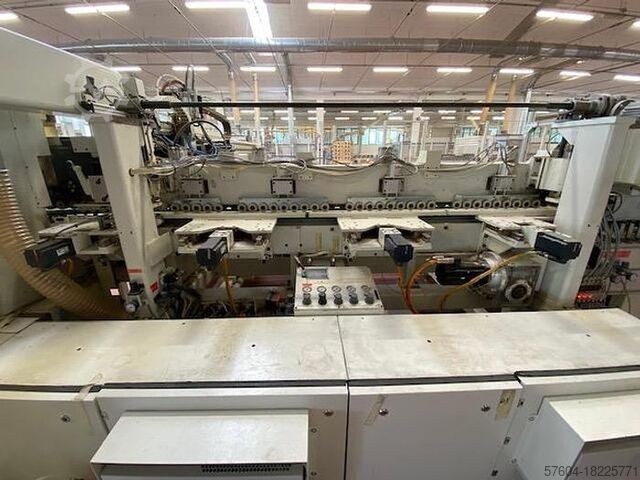

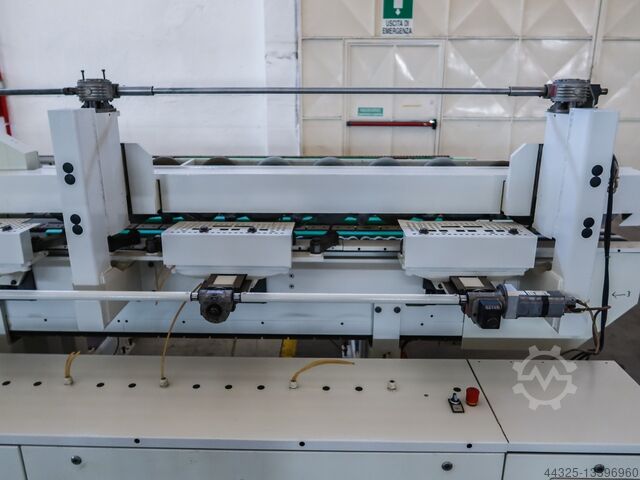

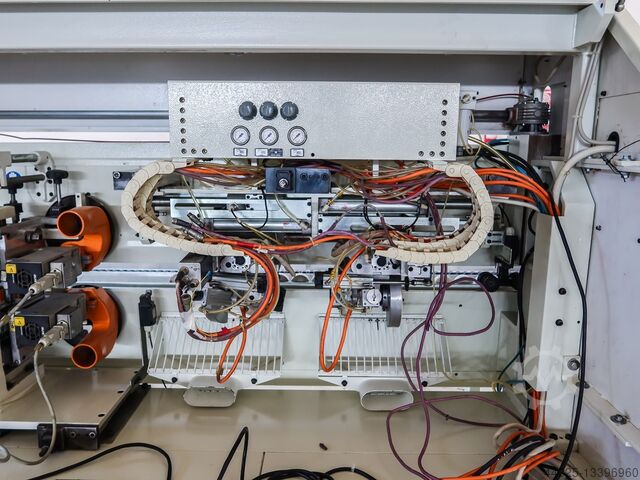

Stefani Evolution SB One

Stefani Evolution SB One

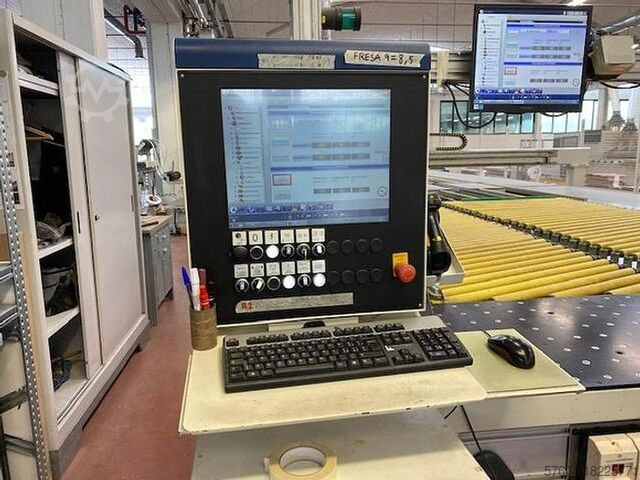

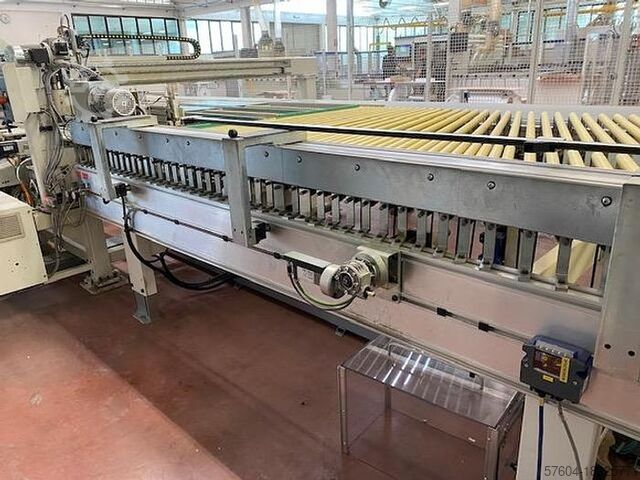

Lot 1 squaring-edging line composed as follows: 1) "Easy Order" automatic feeder for longitudinal and transversal passage of panels * Automatic adjustment of the stops according to the size of the panel * Number of cycles / minute from 10 to 14 depending on the type of passage and size of the panel. The number of cycles / minute is minimal in the case in which panels with always different dimensions are worked * Workable dimensions for longitudinal passage: min 250 x 130 max 3000 x 1200 * Workable dimensions for cross passage: min 130 x 250 max 1200 x 3000 * Maximum panel weight: Kg 70 * Brushless motors 2) External milling machine for customized processing * Device for milling and removing material on the non-edged side of the panel * Ready for "Eco Power Pack" * N ° 1 motor 6,5Kw - 12000 rpm with vertical rotation axis * Pneumatic automatic vertical exclusion * Automatic lubrication of the guides 3) Bridge system for customized longitudinal and transversal machining * Automatic movement of the main guide on linear guides with Brusless motor * Automatic vertical exclusion of the main guide * Automatic lubrication of the guides * Max opening 3000 mm 4) "Watch" line supervisor with automation for handling and returning the panel to the operator * Numerical Control with PC Office Software with Windows 7 operating system * Barcode reader * Tele diagnosis * Supervision and control software for quick and easy management of the main functions of the squaring machine. * Realistic and descriptive interface that allows you to monitor the time and status of the squaring-edgebander. * Unlimited number of programs * Possibility of extrapolation of production reports 5) Manual loading station with automatic recognition of the size of the panels * N ° 3 air curtain benches (dim. 640 x 1600 mm each) for the positioning of the panels with roller conveyor for the progress of the same * Inclined and motorized introduction roller conveyor (dim. 2600 x 3200 mm) for the alignment of the panels on the guide principal * Main guide controlled by C.N. for alignment to the work line. * Barcode reader for automatic recognition of the dimensions of the introduced panel 6) Panel turner * Roller conveyor with 6 + 6 motorized rollers * Double plane group for rotation * Fully automatic motorized rotation controlled by encoder with adjustment by C.N. * Motorized roller conveyor at the exit of the squaring-edgebander 7) 90 ° translation station * N ° 2 transfers with rollers and belts (dim.1440 x 3200 mm and 1600 x 3200 mm) 8) 90 ° translation station * N ° 2 transfers with rollers and belts (dim.1440 x 3200 mm and 1600 x 3200 mm) 9) Rotation station for panels with a width greater than 1300mm * N ° 1 roller conveyor (dim.1280 x 2700 mm) 10) Transfer with 3 belt conveyors 11) 90 ° final translation station * N ° 1 transfer with rollers and belts (dim.1440 x 3200 mm) * N ° 1 transfer with rollers and belts (dim.1100 x 3200 mm) 12) Stefani Evolution SB One squad-edging machine * Numerical Control with PC Office Software with Windows operating system * DVD player * Tele diagnosis * Bar code reader with radiofrequency keyboard (with the possibility to customize the reading software and data entry) * Panel height 60 mm * Minimum panel width 90 mm * Maximum panel width 1600 mm * Variable feed speed 10 - 40 mt / min * Working height electronically adjustable by C.N. * AA anti-adhesive group * Double shredder group with electronic positioning Kw 5.8 + 5.8 * Rectifier unit wi...
