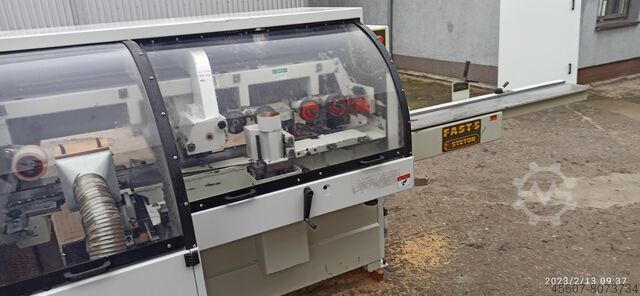

Steton 5-head four-sided planer.

Steton 5-head four-sided planer. FAM /5

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, working width: 230 mm, spindle diameter: 40 mm, working height: 120 mm, number of spindles: 6, Four-side planer and moulder Manufactured by Weinig Type: Hydromat 23C Laedov T R A Dspfx Ah Aei Year of manufacture: 2005 Working width: 230 mm Working height: 120 mm 6 spindles Spindle arrangement: bottom/right/left/top/top/bottom Spindle motors: 7.5 kW each Automatic table lubrication Automatic Memory System control system Spindle diameter: 40 mm Spindles with bearings on both sides The last two heads are equipped with jointers

Condition: excellent (used), Four side planer scm compact xl - planing width 23cm - planing height 13cm Lsdpslat Hdefx Ah Aeai -electric lifting of the upper head and feed rollers - all spindles adjustable vertically and horizontally - bottom 4kW, right and left from one motor 7.5kw kW, upper 5.5kw universal 5.5kw Machine in very good condition

Condition: excellent (used), Catalogue number 6368 TECHNICAL SPECIFICATIONS - Maximum workpiece width: 230 mm - Maximum workpiece height: 130 mm 7 spindles: 1) bottom horizontal, 230 mm, 5.5 kW 2) right vertical, 130 mm, 5.5 kW Laedpfxjhfl T Ij Ah Aoi 3) left vertical, 130 mm, 5.5 kW 4) top horizontal, 230 mm, 7.5 kW 5) top horizontal, 230 mm, 11 kW 6) bottom horizontal, 230 mm, 18.5 kW 7) universal, 230 mm, adjustable 360°, 5.5 kW - all spindles adjustable up/down, right/left - all spindles equipped with electric brake - spindle diameter: 40 mm - spindles 4 and 5 adjustable electrically up/down - top: 8 metal feed rollers, twisted, including 2 double rollers - top: 4 rubber outfeed rollers - top: 2 hold-downs - bottom: pawls - bottom side: 3 hold-downs - bottom: 2 smooth metal feed rollers - bottom: 2 double rubber feed rollers - rollers pneumatically loaded - feed via Kardana shafts - stepless feed speed adjustment 5–36 m/min - feed motor 4 kW - electric thickness adjustment 0.75 kW - infeed table length: 1980 mm - fully enclosed in soundproof cabin - central lubrication for the table - extraction port diameters: 5x120 mm, 2x150 mm - dimensions (L/W/H): 5500 x 1840 x 1900 mm - weight approx. 5000 kg ADVANTAGES – Italian manufacture – 7-head configuration – suitable for wet and dry wood – universal final spindle – unpainted – used four-side planer, in very good condition Net price: 146,900 PLN Net price: 34,970 EUR, depending on exchange rate 4.2 EUR (Prices may vary in case of higher fluctuations)

Condition: good (used), Year of construction: 1979, functionality: fully functional, Four-sided planer / moulder Unimat 22N, 7 spindles Year of manufacture 1979 S/N 286512746 Manufacturer Weinig Germany planing width 220mm Planing height 120 mm 7 planer shanks: planing table length 2000mm Spindle arrangement (speed of the working spindles 6000 rpm) 1. bottom, 4 kW 2. left, 5,5kW 3. right, 7.5 kW 4. left, 4 kW 5. top, 7.5 kW 6. bottom, 7.5 kW 7. bottom, 4.0 kW 5, 6, 7 with counter bearing 3 rollers in the table (not driven) spindle diameter 40 mm Flying circle of the dressing spindle 125mm Flying circle of the dressing spindle 100-180mm Largest flying circle of the milling spindles 180mm Cardanic feed Feed infinitely variable (frequency converter) Lasdpjt Eu Htofx Ah Aoi 6-36 m /min. Manual Waxilit pump External dimensions L 4500 mm x W 1600 mm x 1700mm 4500 kg with 7 planer/knife heads included

Condition: reconditioned (used), functionality: fully functional, Refurbished four-sided planer from SCM GROUP. Its simple and robust construction ensures long-lasting durability and machine performance. The rigid steel base guarantees machining accuracy and quality. The machine is designed for larger production facilities for manufacturing shaped and straight profiles. - 5 working spindles: bottom, right, left, top, and bottom - Automatic central lubrication of the worktable - Variable feed speed via variator - Proven machine with a six-month warranty - Excellent technical condition - Supplied with tooling Technical specifications: Working width (finished profile thickness) min/max: 25 / 230 mm Working height (finished profile thickness) min/max: 6 / 120 mm Table length: 2000 mm 1st spindle (bottom): approx. 5 kW Right and left spindles: approx. 7 kW 4th spindle (top): approx. 7 kW 5th spindle (bottom): approx. 5 kW Tool RPM: 6,000 rpm Feed speed: stepless, 4–24 m/min Lsdpfxevxtzao Ah Asai Feed motor: 4 kW Weight: approx. 3,000 kg The machine is refurbished, adjusted, and tested. Price of 12,000 EUR is valid only in November; afterwards, the price reverts to the original 13,370 EUR.
