Horizontal bending machine

Stierli-Bieger 120 CNC (12 to)

Condition: new, Year of construction: 2025, machine/vehicle number: 1018, THE POWERFUL BENDING MACHINE FOR EXTREME USE: The compact bending machine enables precise and repeatable bending up to an outer diameter of 100 mm stationary and directly at the assembly site. Transport is possible with lift trucks or the optional rollers. A powerful three-phase motor and a precision gearbox provide a powerful drive. The machine convinces with its compact and slim design as well as the very free bending range. Optimum bending accuracy is achieved by position detection directly on the bending axis. The bending angle is set easily and quickly via a convenient and menu-driven user interface in 14 languages with touchscreen control, which guarantees even more intuitive operation. For more complex bending tasks, 100 bending programs can be stored, with an angle sequence of max. 8 bends per geometry. The multifunction control allows variable adjustment of the bending speed for forward and backward travel, and a parameterizable overbending function is provided to compensate for material springback.With the help of the four material characteristics, the material is automatically overbent to the required bending angle, thus realizing an exact bending result. The principle of "stationary tube and rotating tool" ensures low space requirements during bending. Sliding shoes are used for thin-walled tubes to achieve a wrinkle-free bending result and to bend bends with minimal deformations from e.g. stainless steel and copper tubes. With the profile bending attachment PB20 flat, square and round bars can be bent without any problems. Extremely small bending radii are made possible with the KBV small bending attachment. POSSIBLE AREAS OF APPLICATION: - Plant engineering - Hydraulic piping - Meander bending - prototyping - Sanitary and heating engineering - shipbuilding TECHNICAL DATA 10000: Bending capacity: up to 100 x 5 mm, 55 mm solid material three-phase current 400 V - Bending radius up to 500 mm - Multifunctional machine control Bending angle adjustment (0,1°) - Maximum bending angle 240 - Safety foot switch with emergency stop - Weight 600 kg OPTIONAL ACCESSORIES: - Adapter system for tools from model series 3000/6000 Hjdpsndk N Asfx Anpop with bending radius from 45 mm, incl. hexagonal shaft 40 mm - Profile bender PB20 - for bending flat and square bars up to max. 100 x 10 mm, round bars up to max. 20 mm - Small bending device KBV - Special tools according to specification - Software adaptations for special tasks OUR SERVICE: - Welcome to the test production in our house in the demo room - Consultation and information meeting at your site - Consultation and handling as leasing/financing-purchase via the company JUTEC - Service contracts, maintenance at your site

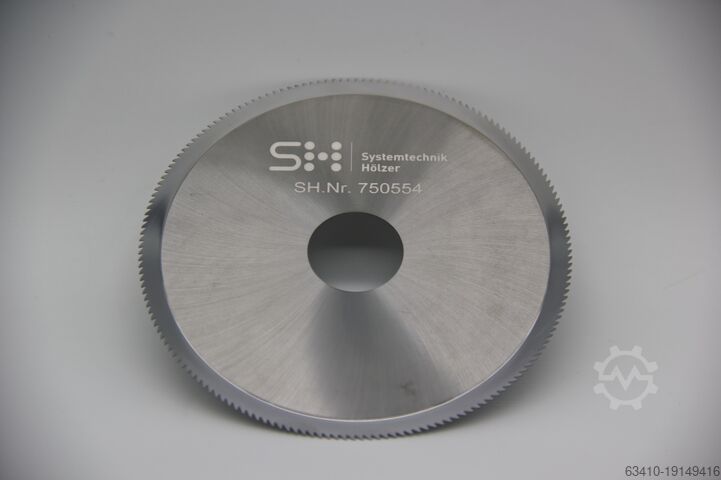

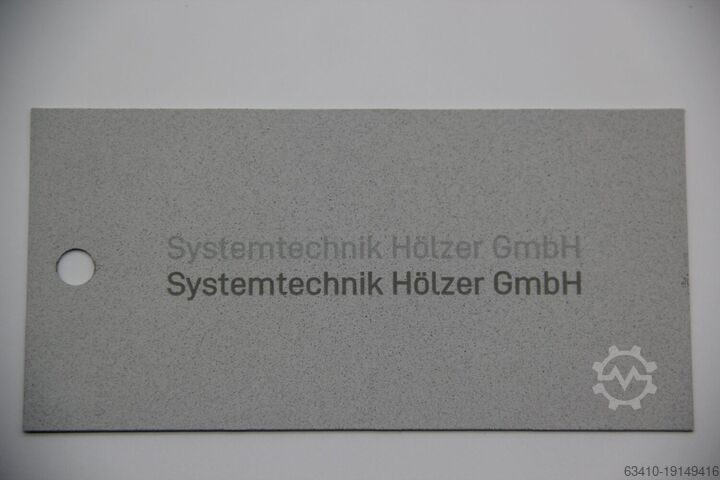

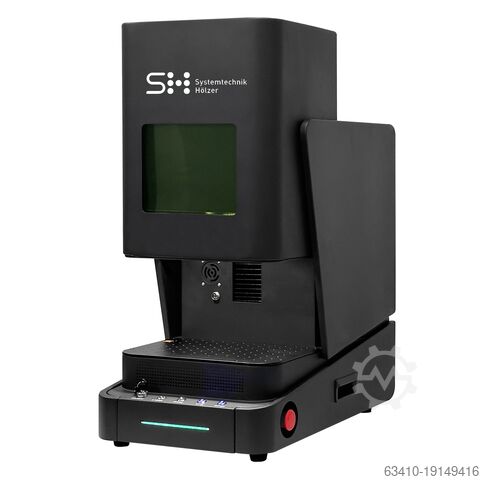

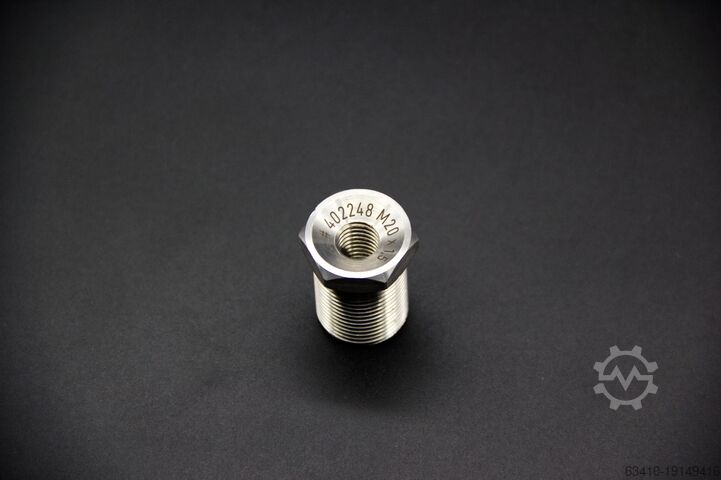

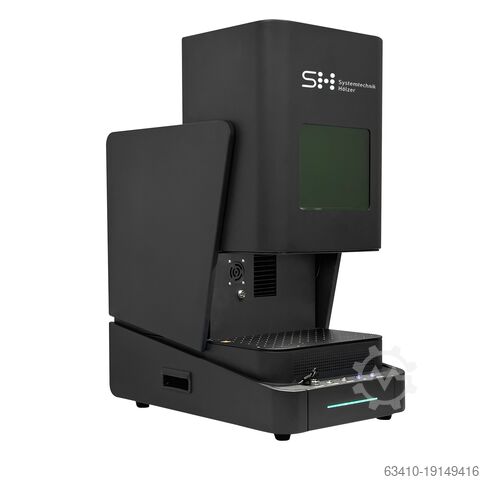

Year of construction: 2026, condition: new, functionality: fully functional, overall weight: 45 kg, input voltage: 230 V, input frequency: 50 Hz, laser power: 30 W, laser wavelength: 1,064 nm, scan area length: 110 mm, scan area width: 110 mm, type of cooling: air, type of input current: AC, laser type: fiber laser, The LAS 22 is a compact tabletop unit with a small working area, ideally suited for small parts. Due to its small size, the unit is very practical and can be used anywhere. The device is very easy to operate without programming knowledge. With the powerful laser software, texts, numbers, 2D codes, QR codes and logos can be realized with just a few clicks and without extensive programming knowledge. Serial and item numbers are automatically incremented by the software after prior setting. In addition, the software can read data (variable information such as drawing numbers, project designations, etc.) from existing tables and automatically transfer them to predefined areas. The use of a handheld scanner is also possible. Hodpjwkpxkjfx Anpep The standard equipment includes a laptop with Windows operating system and laser software. Optionally, the laser model LAS 22 can be equipped with a rotary axis (3-jaw chuck) for marking cylindrical parts. - Fiber laser 30 Watt (Optional: 20 Watt) - Laser class 1 - Wavelength 1064nm - Marking field size 110 x110mm - marking software EZCAD in German / English - Pilot laser (simple preview/contour) - Focus finder (simple focusing) - Max. Component height approx. 95 mm - Grid holes for fixtures - Clamping area 310x190mm - Electrically adjustable Z-axis - Electric door with pinch protection - optional: exhaust system (incl. activated carbon filter) - Welded steel plate construction - Connection 230V - Air cooled - Laptop with Windows operating system (German or English) - dimensions: LBH 600x 400x 690 mm - weight: approx. 45 Kg - low operating costs - marking of various materials

Year of construction: 2022, condition: ready for operation (used), A fully automatic horizontal tunnel stretch wrapper Bang & Co for securing products on corrugated cardboard blanks is available. Turntable speed: 100rpm, max. conveyor speed: 18m/min, carton width range: 70mm-650mm, min. product length: 200mm, max. spool diameter: 140mm, max. spool height: 125mm, film roll inner diameter: 38mm, film thickness range: 18µm-40µm. Machine dimensions X/Y/Z: approx. 1600mm/1250mm/1650mm, weight: approx. 500kg, operating hours: approx. 6851h. Dokumentation vorhanden. An on-site inspection is possible. Hsdpfx Aexwyvqjnpjp

Year of construction: 1990, condition: ready for operation (used), Used for the horizontal winding of profiles, includes control cabinet with main switch of the system, infeed roller conveyor with movable side stop, pneumatically operated lifting device, control panel with emergency stop button, winding unit with height adjustment, outfeed roller conveyor. Connected load: 2.5kW, length: 16,060mm, width: 2485mm, height: 1900mm. With documentation, on-site inspection is possible. Hjdpfxjwbpy Ns Anpop
