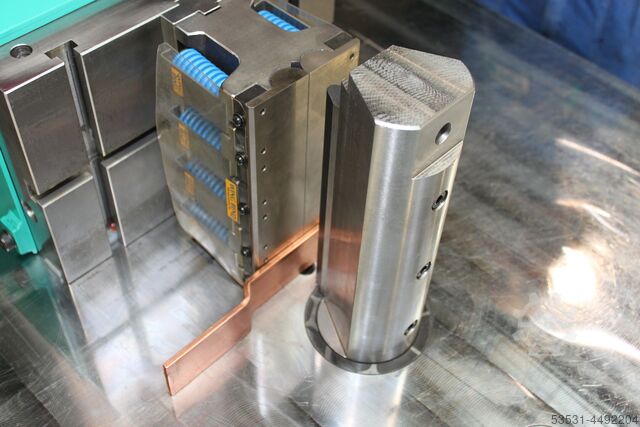

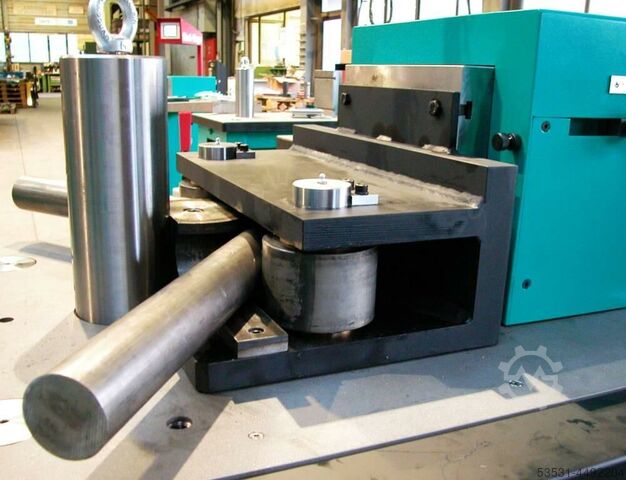

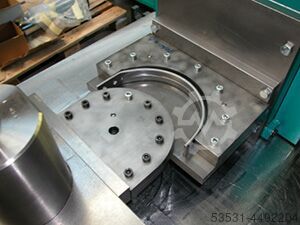

Straightening- and bending press

Stierli-Bieger 420 HE (42 to)

Condition: new, Year of construction: 2025, machine/vehicle number: 1018, THE POWERFUL BENDING MACHINE FOR EXTREME USE: The compact bending machine enables precise and repeatable bending up to an outer diameter of 100 mm stationary and directly at the assembly site. Transport is possible with lift trucks or the optional rollers. A powerful three-phase motor and a precision gearbox provide a powerful drive. The machine convinces with its compact and slim design as well as the very free bending range. Optimum bending accuracy is achieved by position detection directly on the bending axis. The bending angle is set easily and quickly via a convenient and menu-driven user interface in 14 languages with touchscreen control, which guarantees even more intuitive operation. For more complex bending tasks, 100 bending programs can be stored, with an angle sequence of max. 8 bends per geometry. The multifunction control allows variable adjustment of the bending speed for forward and backward travel, and a parameterizable overbending function is provided to compensate for material springback.With the help of the four material characteristics, the material is automatically overbent to the required bending angle, thus realizing an exact bending result. The principle of "stationary tube and rotating tool" ensures low space requirements during bending. Sliding shoes are used for thin-walled tubes to achieve a wrinkle-free bending result and to bend bends with minimal deformations from e.g. stainless steel and copper tubes. With the profile bending attachment PB20 flat, square and round bars can be bent without any problems. Extremely small bending radii are made possible with the KBV small bending attachment. POSSIBLE AREAS OF APPLICATION: - Plant engineering - Hydraulic piping - Meander bending - prototyping - Sanitary and heating engineering - shipbuilding TECHNICAL DATA 10000: Bending capacity: up to 100 x 5 mm, 55 mm solid material three-phase current 400 V - Bending radius up to 500 mm - Multifunctional machine control Bending angle adjustment (0,1°) - Maximum bending angle 240 - Safety foot switch with emergency stop - Weight 600 kg OPTIONAL ACCESSORIES: - Adapter system for tools from model series 3000/6000 Blodpfx Aendk N Aolzsp with bending radius from 45 mm, incl. hexagonal shaft 40 mm - Profile bender PB20 - for bending flat and square bars up to max. 100 x 10 mm, round bars up to max. 20 mm - Small bending device KBV - Special tools according to specification - Software adaptations for special tasks OUR SERVICE: - Welcome to the test production in our house in the demo room - Consultation and information meeting at your site - Consultation and handling as leasing/financing-purchase via the company JUTEC - Service contracts, maintenance at your site

Condition: new, Tubend Horizontal Bending Machine HP 40 Pressure: 40t Stroke: 300mm Max. tool height: 250mm Bsdpfx Aei Elunolzelp Flat bar, over the high edge: 200 x 24mm Flat bar, over the high edge: 250 x 16mm Working speed: 10.0mm/sec Return speed: 10.0mm/sec Table: 600 x 1200mm Total power consumption: 4 kW Motor: 400 Volt 50Hz Weight: 1190 kg Dimensions L-W-H: 1250 x 650 x 1300mm Approximate oil capacity: 40.0l Features: Hydraulic horizontal bending machine Solid work surface made of stabilized steel Machine made of hardened and ground forged steel NC touch screen control 1 x tool set Dual foot switch

Condition: new, square edge steel 20x20 / 25x25 mm flat steel 100 x 7.0 mm round bar steel 22.0 / 27.0 mm L-beam 100 x 10 mm weight of the machine ca. 33.0 kg. range L-W-H 900 x 430 x 310 mm Features - For precise cold and hot bending of flat, round and square steels - Sturdy design for bolting to the workbench - Infinitely adjustable bending stop - With eccentric quick clamping for efficient working - Readable bending angle up to 120 - High repeat accuracy thanks to bending angle stop - Ideal for repair workshops and locksmiths - - - - - Bending performance "cold" : Flat steel 100 x 7 mm 65 x 12 mm Bedjxcuyhepfx Alzslp Round steel 22.0 mm Square steel 20 x 20 mm Angle steel 100 x 10 mm - - - - - Bending capacity "hot" : Flat steel 100 x 15 mm 75 x 20 mm Round steel 27.0 mm Square steel 25 x 25 mm Angle steel 100 x 15 mm - - - - - Scope of delivery - Bending plate - Angle stop stepless - Clamping block with eccentric clamp - Material stop
